7. OPERATION
6 7 - P/N 0112478

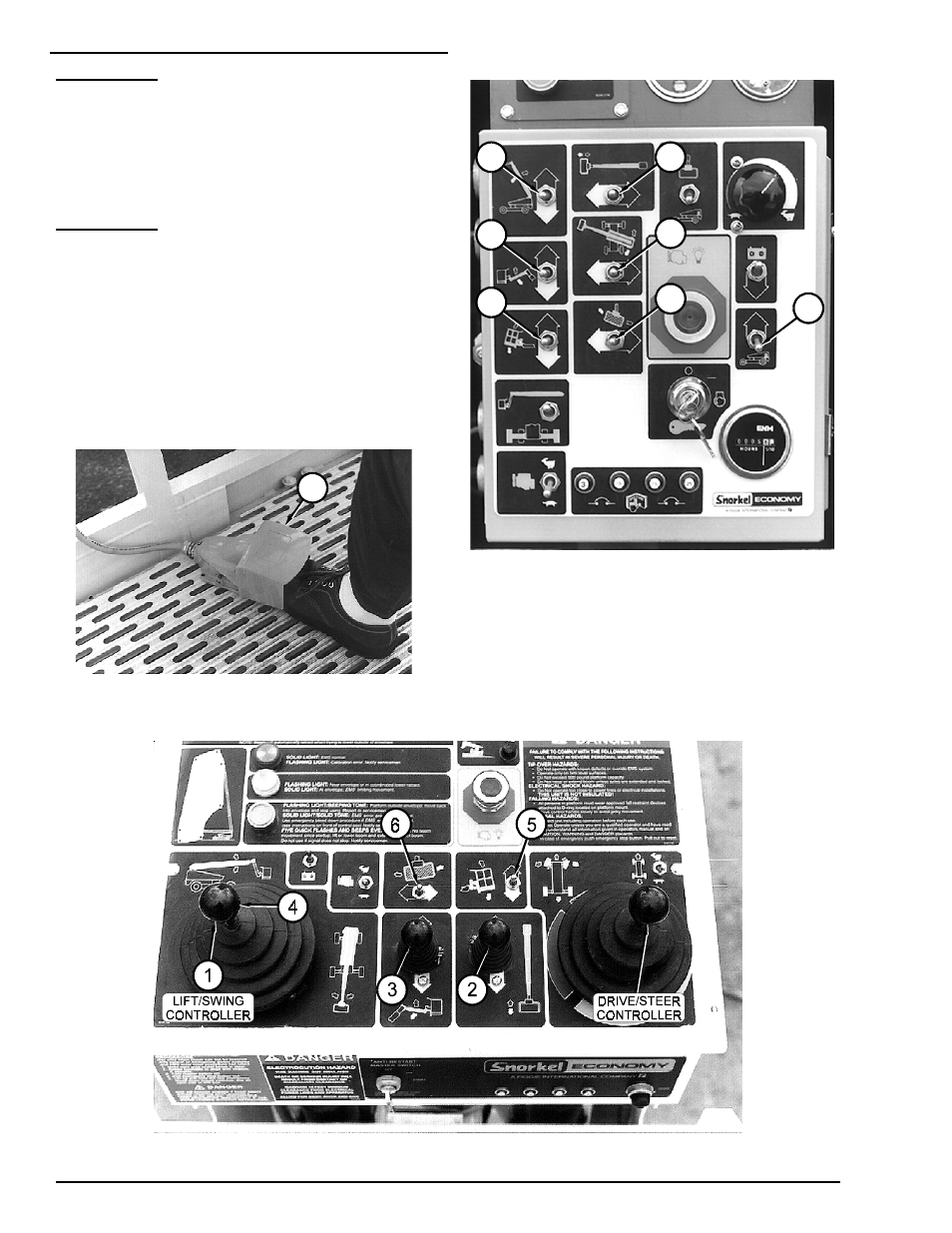

IMPORTANT (ground-control box operation):
You must hold the GROUND OPERATION
switch (7) up when you use any of the platform-
moving switches (1 through 6) to move the
platform. This is a safety feature to prevent the
platform from moving if a single platform-moving
switch is accidentally pushed.
IMPORTANT (platform-control box
operation): You must be stepping on the foot
switch (8) when you use any of the platform-
moving switches (1 through 6) to move the
platform. Also, you must be stepping on the foot
switch to use either the LIFT/SWING controller or
the DRIVE/STEER controller. The foot switch is a
safety feature to prevent the platform from
moving if a single platform-moving switch or
controller is accidentally pushed.
FOOT SWITCH
8
GROUND-CONTROL BOX
1
3
5
2
4
6
7
PLATFORM-CONTROL BOX
