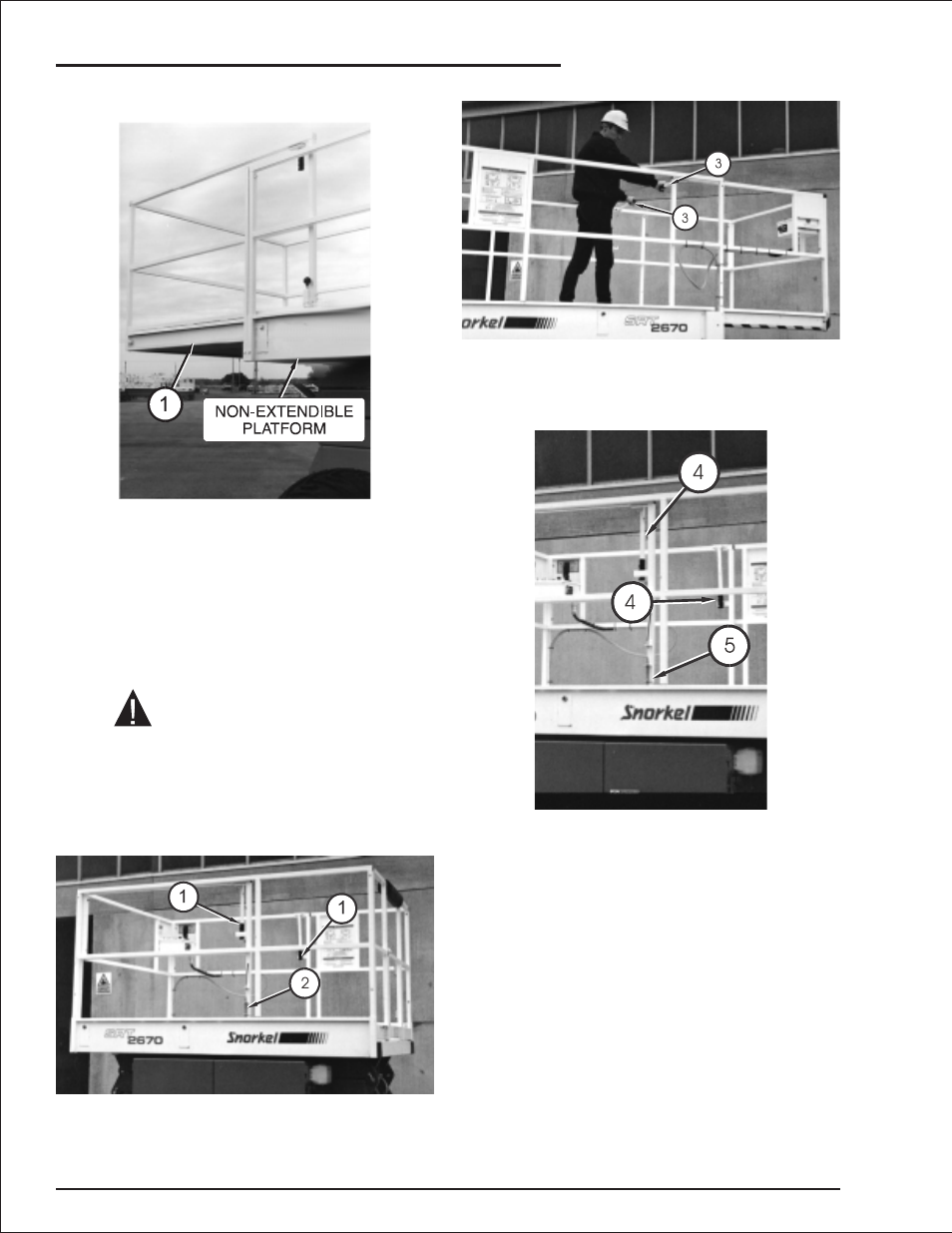

■ Extending The Multi-Position Platform
The MULTI-position extendible platform (1) can be
securely locked into seven different positions. To
move it from one position to the other do the follow-
ing:
1. Stand on the non-extendible part of the
platform and face the front of the
machine.
The distribution of the RATED WORK LOAD
changes when the extendible platform is
extended. Read the decal on the toe board at
the front of the platform or at the entrance to
the platform for safe weight distribution.
2. Lift up the deck extension handles (1) to
unlock the deck pin (2).
3. Push or pull the deck extension handles
(3) to move the platform to the desired
position.
4. Lower the deck extension handles (4) and
allow the lock pin (5) to locate.
