11. Lift Indicator Light The platform can be
raised only when this light is lit. When this
light is not lit the platform will not rise
because: the platform is not level, or the
outriggers are not properly set.
12. Outriggers Each switch corresponds to
one of the outriggers. Pull a switch
backward to lower an outrigger, push it
forward to raise the outrigger.
13. Drive Indicator Light The platform can be
driven when this light is lit. When it is not lit
the platform will not drive because with the
platform raised the base is not level or with
the platform raised the axle switches are not
set.
SRT2670 – 11360A page 6 - 5
6. Controls

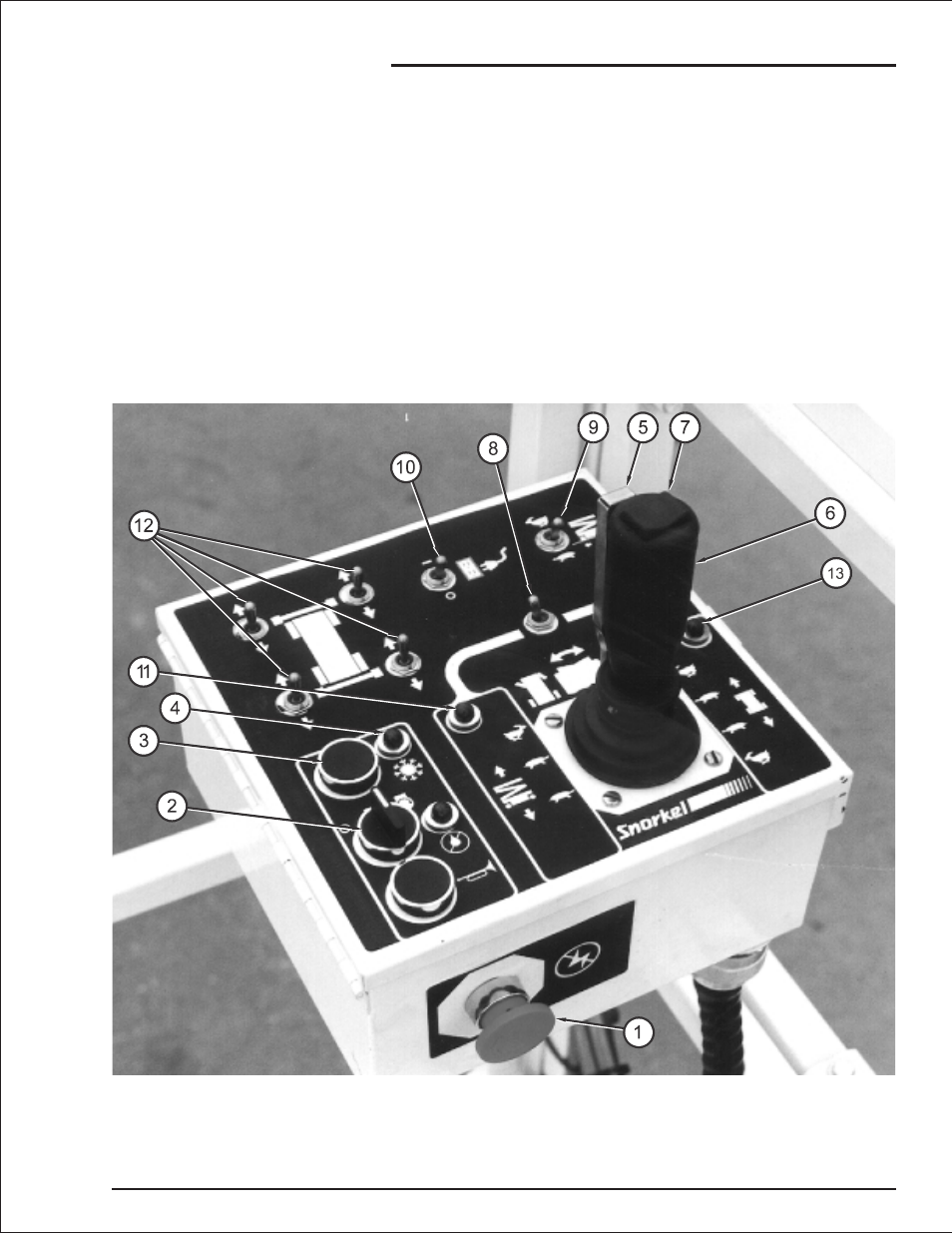

❑ Platform control box controls
