Transfer Carriage

11-10

944E-42

11.3.4

Rear Wear Pad Shimming

Note: The attachment should remain attached to the
quick attach for this procedure.

1. Park the machine on a firm, level surface, level the

machine, fully extend the boom with the attachment
being slightly off the ground, place the transmission
control lever in (N) NEUTRAL, engage the park
brake and shut the engine OFF.

2. Leave the transfer carriage completely retracted.

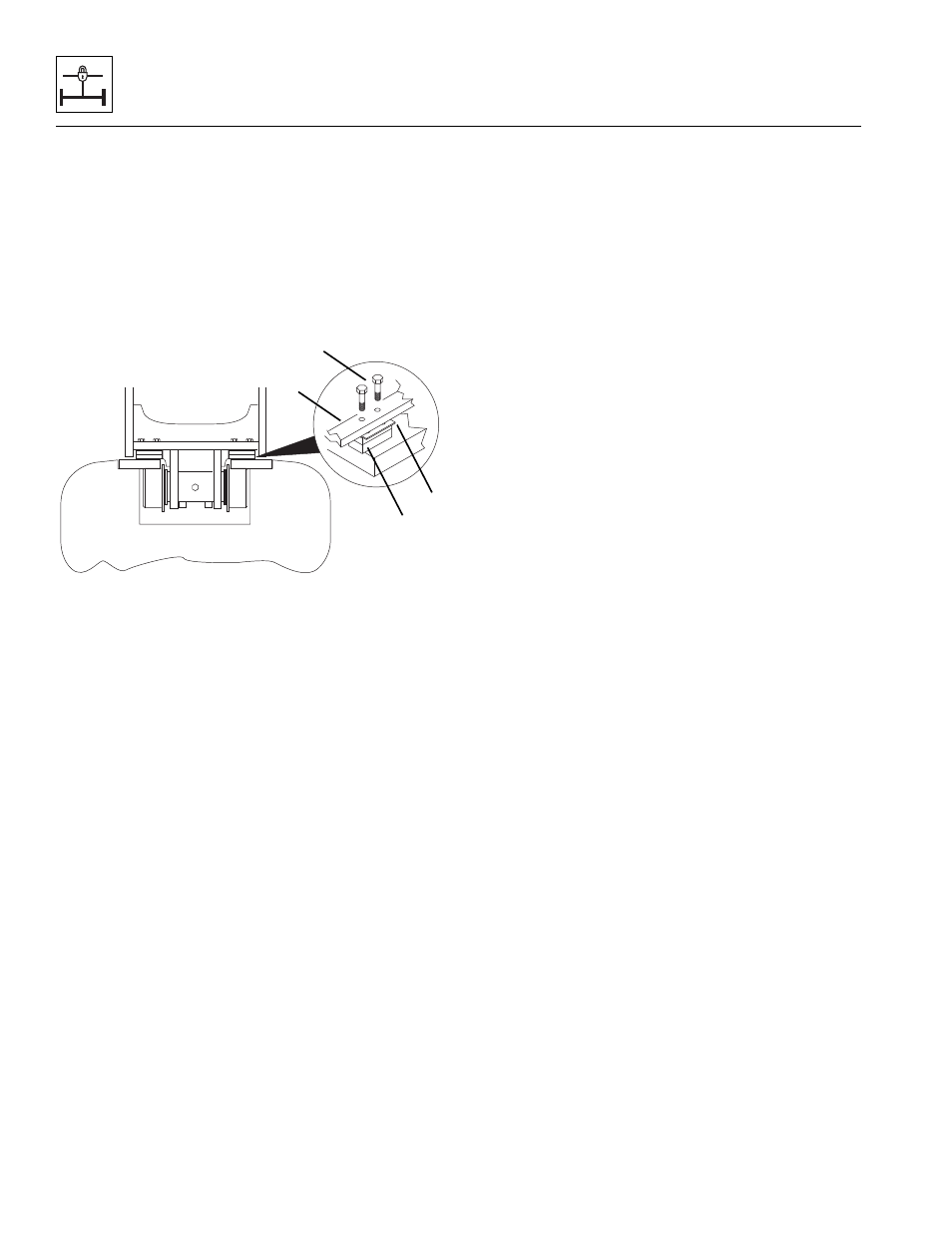

3. Remove the two capscrews (1) holding each wear

pad and shims to the transfer carriage (2).

4. Add the required shims (3) between the wear pad (4)

and the transfer carriage (2).

5. Coat the capscrews (1) with Loctite

242 (blue).

Secure in place with the two capscrews (1). Torque
capscrews to, 28 - 49 lb-ft (38 - 67 Nm).

11.3.5

Rear Wear Pad Replacement
