Transfer Carriage
11-6
944E-42

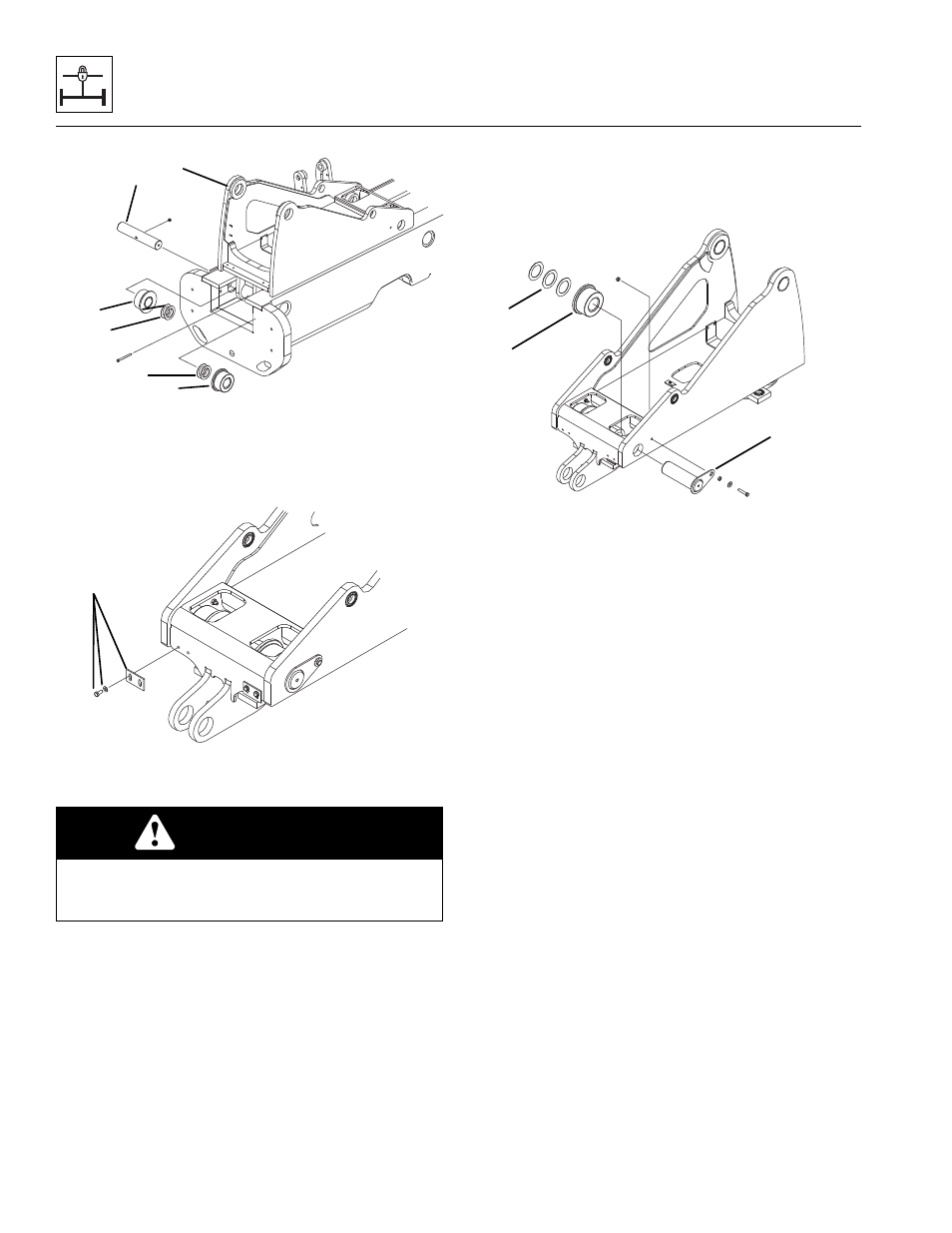

26. Remove pin bolt and locknut from rear roller pin (1).
Slide the roller pin out and remove the rear rollers (2)
and shims (3) from both sides of the transfer
carriage (4). Count and label the rear rollers and
shims for later replacement.
27. Remove capscrews, washers and scrapers (5) from
the transfer carriage.
28. Lift and slide the transfer carriage out the back of the
frame. Lower and place the transfer carriage onto
support jacks, capable of supporting the weight of
the transfer carriage, on a firm level surface.
29. Remove capscrews, shims, and rear wear pads.
Count and label their position for later replacement.
30. Remove capscrews, shims, and front wear pads.
Count and label their position for later replacement.
31. Remove front roller pin (6), front roller (7) and
shims (8) from both sides of the transfer carriage.
Count and label their positions for later replacement.
32. Remove lifting straps, boom pivot pins and slave
cylinder pins.
33. Inspect transfer carriage cylinder mount, boom pivot
and slave pivot bushings. (Refer to Section 11.3.17,
“Boom Pivot Bushing Replacement.”)
34. Inspect front and rear roller bushings. (Refer to
Section 11.3.17, “Boom Pivot Bushing
Replacement.”)
35. Inspect front rollers. (Refer to Section 11.3.15, “Front
Roller and Bushing Replacement.”)
36. Inspect rear rollers. (Refer to Section 11.3.16, “Rear
Roller and Bushing Replacement.”)
37. Inspect front wear pads. (Refer to Section 11.3.6,
“Front Upstop Wear Pad Check.”)
38. Inspect rear wear pads. (Refer to Section 11.3.3,
CAUTION
To avoid equipment damage, DO NOT put the straps
through the pin holes to lift the transfer carriage.
Damage to the bushings may result.
MU1741
1
4
2
3
3
2
MU1841
5
MU1791
7
6
8
