Electrical System
9-6 944E-42
9.5 ELECTRICAL SCHEMATICS

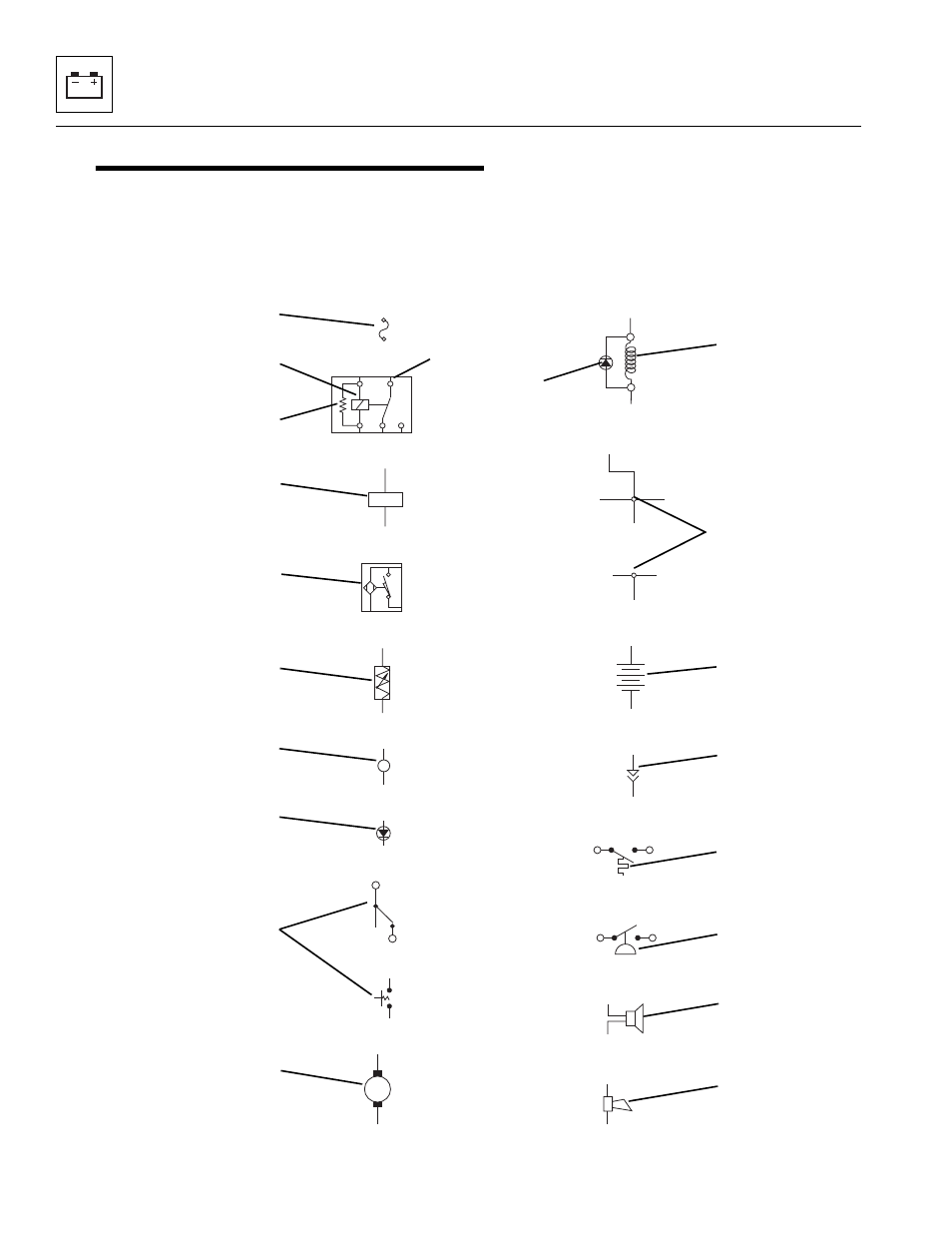

9.5.1 Electrical Symbols Directory
The following directory shows the most common
electrical symbols used in the electrical schematics and
circuit diagrams in this section.
1
M
TRG6
2
30
+
-
+
-
FUSE
RELAY CONTACTS
SUPPRESSION
DIODE
RELAY RESISTOR
RELAY COIL
SOLENOID (COIL)
WIRE NAME
PROXIMITY SWITCH
FUEL LEVEL
SENDER
SPLICE
BATTERY
IN-LINE BULKHEAD
CONNECTOR PIN
MOTOR
LAMP or SWITCH
DIODE
MOMENTARY TYPE
SWITCH
TEMPERATURE
ACTIVATED SWITCH
PRESSURE
ACTIVATED SWITCH
ALARM / BUZZER
HORN
