Lull 1044C-54 Series II Service Manual User Manual
Page 246
Boom and Transfer
6-104
31200079

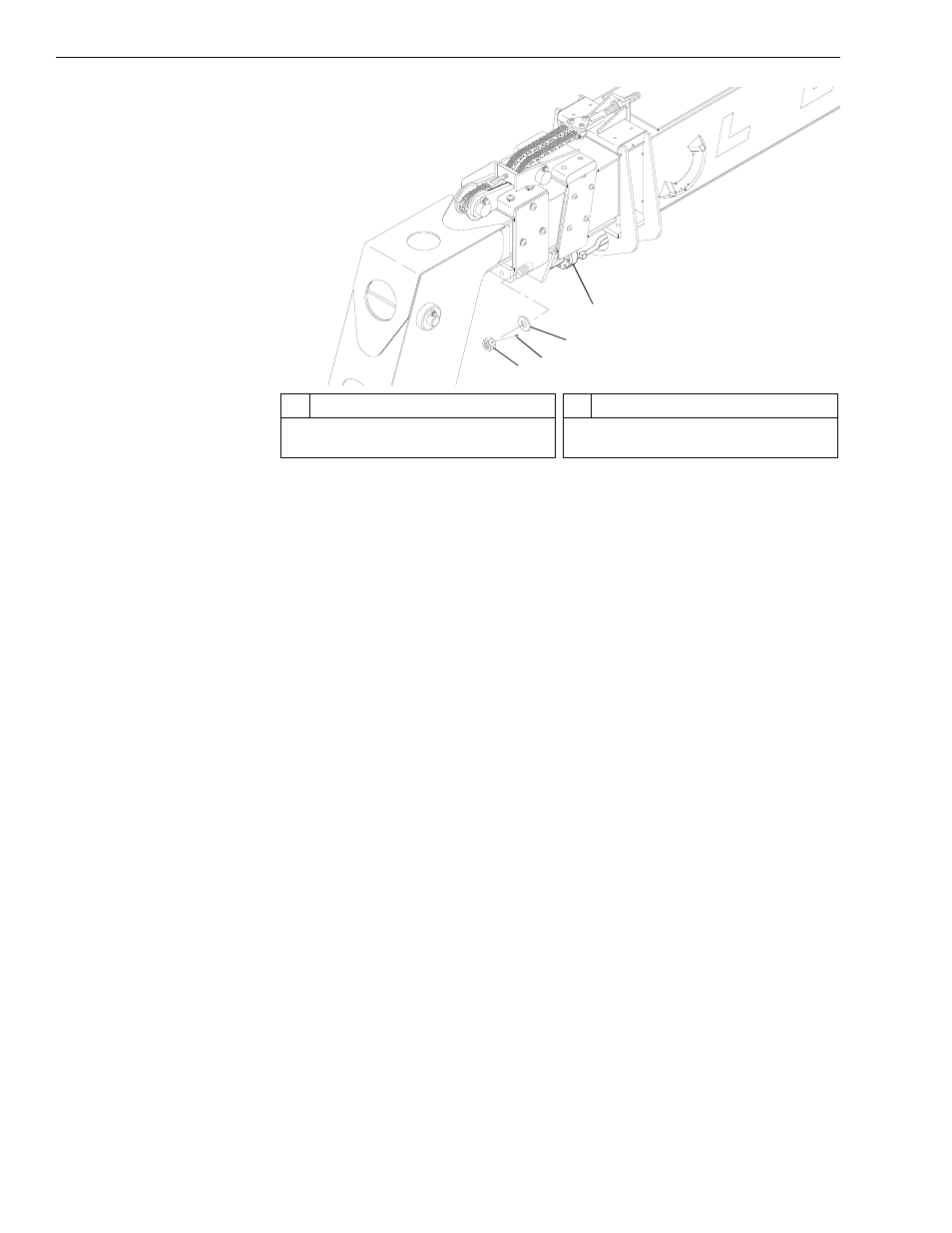

Fig. 6-113: Securing Boom Extension Cylinder
44. (Ref. Fig. 6-113) Secure extension cylinder (Item 4) to front of middle
(rear) boom section with extension cylinder rod boss (Item 3) and rod
nut (Item 1). Torque rod nut to 733 ft-lbs. Secure rod nut with two (2)
setscrews (Item 2).
0
80
60
40
20
-20
J
1253
1
2
3
4
#
Description
1
2
Setscrew
#
Description
3
Cylinder Rod Boss
4
Boom Extension Cylinder
