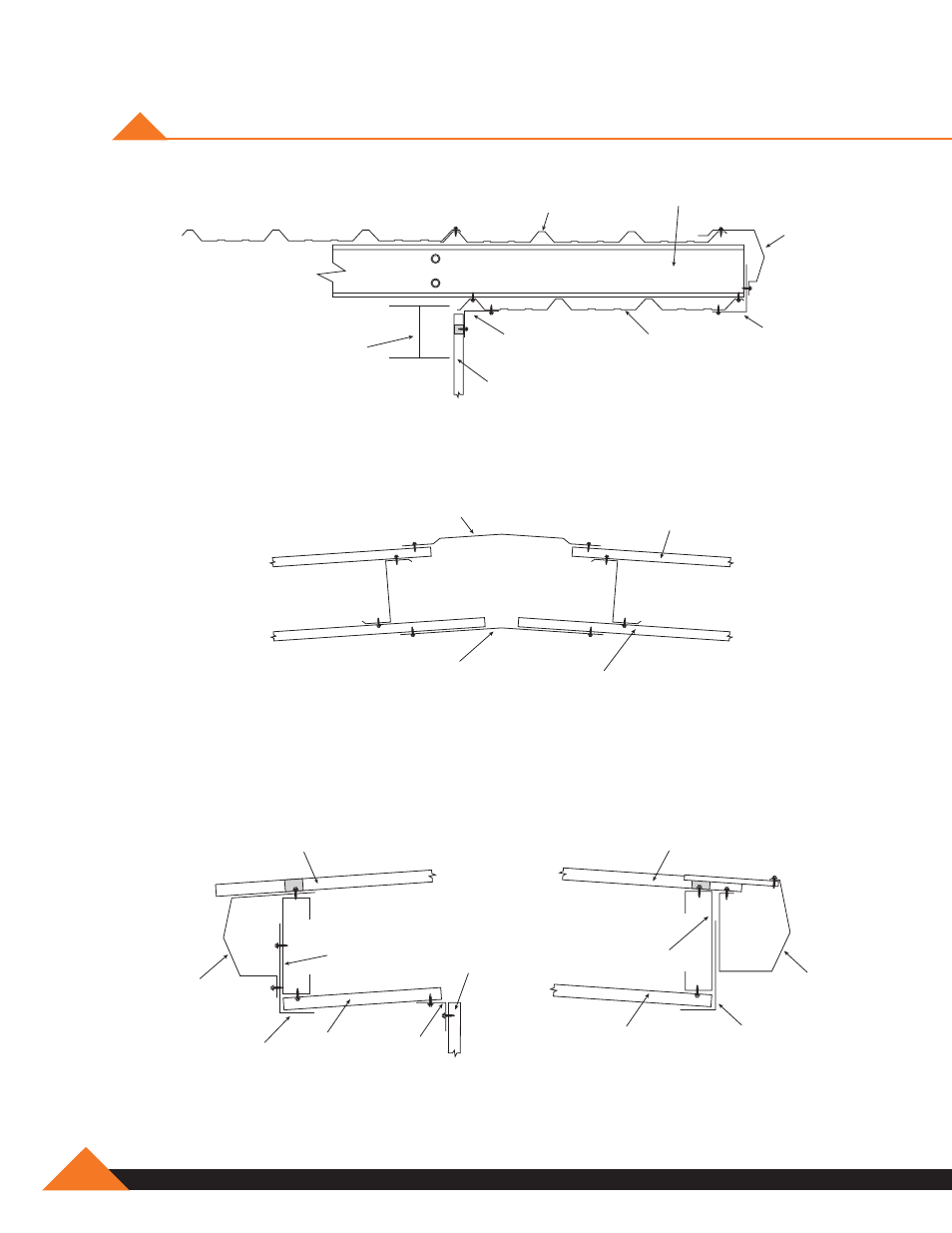

oveRHanG TRIM DeTaIls
endwall overhang
Wall Panel
Roof Panel
Rake
Trim
Angle
Flashing
Soffit
Sheet
Angle
Flashing
Purlin
Endwall
Rafter
Roof Panel
Soffit Sheet
Flashing
Ridge Roll
Wall
Panel
Roof Panel
Eave
Trim
Soffit
Sheet
Angle
Flashing
Angle
Flashing
Purlin
Roof Panel
Gutter
Angle
Flashing
Soffit
Sheet
Purlin
endwall overhang at Ridge
sidewall overhang With eave Trim sidewall overhang With Gutter
