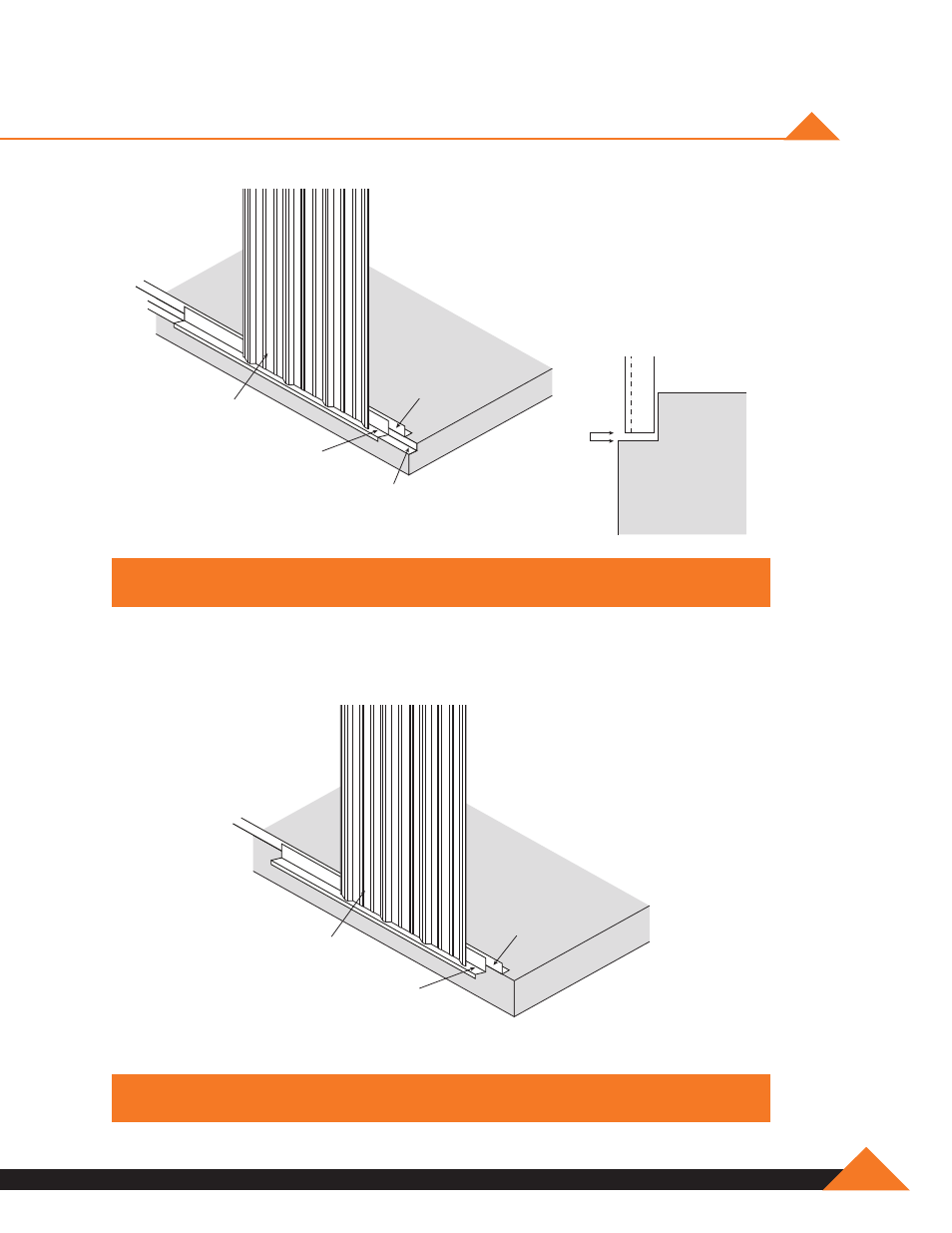

sTanDaRD sHeeT leDGe
oPTIonal sHeeT leDGe WITH eXIsTInG slab
1
1
/
2
" Sheet
Ledge
Base
Angle
Base Flashing
(Optional)
Wall Sheet
(R-Panel Shown)
1
/
8
"
Spacing under
sheet
1
/
8
" to
1
/
4
"
for edge creep
Base
Angle
Base Flashing
Wall Sheet
(R-Panel Shown)
noTe: sheets must be at least two inches off the ground, or rust may occur.
noTe: sheets must be at least two inches off the ground, or rust may occur.
