E-1

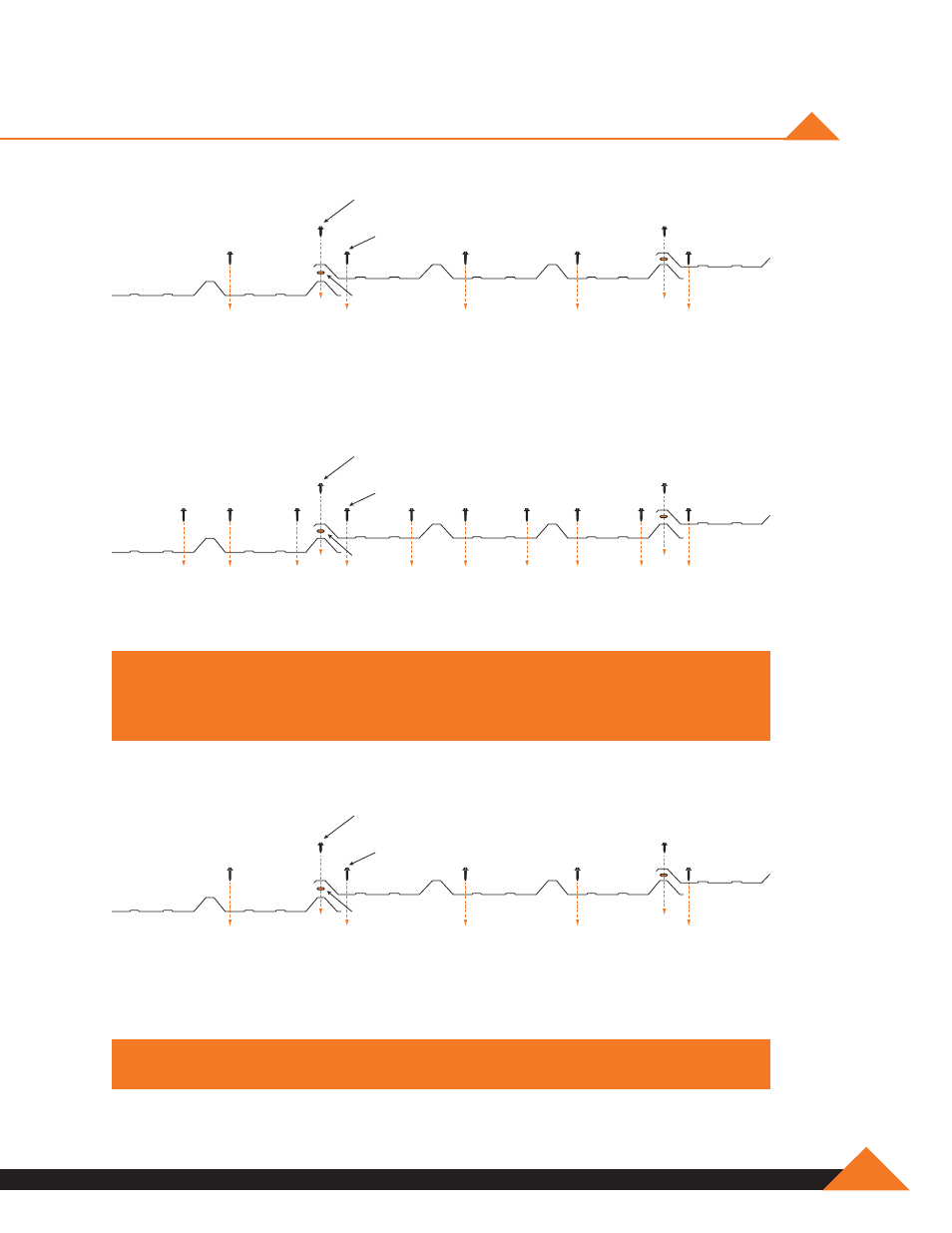

fasTeneR laYoUT
“R” and “PbR” Roof Panel fastener spacing,
Intermediate Purlins, Girts, eave strut
“R” and “PbR” Roof Panel fastener spacing, eave strut, Wall and Roof
Panel end laps, Ridge Purlin, base angle/Girt
“R” and “PbR” Wall Panel fastener spacing,
Intermediate Girts, eave strut
Lap Tek Screw
20" O.C. at sidelap
#12 Self Drill Roof Fastener
Sealant Tape
Lap Tek Screw
20" O.C. at sidelap
#12 Self Drill Roof Fastener
Sealant
Tape
Lap Tek Screw
20" O.C. at sidelap
#12 Self Drill Roof Fastener
Sealant Tape
WaRnInG! Do noT oveRDRIve fasTeneRs!
noTe: Ul 90 Uplift Rated Roofs Require fasteners at each side of High Ribs
at all Purlin on certain “Ul” construction systems and eave strut locations
(consult Your specific Requirements Prior To Installation).
