scReW alIGnMenT
Good alignment of the screws, especially on the wall panels, will give a professional appearance to
the wall panel installation . One way this can be accomplished is by pre-drilling holes in the panels
at identical locations . Up to 15 panels can be stacked together and drilled using a template panel .
Use 1/8” or 5/32” diameter drill bit for panel to structural fasteners and a 1/4” diameter bit for the
sidelap clearance holes .
It is important to clean metal shavings off panel surfaces after
drilling to avoid rust stains.

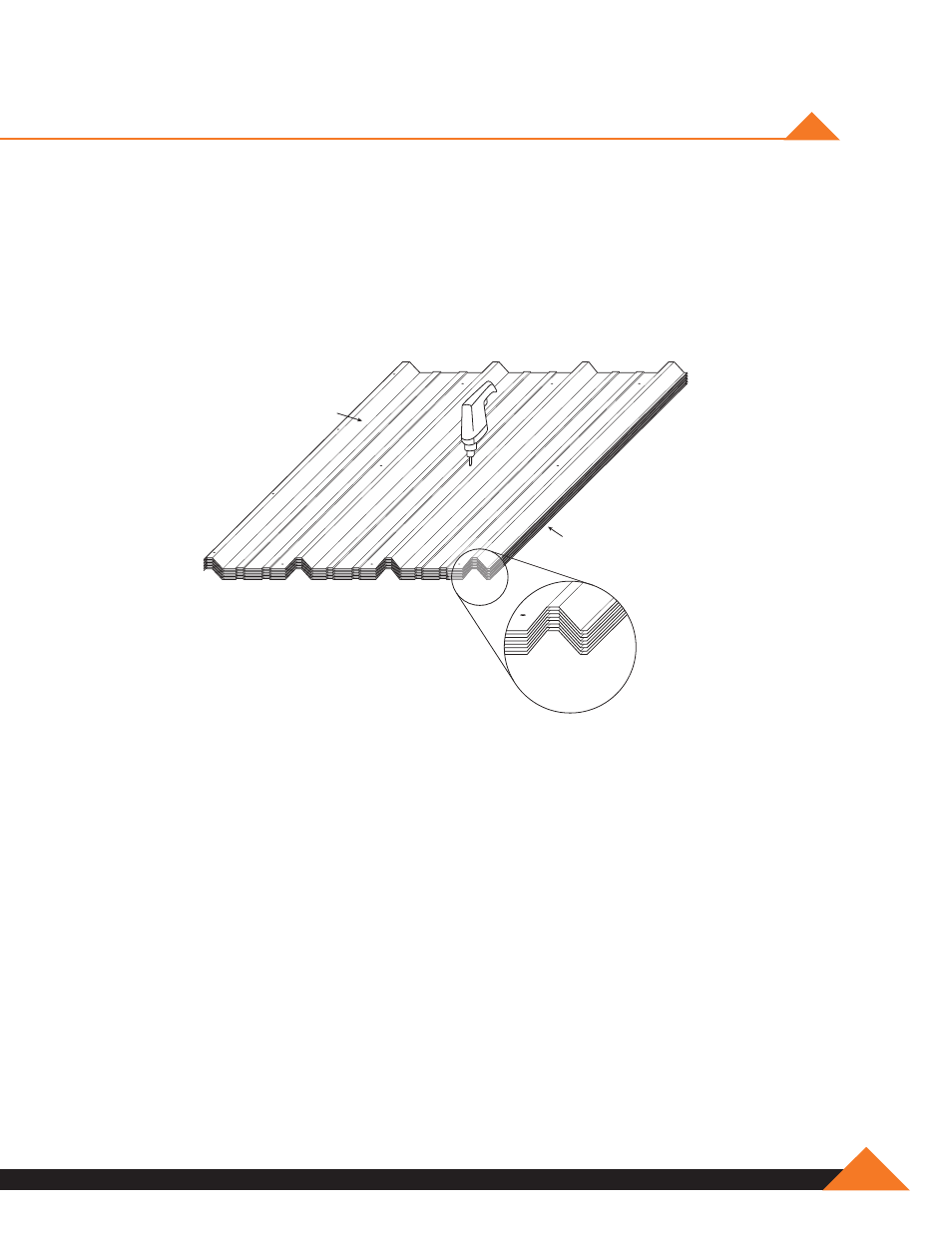

Keep Ends
of Panels
Allinged
CLAMPING IS REQUIRED
Stacked Sheets
To Be Drilled
Pre-Drilled
Template
Sheet
