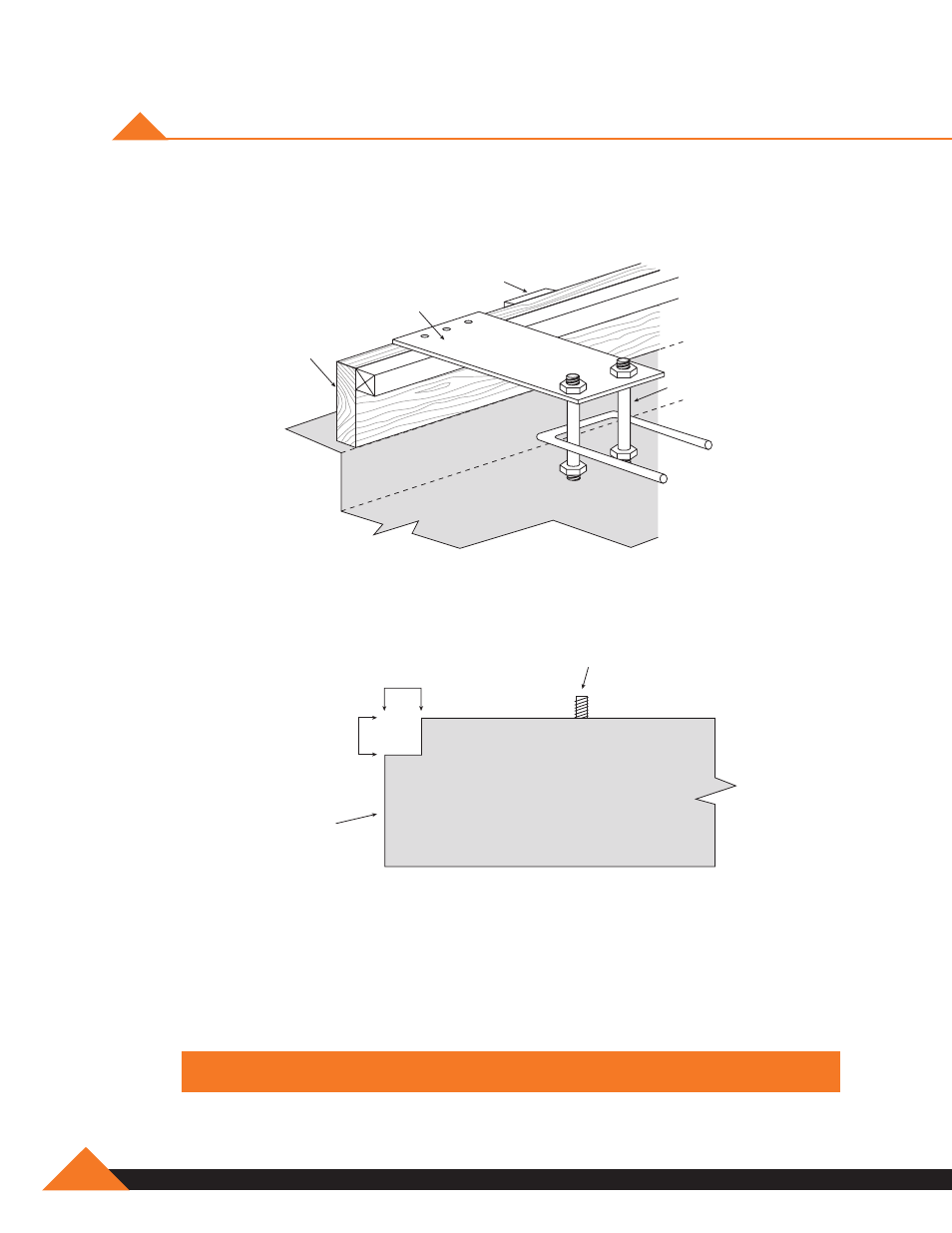

ancHoR bolT seTTInGs
Refer to your anchor bolt drawing for proper sizes and dimensions .
Anchor
Bolts
Stake
Template
Form
Board
Sheet
Ledge
Anchor Bolt
Foundation
1
1
/
2
˝
1
1
/
2
˝
noTe: suggested protrusion is 2
1
/
2
" of threads above concrete.
