www.muellerinc.com A-3

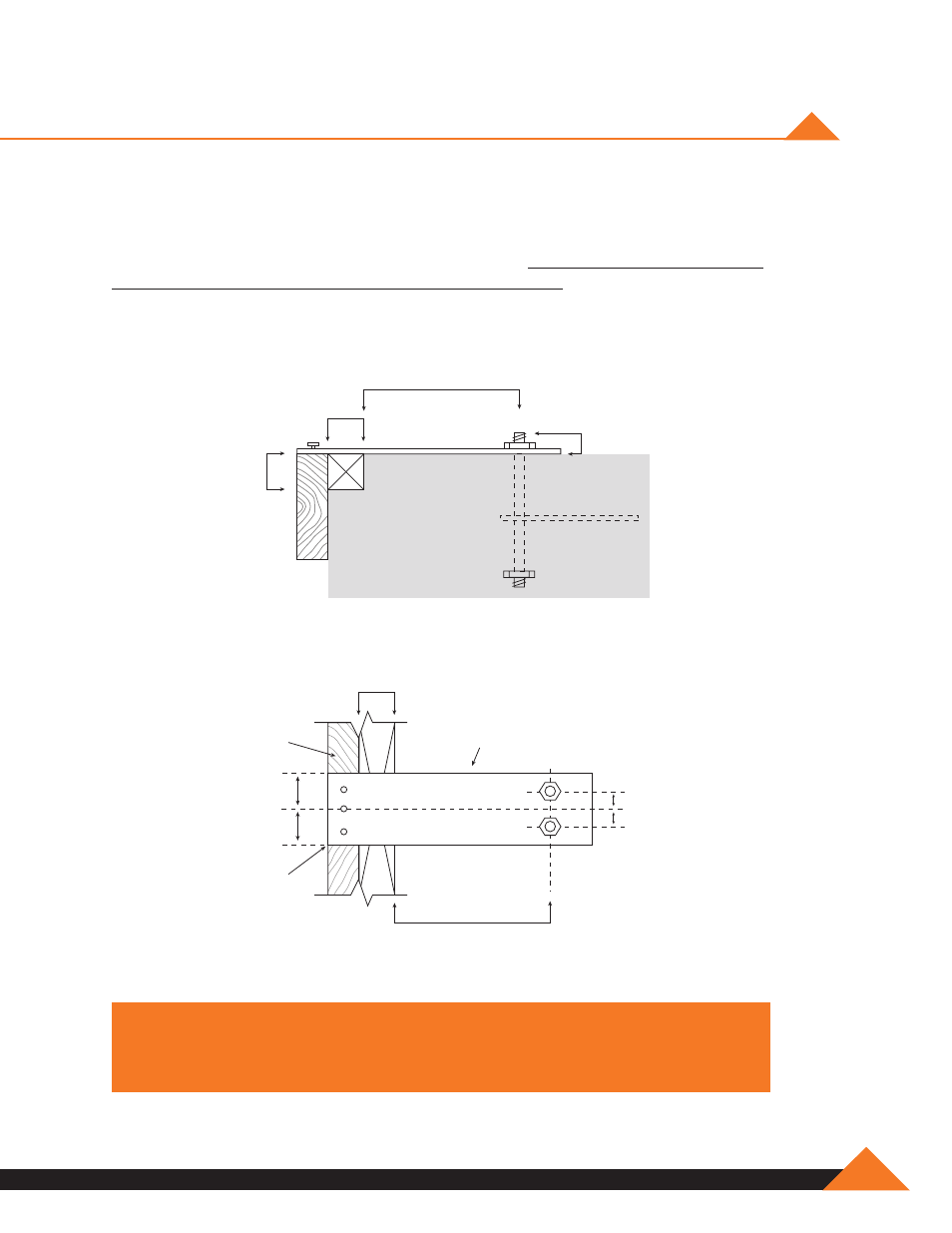

ancHoR bolT seTTInGs
It is extremely important that anchor bolts be placed accurately in accordance with the anchor bolt
setting plan . All anchor bolts should be held in place with a template or similar means, so they will
remain plumb and in the correct location during placing of the concrete . Check the concrete forms
and anchor bolt locations prior to the pouring of the concrete . A final check should be made after
the completion of the concrete work and prior to the steel erection . This will allow any necessary
corrections to be made before the costly erection labor and equipment arrives .
noTe: Measurements are from steel line to steel line.
* Template not included.
B
Projection of anchor bolts “D”
given on anchor bolt plan
1 1 /
2
˝
1 1 /
2
˝
D
B
C
C
Dimension of A, B and C as
given on anchor bolt plan
1 1 /
2
˝
Form
Board
Steel
Line
Template*
A
A
