InsTallaTIon of WInD bRacInG (conTInUeD)

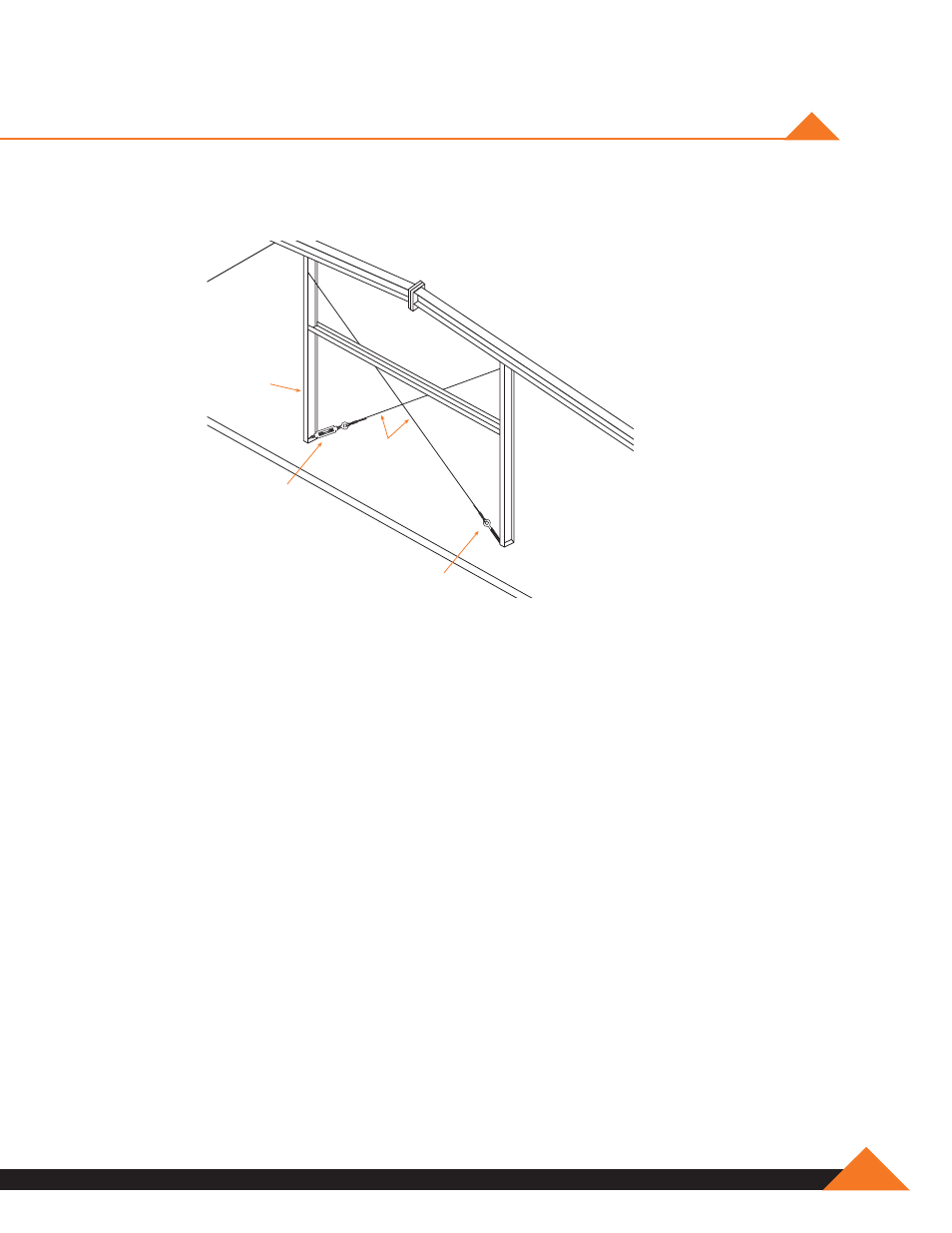

Assemble the next brace cable the same way and connect to the next column to form an “X” with
the other cable .
To square the building, measure the length of the diagonals and tighten or loosen the turnbuckle/
eye-bolt until the lengths are the same . Double-check by using a square at the corners .
Brace each sidewall frame the same way so that you have an x-brace on each side . Note that the
diagonal lengths may vary between the two walls, but should be the same on each x-brace .
Tighten the column anchor nuts after ensuring that the building is square .
The diagonal bracing is cable . It should always be installed as shown on the erection drawing and
should be tensioned so that the building will not sway or rock when the wind blows . Care should
be taken; however, not to over tighten and bend the structural members . The workman should
watch the structural members carefully as he tightens the bracing .
Column
Eyebolt
Turnbuckle
Cable
