Ul 90 lIGHT TRansMITTInG Panel
InsTallaTIon (conTInUeD)
Apply sealant tape across sidelaps of 3” long pieces of “R” panel . Be sure the light transmitting
panel sidelaps have a complete run of sealant tape on top of the light-transmitting panel .
Install “R” panel hat section to each side of light transmitting panel with lap screws at 12” O .C .
Apply sealant tape down each hat section to just downslope of exposed sealant tape running
across light transmitting panel . Also apply additional sealant tape up each side of hat section
aligning and sealing to the exposed sealant tape running across light transmitting panel .
Install upper metal panel in light transmitting panel run and fasten as at a normal endlap .

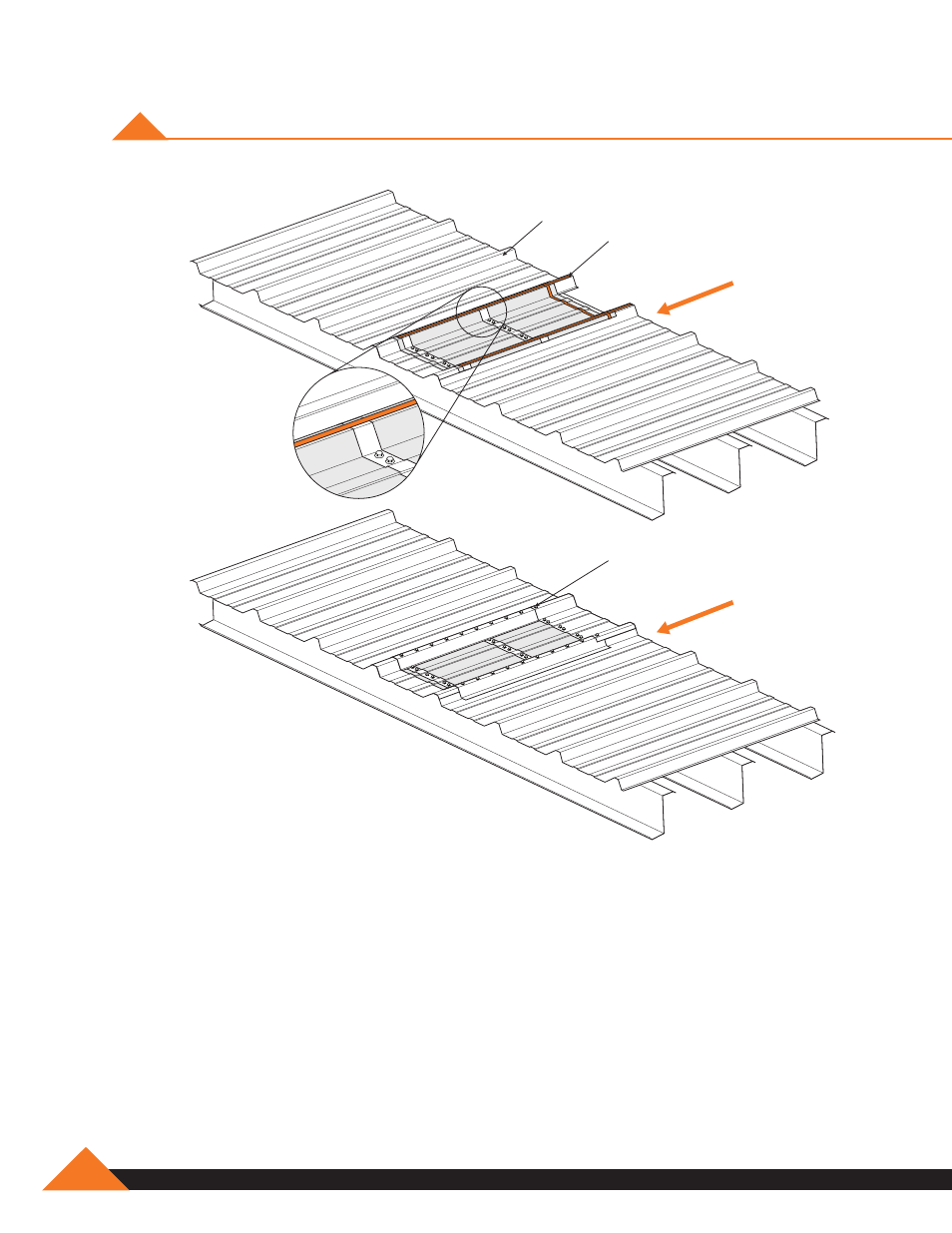

Slope
Sealant Tape
R-Panel
Lap 12" O.C.
Slope
