PRePaRInG THe eave (conTInUeD)
Along the top of the closures that have been placed along the eave, apply a second run of sealant
tape . Prior to removing paper backing, check and mark for proper alignment of the first roof panel .
Continue sealant tape and closure run along eave in preparation for the next roof panel .

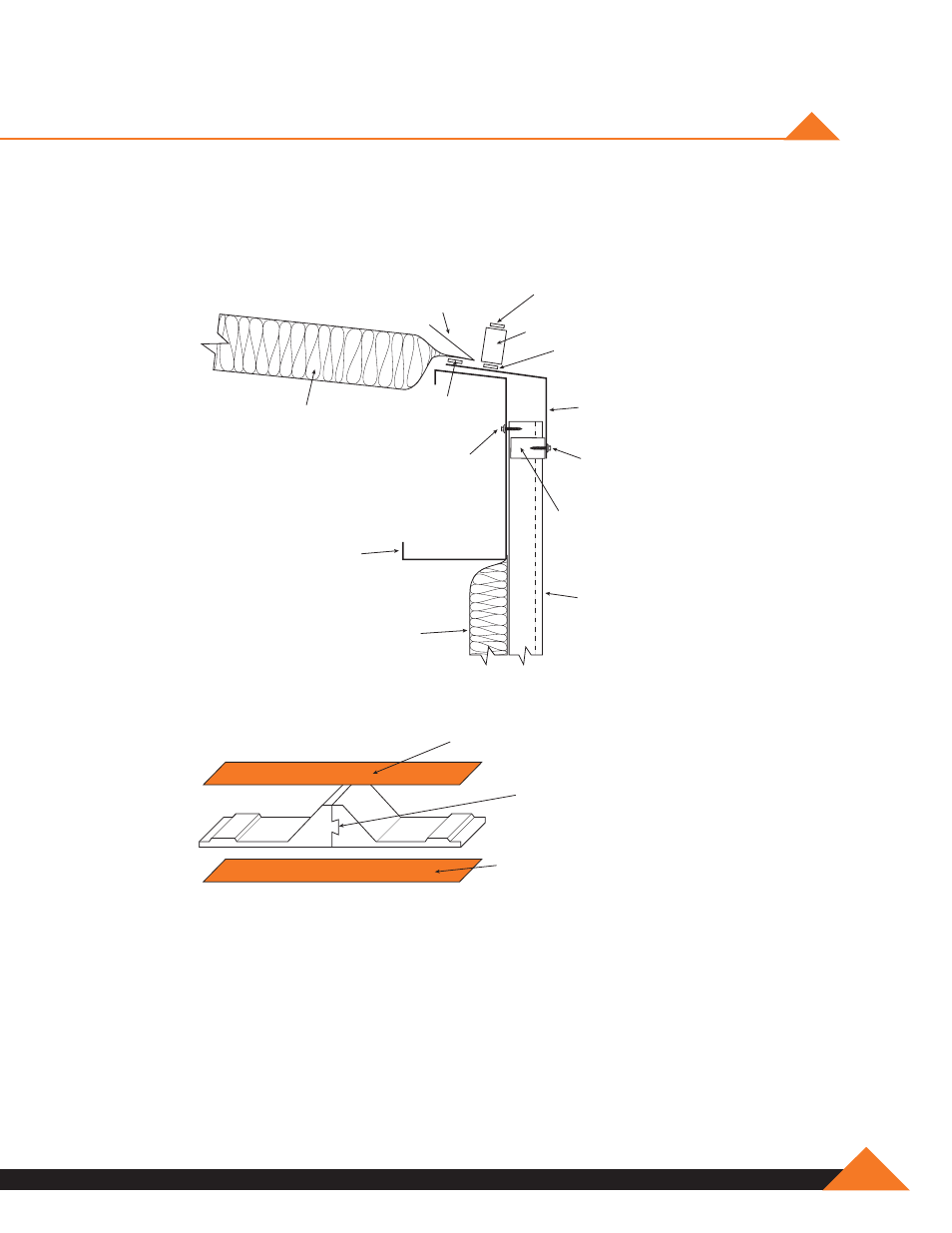

Cut & Fold
Insulation
Insulation
Insulation
Double-sided
Tape
Wall Fastener Wall
Fastener
Wall Panel
Sealant Tape
Sealant Tape
Inside Closure
Eave Trim
(Trim shape
may vary)
Eave Strut
(Shape
may vary)
Outside Closure
(Optional)
Caulk closure splice
when ice & snow eave
conditions may occur.
Sealant Tape
Sealant Tape
