Page 56

Boom
3-18
6036, 6042, 8042, 10042, 10054

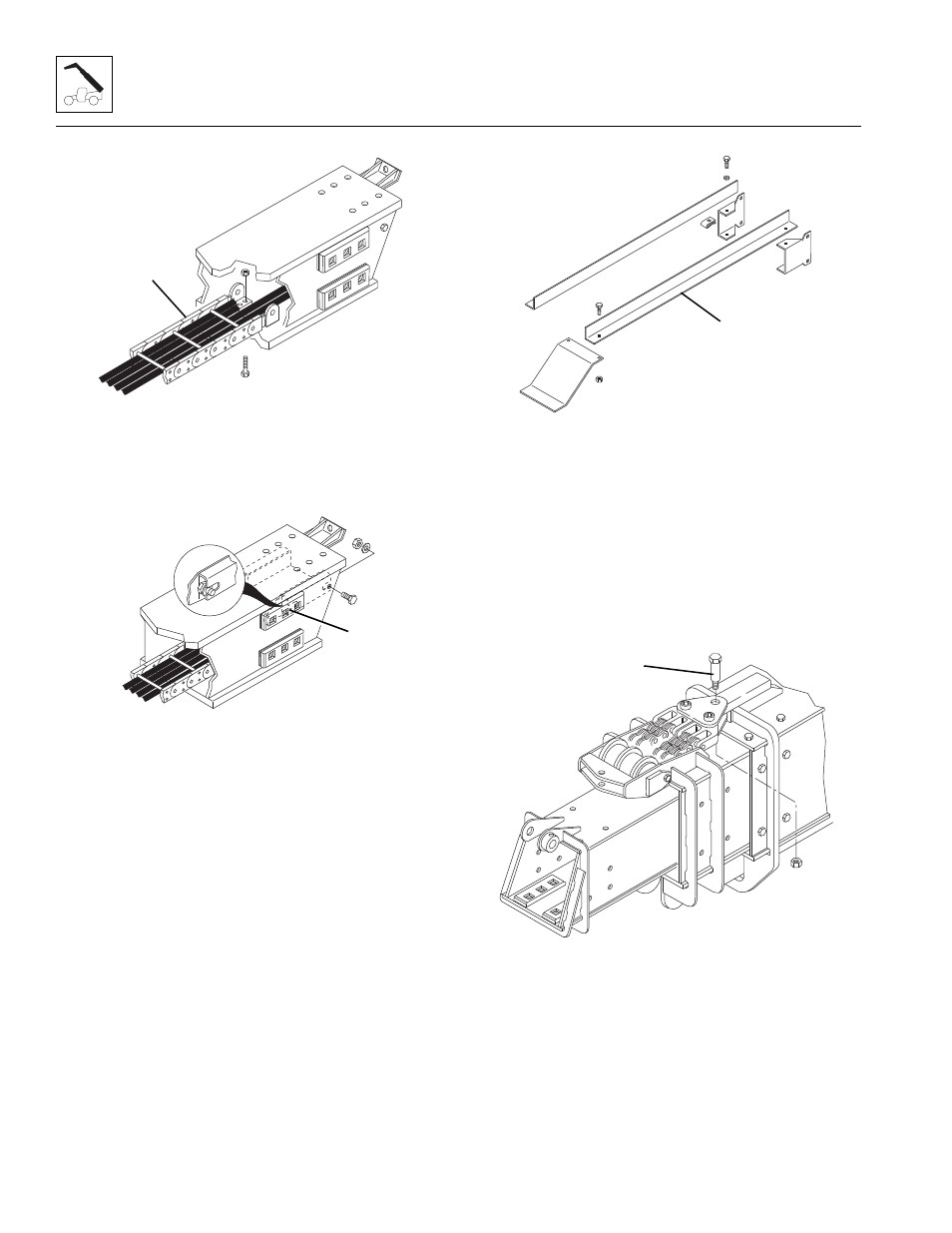

30. Inside the boom section, remove the hardware
securing the hose carrier (9) to the bottom of the
boom.
31. On each side of the boom, remove the hardware
securing the rear of the hose carrier guide in place.
32. Loosen, but DO NOT remove the hardware holding
the front of the hose carrier guide and the top wear
pad (10) to each side of the boom.
33. Tilt the back of the hose carrier guide up. Label all
hoses and their orientations. Pull the hoses from the
channels inside the boom. Lay the hoses out behind
the boom.
34. After the hoses are removed, remove the hose
carrier guide by pulling the guide out the rear of the
boom.
35. Remove the hose carrier assembly (11) from the
boom by carefully pulling both the upper and lowers
portions through the rear of the boom at the same
time.
36. Carefully slide the hose channel assembly out of the
rear of the boom.
3.6.2
Third Boom Section Removal
1. At the front of the second boom section, remove the
top and side wear pads. Label and tag each set of
wear pads being removed.
2. Remove the shoulder bolt (12) holding the yoke
plates to the mount at the front of the first boom
section.
3. Remove the extend chain sheave pin and sheave on
the third boom section.
MH1901
9
MH1911
10
MH1961
11
MH1991
12
