Transmission
6-4
6036, 6042, 8042, 10042, 10054
10. Transfer the used transmission oil into a suitable,
covered container, and label the container as “Used
Oil.” Dispose of used oil at an approved recycling
facility. Clean and reinstall the transmission drain
plug.

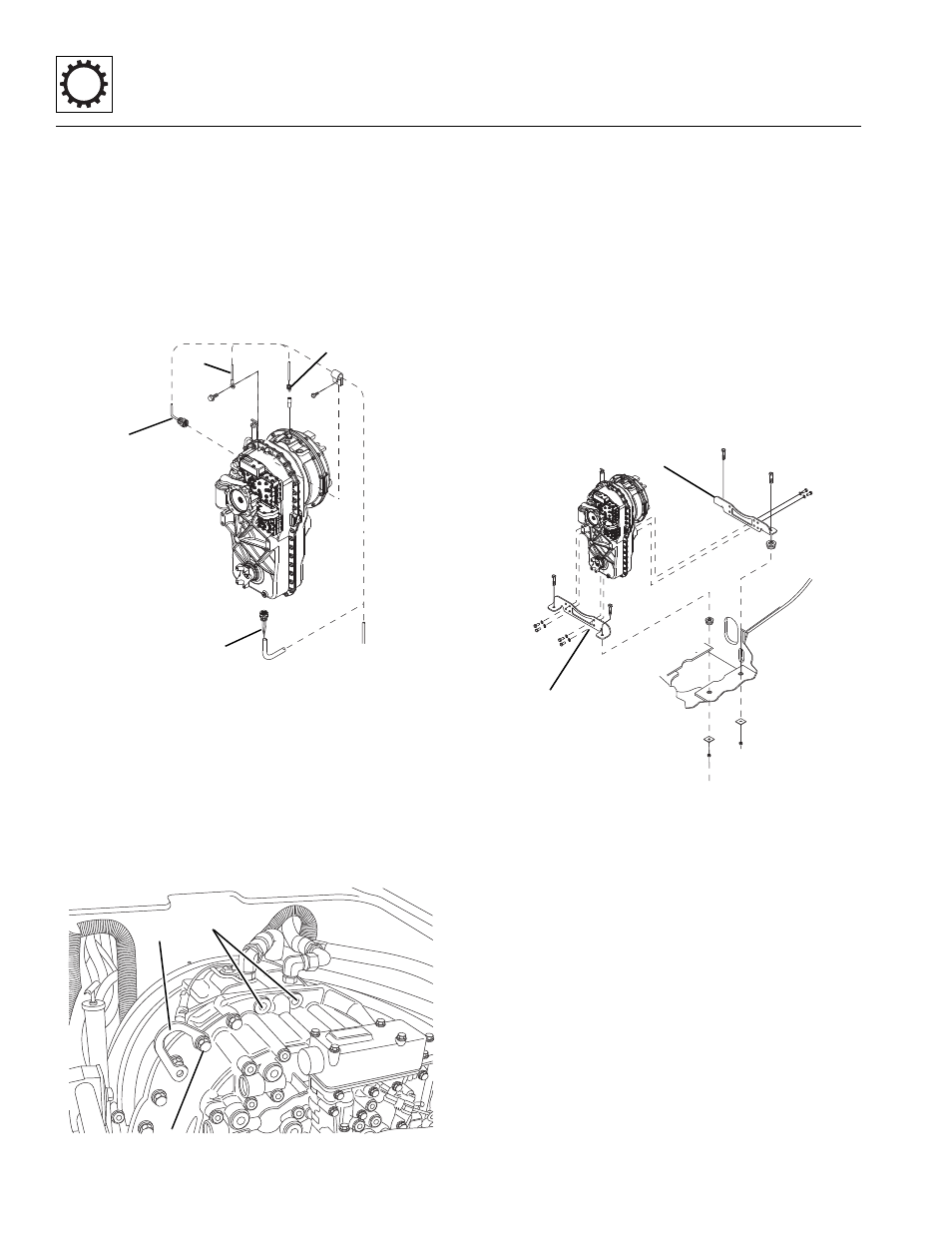

11. Remove the engine-to- transmission and
transmission-to-axle drive shafts. Refer to Section
5.6.3, “Drive Shaft Removal.”
12. Remove the hydraulic pump. Refer to Section 8.6.1,
13. Label and disconnect the transmission temperature
switch connector (2) and shift solenoid wiring
harness connectors (3).
14. Remove the capscrew securing the black wire (4) to
the transmission housing, and disconnect the wire.
DO NOT reinstall the capscrew at this time.
15. Remove the capscrew securing the clamp (5) and
wiring harness to the transmission housing and
move the wiring harness safely out of the way. DO
NOT reinstall the capscrew at this time.
16. Remove the capscrew (6) securing the lifting ring (7)
to the transmission housing. Once the lifting ring has
been removed, reinstall the capscrew into the hole.
17. Move the lifting ring to the holes (8) used to secure
the black wire and clamp. Secure the lifting ring
using the capscrews and tighten securely.
18. Label, disconnect and cap the transmission oil
cooler inlet and outlet hoses on the transmission.
19. Connect a lifting strap or chain to the lifting eye at
the top of the transmission and to a suitable hoist or
overhead crane. Operate the hoist or crane to
remove slack from the chain, but DO NOT raise the
transmission at this time.
20. Place blocks under the transmission to help support
it during removal.
21. Remove the capscrews and lockwashers securing
the front transmission mount (9) to the transmission.
22. Remove the two capscrews, hex locknuts and
rebound washers. Remove the front transmission
mount.
23. Remove the four capscrews and lockwashers
securing the rear transmission mount (1) to the
transmission.
24. Remove the two capscrews, hex locknuts and
rebound washers. Remove the rear transmission
mount.
25. Inspect the rubber mounts. Replace the mounts if
damaged.
26. Carefully remove the transmission from the
machine. Avoid causing damage to the transmission
or surrounding parts.
MH3391
2
3
5
4
MH3401
6
7
8
MH6290
9
1
