Electrical System

9-16

6036, 6042, 8042, 10042, 10054

9.8.3

Windshield Washer Reservoir

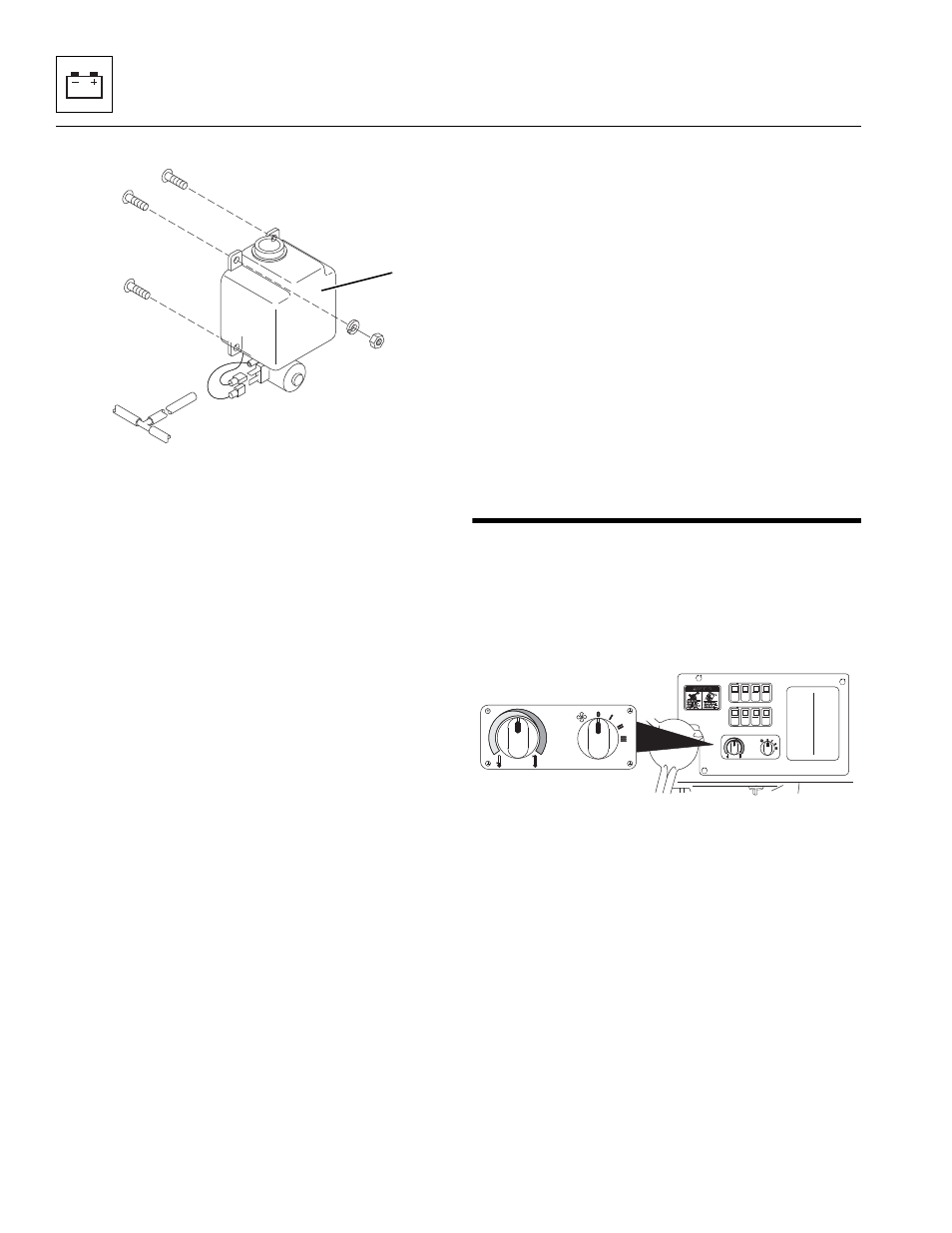

The windshield washer motor and reservoir (7) is a unit
and cannot be serviced separately.

a. Removal

1. Park the machine on a firm, level surface, level the

machine, fully retract the boom, lower the boom,
place the transmission control lever in
(N) NEUTRAL, engage the park brake and shut the
engine OFF.

2. Place a Do Not Operate Tag on both the ignition key

switch and the steering wheel, stating that the
machine should not be operated.

3. Open the rear door. Allow the system fluids to cool.

4. Properly disconnect the battery.

5. Remove the nuts and the lock washers from the

washer mounting bolts.

6. Pull the washer reservoir out and away from the

mounting bracket.

7. Rotate the washer reservoir, label and remove the

cab harness connectors from the washer reservoir
connectors.

8. Remove the windshield washer hose from the

reservoir.

b. Disassembly

DO NOT disassemble the pump. The pump is not
serviceable. Replace pump if found to be defective.

c. Installation and Testing

1. Connect the windshield washer hoses to the

reservoir.

2. Connect the cab wiring harness connectors to the

reservoir connectors.

3. Install the reservoir tank onto the welded studs.

4. Install the lock washers and nuts and secure.

5. Fill the washer fluid reservoir with washer fluid.

6. Properly connect the battery.

7. Remove the Do Not Operate Tags from both the

ignition key switch and the steering wheel.

8. Turn the ignition key switch to the RUN position and

press the washer switch. Verify that fluid is sprayed
on both the windshield and rear glass.

9. Close and secure the rear door.

9.9

CAB HEATER AND FAN

9.9.1

Cab Heater Controls

Note: If the suspect component is found to be within the
heater box, the heater box must be removed as a
complete unit and replaced.

a. Cab Heater Controls Removal

1. Park the machine on a firm, level surface, level the

machine, fully retract the boom, lower the boom,
place the transmission control lever in
(N) NEUTRAL, engage the park brake and shut the
engine OFF.

2. Place a Do Not Operate Tag on both the ignition key

switch and the steering wheel, stating that the
machine should not be operated.

3. Open the rear door. Allow the system fluids to cool.

4. Properly disconnect the battery.

5. Remove the setscrew from the variable speed fan

control knob or temperature control knob.

6. Remove the right side control panel screws.

7. Remove the screws and backing locknuts from the

cab heater and fan control panel.

MA8351

7

MA8701
