Electrical System
9-2
6036, 6042, 8042, 10042, 10054
9.1
ELECTRICAL COMPONENT
TERMINOLOGY
To understand the safety, operation, and service
information presented in this section, it is necessary that
the operator/mechanic be familiar with the name and
location of the electrical components of the machine. The

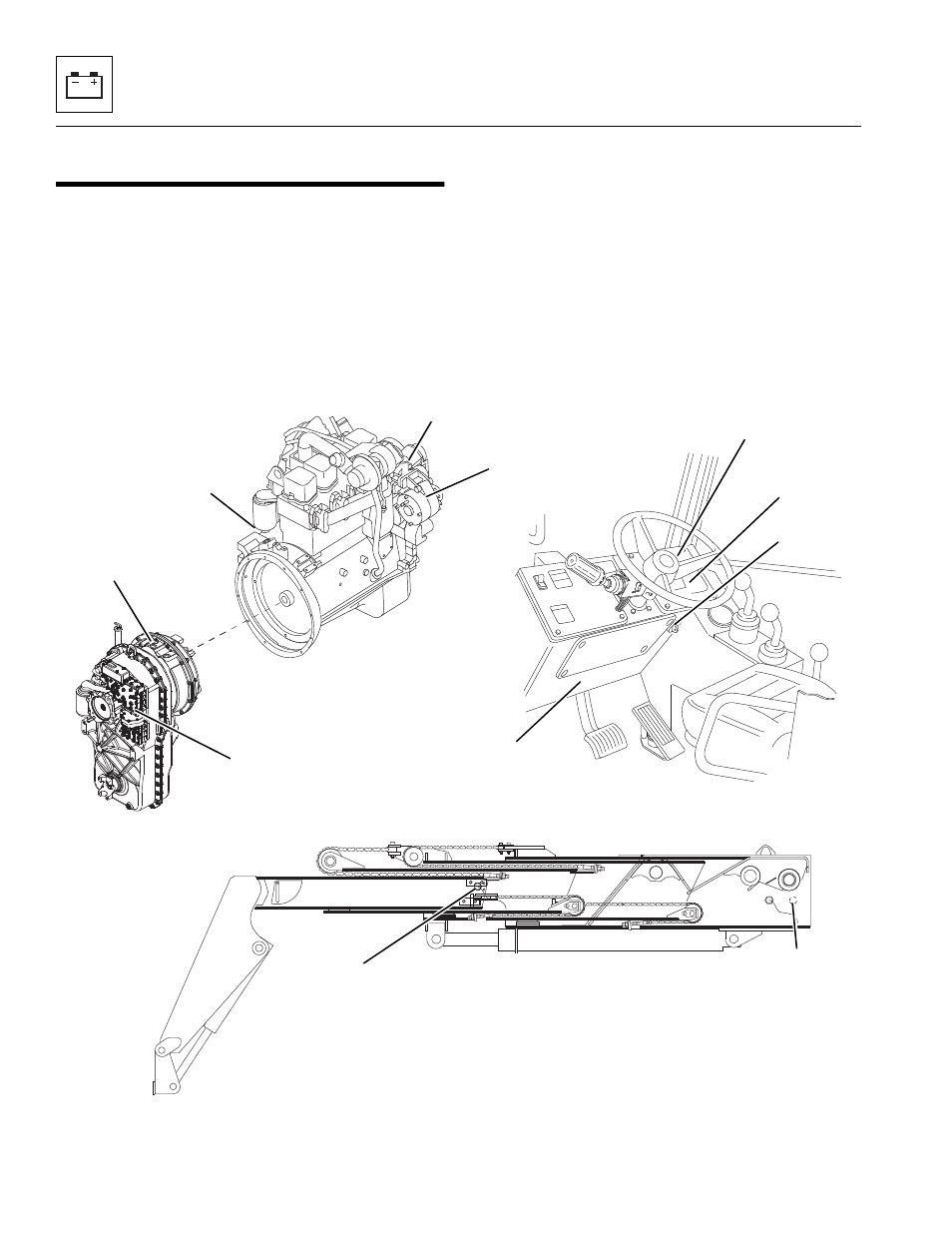

following illustration identifies the components that are
referred to throughout this section.
9.1.1
General Overview
MAQ0360
DASH SWITCHES
COOLANT
TEMPERATURE SWITCH
IGNITION
SWITCH
TRANSMISSION
TEMPERATURE
SENDER
ALTERNATOR
STARTER
TRANSMISSION
SOLENOID
VALVES
SERVICE
BRAKE
SWITCH
BOOM EXTEND
INTERLOCK SENSOR
(10054 ONLY)
BOOM ANGLE
SENSOR
(FOUR SECTION BOOM SHOWN)
CAB HEATER
CONTROLS
