Hydraulic System
8-2
6036, 6042, 8042, 10042, 10054
8.1
HYDRAULIC COMPONENT
TERMINOLOGY
To understand the safety, operation and service
information presented in this section, it is necessary that
the operator/mechanic be familiar with the name and
location of the hydraulic components of the machine. The
following illustration identifies the components that are
referred to throughout this section.

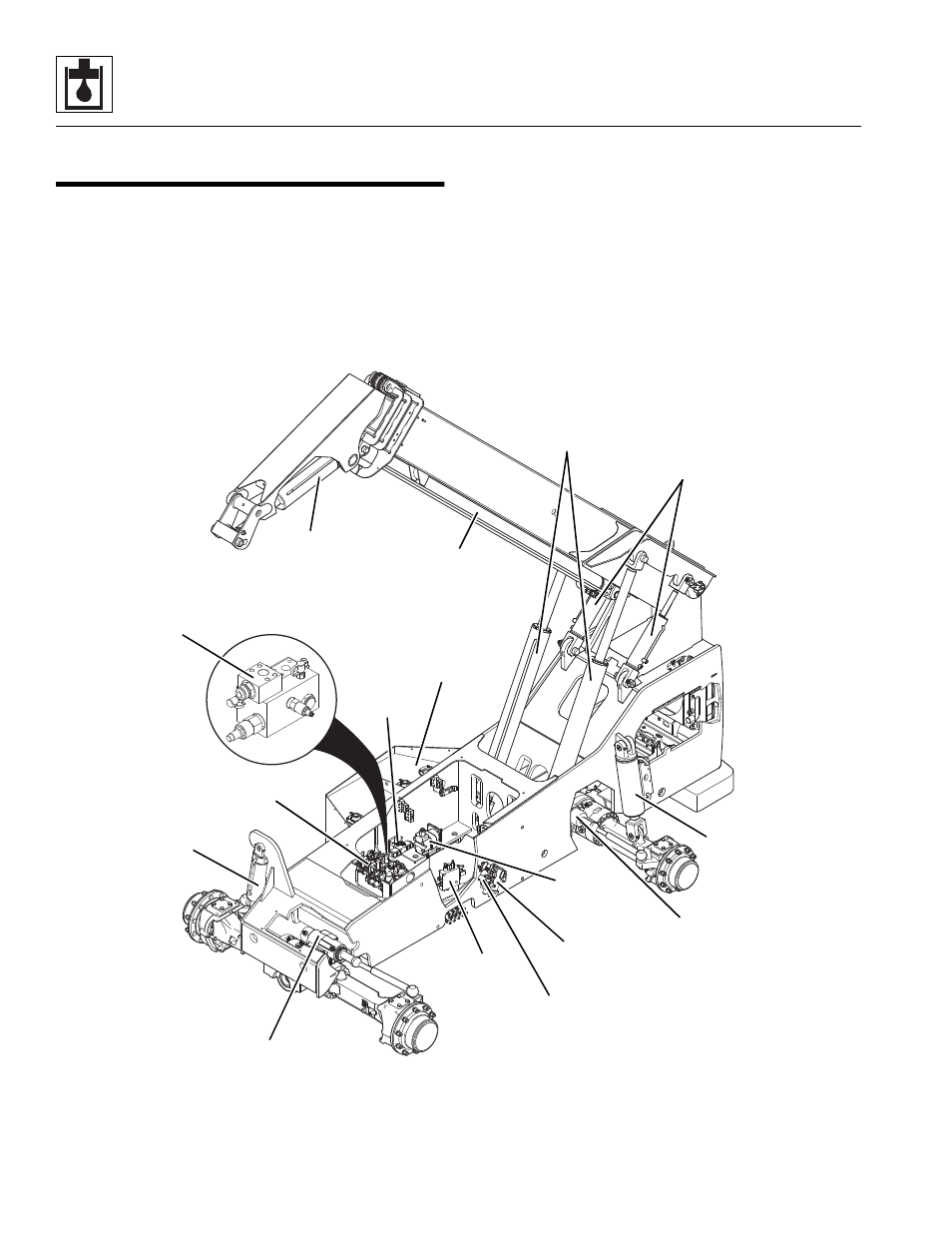

MA9251
FRAME SWAY
CYLINDER
LIFT/LOWER
CYLINDERS
HYDRAULIC FLUID
RESERVOIR
EXTEND/
RETRACT
CYLINDER
MAIN
CONTROL
VALVE
STABILIZER
CYLINDER
(6042 ONLY)
SLAVE
CYLINDERS
STEERING
CYLINDER
(REAR)
SECONDARY
FUNCTION
MANIFOLD
SERVICE
BRAKE
VALVE
STEERING
VALVE
STEERING
CYLINDER
(FRONT)
STEER SELECT
VALVE
MAIN PUMP
ATTACHMENT
TILT
CYLINDER
UNLOADER
VALVE
6036 & 6042
