– 7 –
A1 February 03/Trb
Mounting continued
English
2.2

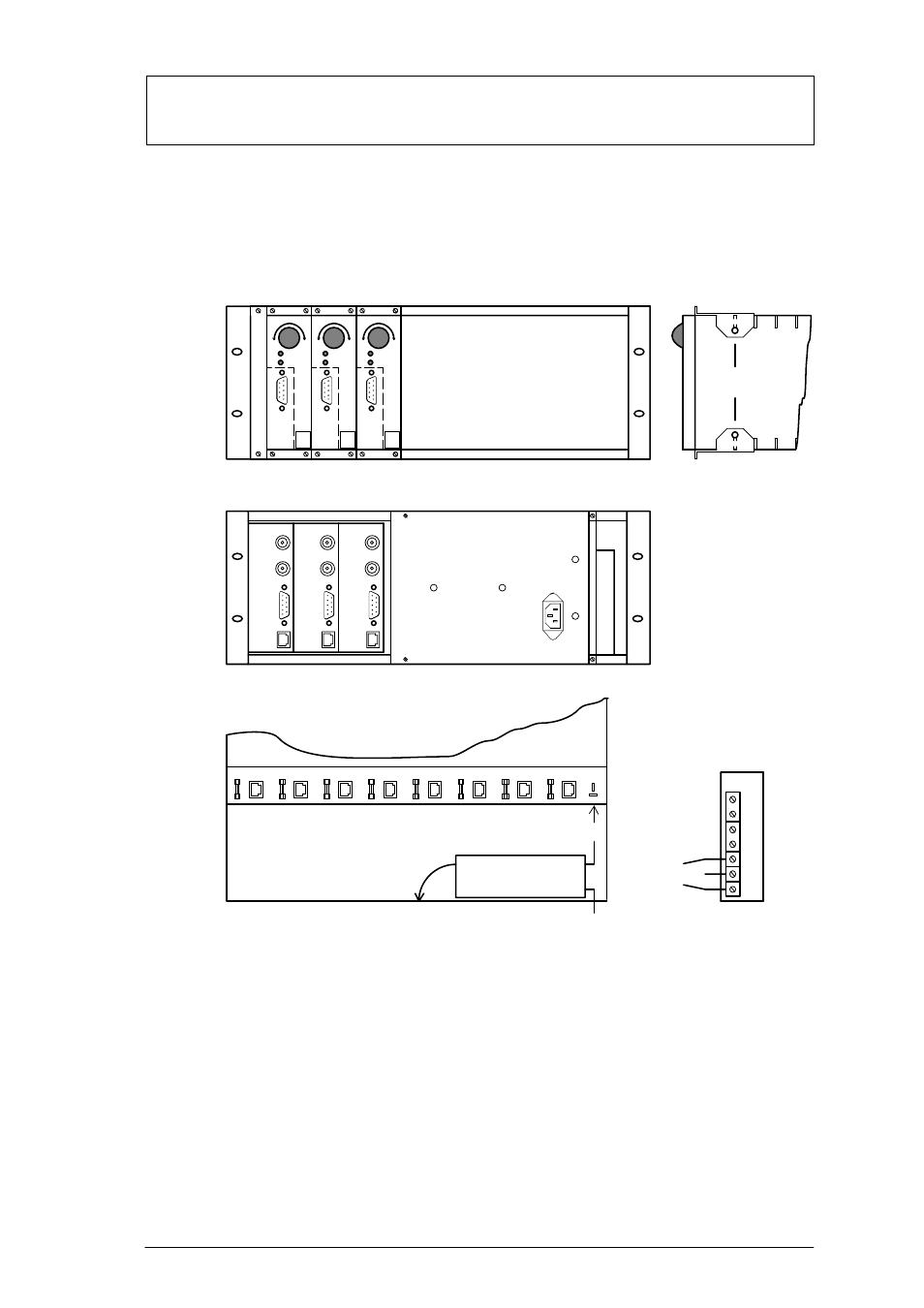

19” mounting frame and wiring
(Accessory VMD–RA90)
Maximum expansion
8 units
mounting
bracket
Front
Power
supply
Rear
L
I
EG
+5V
–5V
100–240V
Power supply
Direction of swivel
+5V
100–240V
Fuse = 2A
Top view (distributor LP)
For rack mounting, insert the mounting angle brackets (packaged extra) into
the slides, screw down and feed the cabling through.
Warning
Grounding must be professionally carried out according to IEN 60950.
2.2.1
19” mounting frame without wiring (accessory VMD–RA00)
The frame is delivered without power supply/cable set/distributor LP, with blind
plate.
