– 6 – A1 February 03/Trb
Mounting continued English

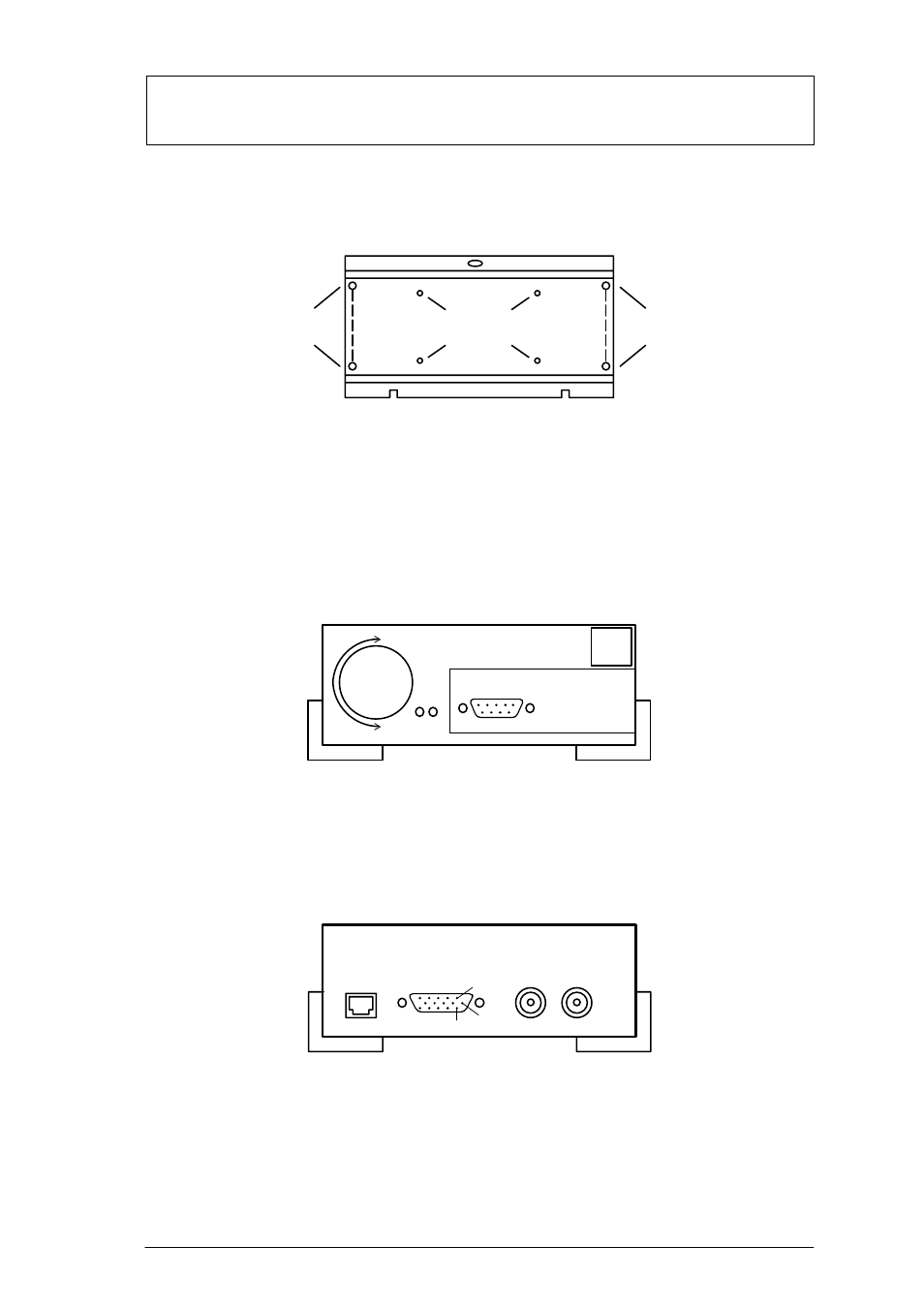

2.1.2 Wall holder for mounting on walls and ceilings (accessory VMD–WM)
Mounting holes
for housing
Holes for
strain relief Holes for
strain relief
TOP TOP
The wall holder can be used as a drilling template. Before mounting on a wall,
screw the wall holder (using fitting holes for housing) to the unit. For strain relief
using cable ties, use the holes in the mounting plate.
Warning!
Only one unit may be mounted on a wall or ceiling.
2.1.3 Connections / Front
3
2
4
1
1 L1 green 2 L2 red
3 Key/Rotary Switch 4 Mouse connection, RS232 serial interface
2.1.4 Connections / Rear
1 2 3 4 1
6
11
1 5V DC 2 I/O Contacts
3 Video OUT 4 Video IN
