Replacement procedure
1. Shut down the computer and unplug the power cable.
2. Remove the case. See Opening the case.
3. Unplug the processor’s fan power cable.
4. Remove the processor/motherboard ventilation canopy (fan unit) by
removing the two screws at the top rear of the chassis.

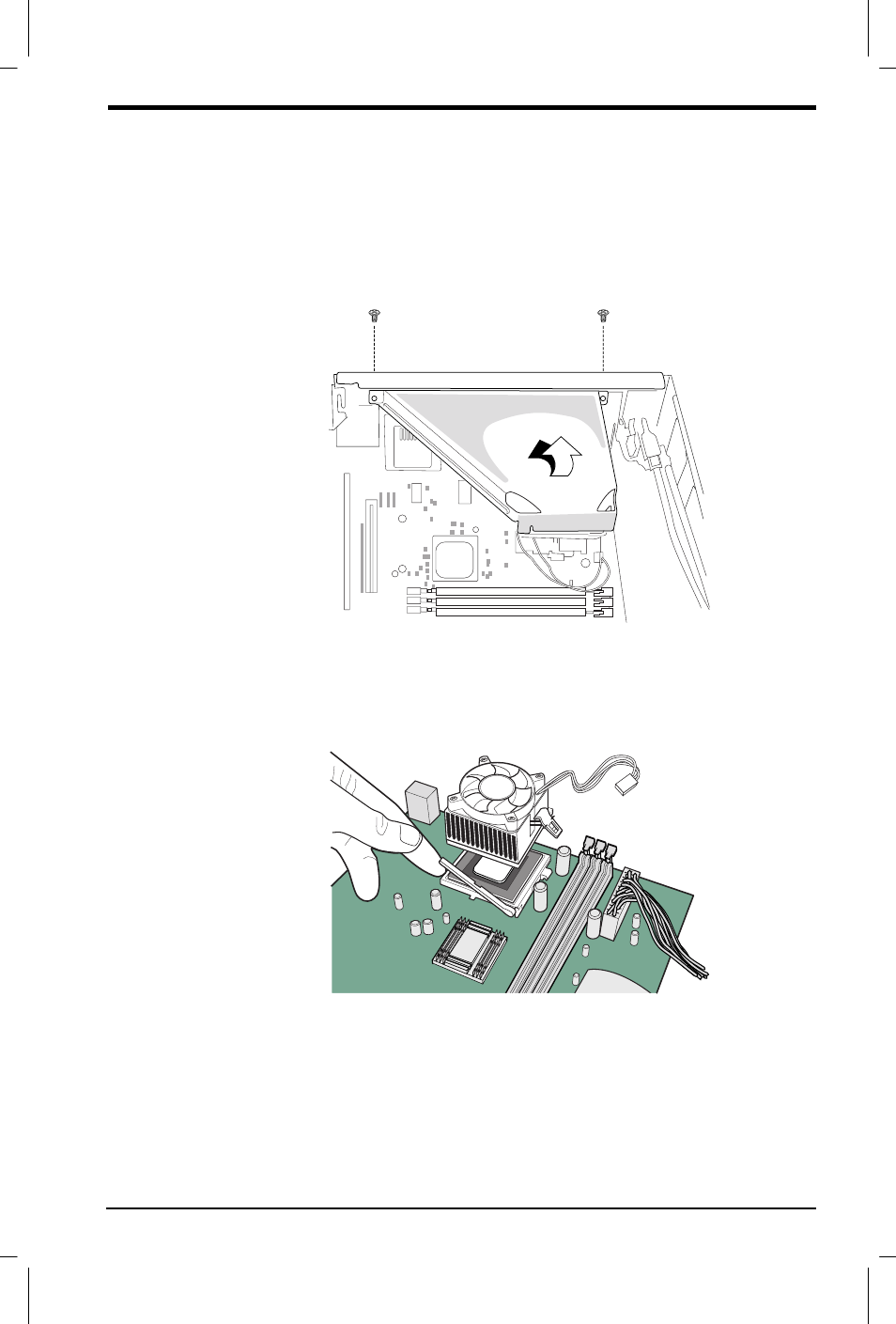

Removing the processor ventilation canopy
5. Locate the locking lever at the base of the processor socket. Move
the lever slightly outward, then raise it upward to 90 degrees.
The processor is now ready to remove.
Raising the processor’s locking lever
