User's Manual Hardware for the Toshiba Equium™ 8000S 3-9
9HUVLRQ /DVW 6DYHG RQ
(TXLXP 8VHU V 0DQXDO ± &+$3'2& ± (1*/,6+ ± 3ULQWHG RQ DV B8.
Motherboard
10
11
12
13
8
7 5 2 3 4
14
15
9
6
16
1
17 18 19
20
21
22
23
24

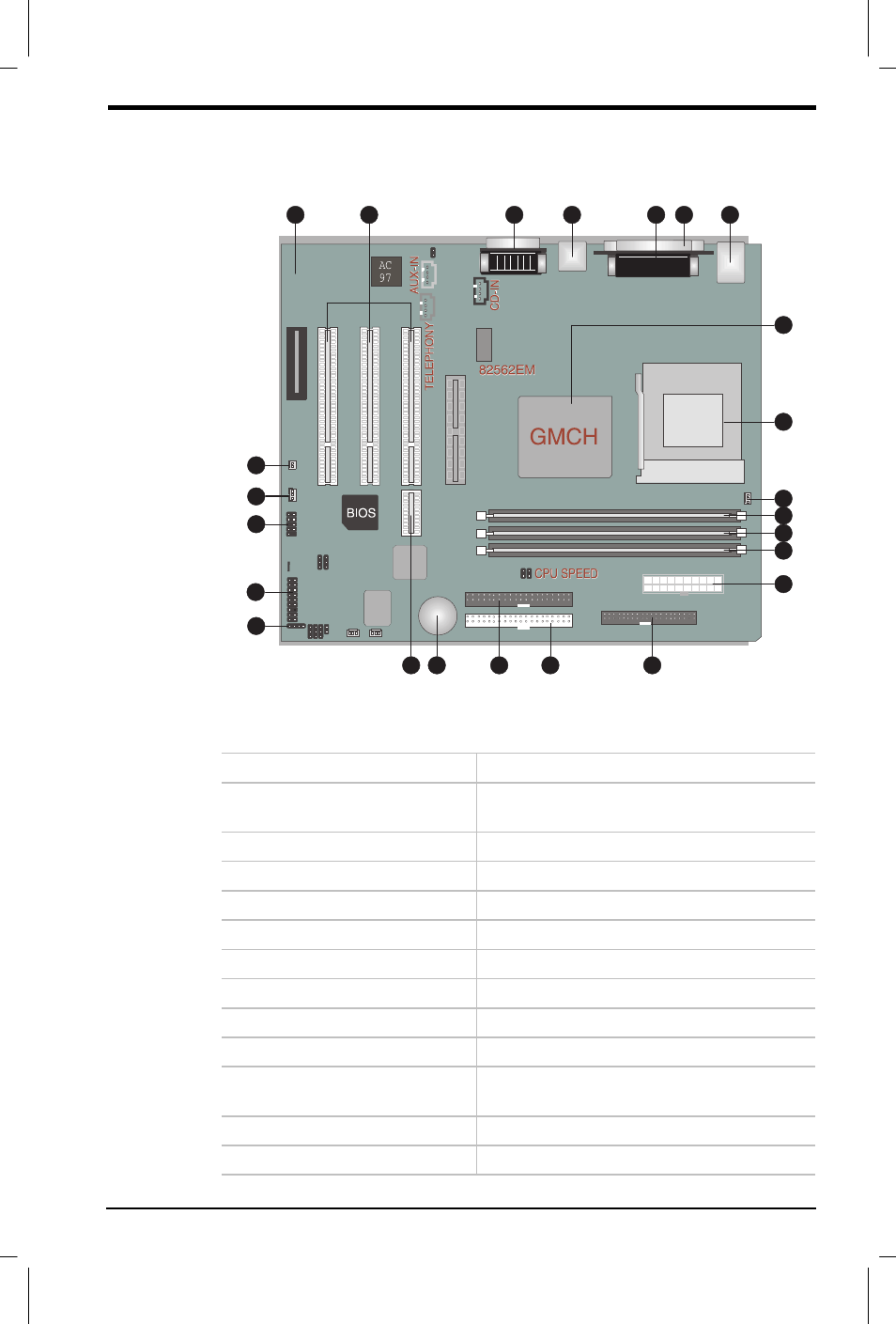

Locating the motherboard components
The following components are identified in the above illustration.
1 CNR SLOT 2 PCI SLOT
3 GAME/MIDI/MIC-IN/
LINE-IN/LINE-OUT 4 LAN/USB
5 PRINTER 6 COM 1
7 KEYBOARD/MOUSE 8 GRAPHICS MEMORY CONTROL HUB
9 PGA 370 CPU SOCKET 10 FAN 1 (CPU FAN)
11 DIMM 1 12 DIMM 2
13 DIMM 3 14 ATX POWER
15 FLOPPY 16 PRIMARY IDE
17 SECONDARY IDE 18 RTC BATTERY
19 ATX SLOT RISER 20 SPEAKER
21 FRONT PANEL
CONNECTORS
22 FRONT USB
23 WAKE ON RING (WOR) 24 WAKE ON LAN (WOL)
25 AGP SLOT
