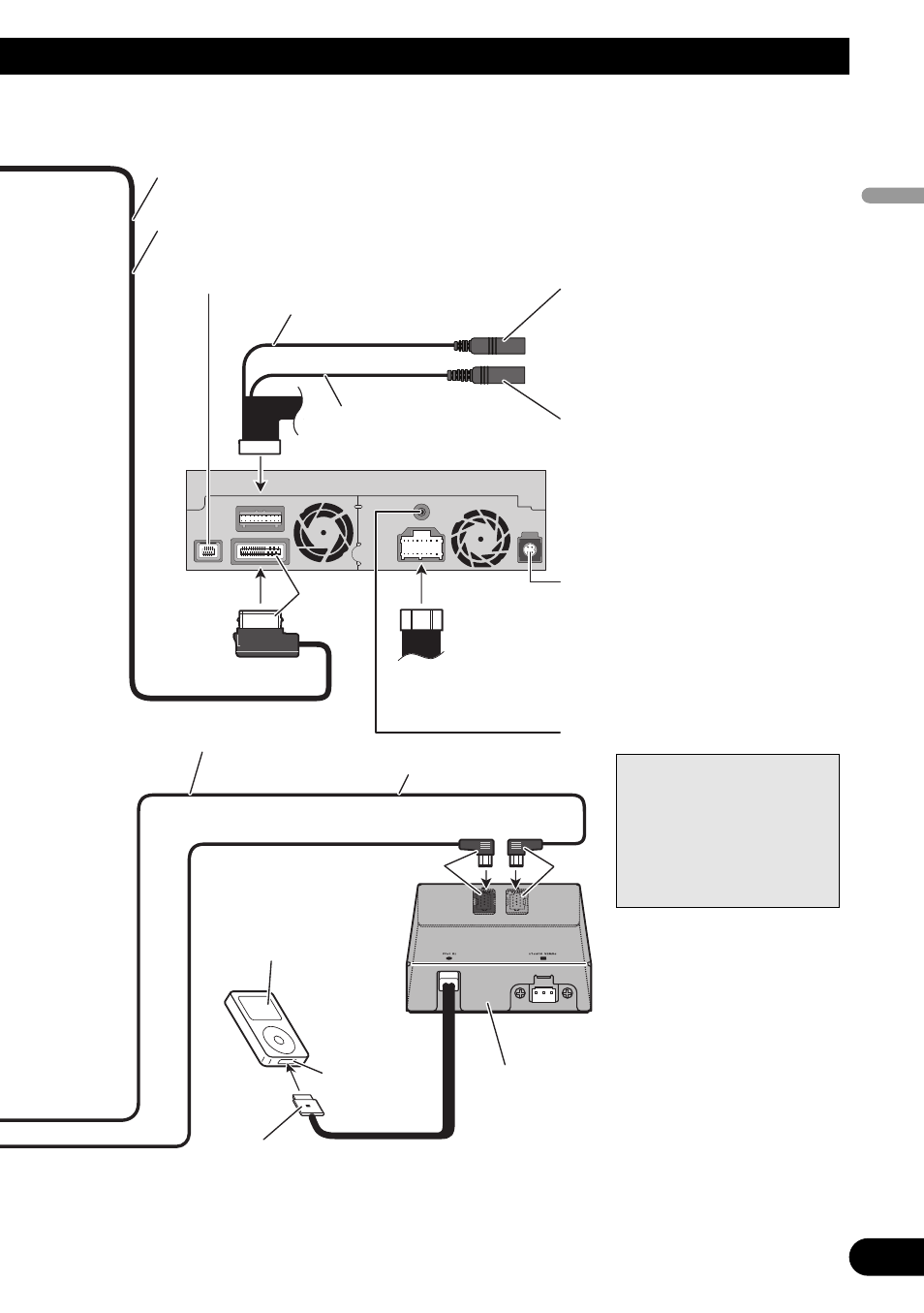

IP-BUS cable
(supplied)
Dock connector
port
Dock connector (supplied with iPod adapter)
iPod with
Dock connector
iPod adapter
(e.g. CD-IB100)
(sold separately)
Blue Black
3 m
Yellow
DIGITAL OUT*
G.SP (Guidance speaker output)*
MIC INPUT
The microphone in the voice
recognition kit (e.g. CD-VC1)
(sold separately) is connected
when the voice recognition
function is used.
3 m
30-pin cable
Power cord
WIRED REMOTE INPUT
Please see the Instruction
Manual for the Wired Remote
Control adapters (sold separately).
Display unit
20 cm
20 cm
EXTENSION port
Not used.
*: This terminal is intended
to support future equip-
ment and should not be
used if you are using
this product by itself.
