Pioneer AVIC-X1BT User Manual

Page 11

English

Español

Deutsch

Français

Italiano

Nederlands

GUIDE ON

SYSTEM REMOTE
CONTROL

Blue (*7)

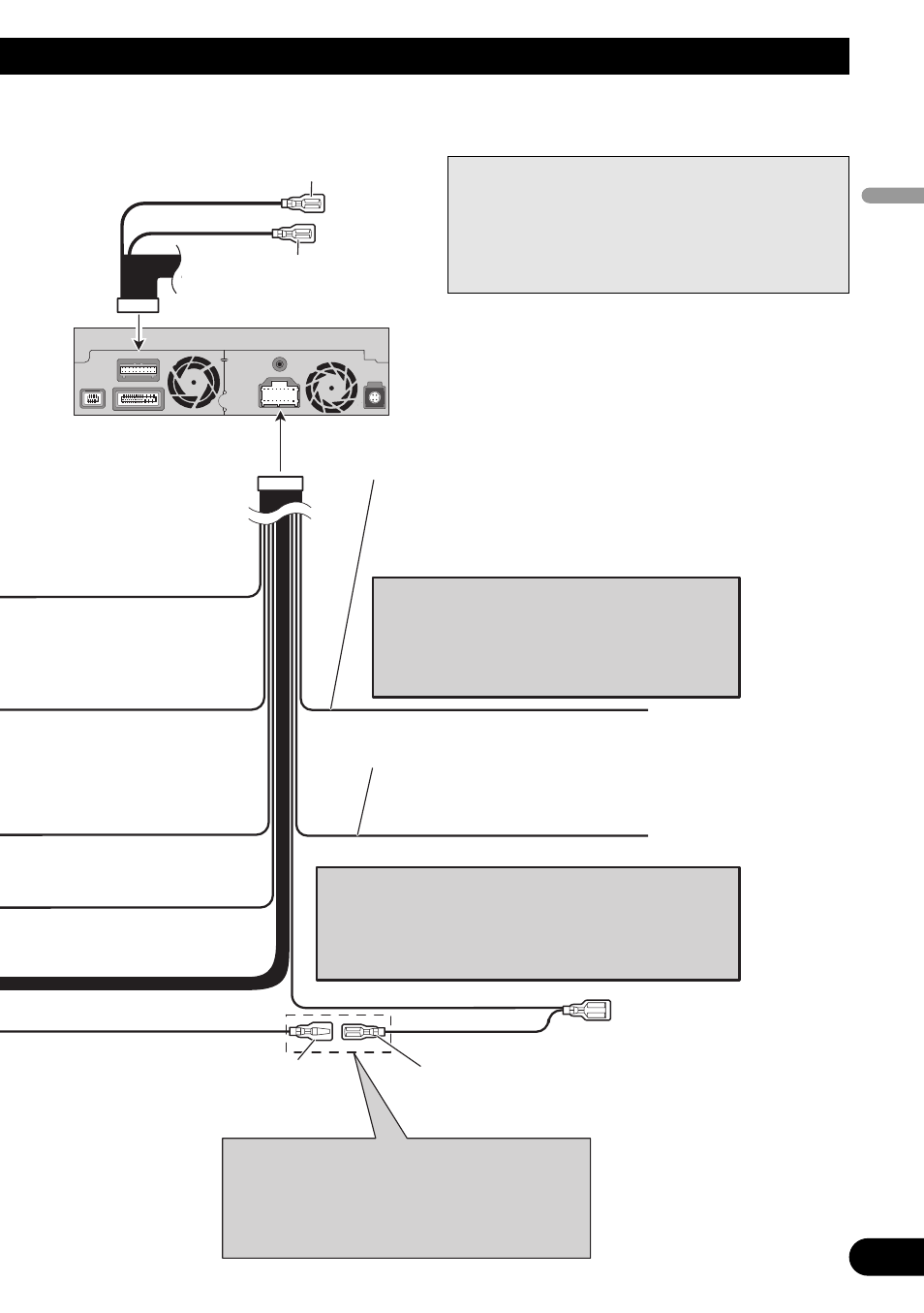

To Auto-aerial relay control terminal
(max. 300 mA 12 V DC).

Blue (*6)

Light green

ellow/black

If you use equipment with a mute function (e.g. cellular
telephones), connect that equipment to the Audio Mute
lead. If not, keep the Audio Mute lead free of any
connections.

Note:
The pin position of the ISO connector will differ
depending on the type of vehicle. Connect *6 and
*7 when Pin 5 is an aerial control type. In other
types of vehicle, never connect *6 and *7.

When the auto aerial function is used by connecting
the blue lead to the vehicle with the auto aerial function,
either turning off the ignition switch or detaching the
front panel will retract the auto aerial of the vehicle.

Note:

Audio source will be set to mute or attenuate,
while the voice guidance of the navigation
will not be muted or attenuated.
For details, see the Operation Manual.

Note:
Cords for this product and those for other products
may be different colours even if they have the same
function. When connecting this product to another
product, refer to the supplied manuals of both prod-
ucts and connect cords that have the same function.

Display unit
