9

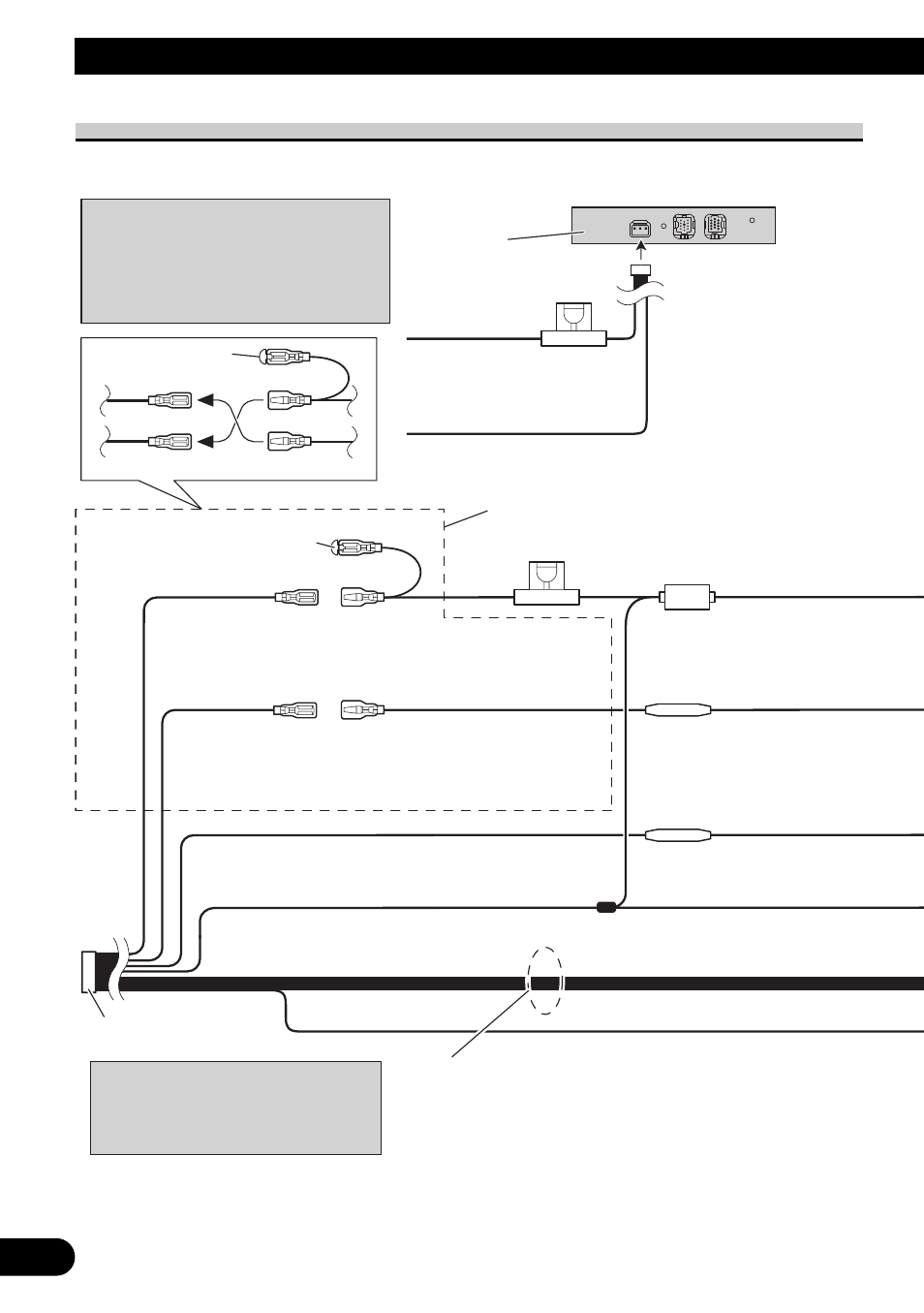

Connecting the System
Connecting the power cord (1)
Connect leads of the same
colour to each other.
C a p ( * 1
When not using this terminal,
do not remove the cap.
Fuse (10 A)
Yellow
To terminal always supplied
with power regardless of
ignition switch position.
Black (earth)
To vehicle (metal) body.
Bluetooth
adapter
(CD-BT10)
Note:
Depending on the kind of vehicle, the
function of *3 and *5 may be different.
In this case, be sure to connect *2 to *5
and *4 to *3.
Fuse (2 A)
)
ISO connector
Yellow (*2)
To terminal always supplied
with power regardless of
ignition switch position.
Red (*4)
To electric terminal controlled
by ignition switch (12 V DC)
ON/OFF.
Yellow (*3)
Back-up
(or accessory)
Red (*5)
Accessory
(or back-up)
Black (earth)
To vehicle (metal) body.
Orange/white
To lighting switch terminal.
Note:
In some vehicles, the ISO connector
may be divided into two. In this case,
be sure to connect to both connectors.
Fuse resistor
Fuse resistor
Speaker leads
White:
Front left +
White/black: Front left ≠
Grey:
Front right +
Grey/black: Front right ≠
Green: Rear left + or Subwoofer +
Green/black: Rear left ≠ or Subwoofer ≠
Violet:
Rear right + or Subwoofer +
Violet/black: Rear right ≠ or Subwoofer ≠
*1
*2
*4
*3
*5
