Parts supplied

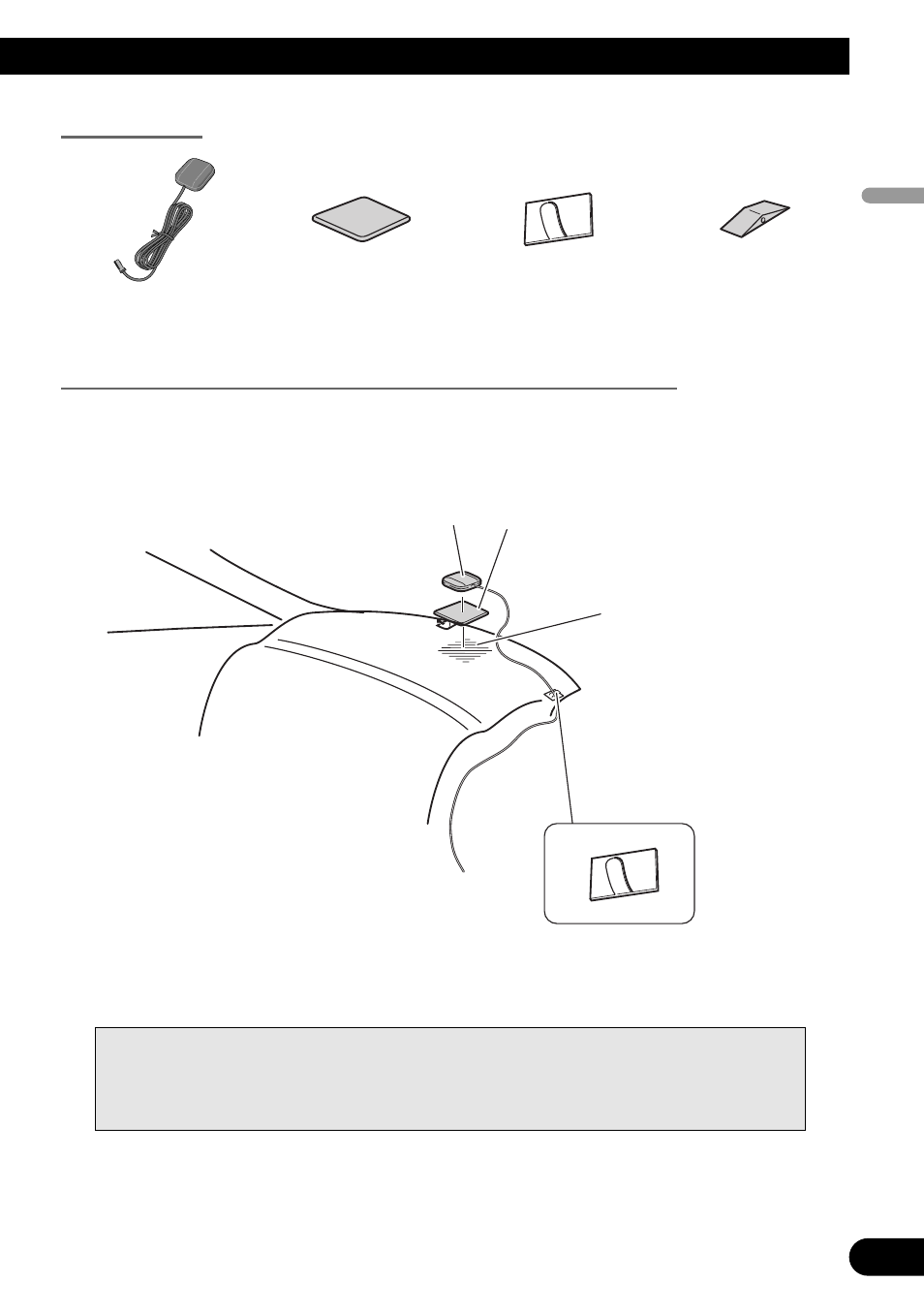

When installing the aerial inside the vehicle (on the rear shelf)
Affix the metal sheet on as level a surface as possible where the GPS aerial faces the win-
dow. Place the GPS aerial on the metal sheet. (The GPS aerial is fastened with its mag-
net.)
Notes:
• When attaching the metal sheet, do not cut it into small pieces.
• Some models use window glass that does not allow signals from GPS satellites to pass
through. On such models, install the GPS aerial on the outside of the vehicle.
Metal Sheet
Peel off the protective sheet
on the rear.
GPS aerial
Make sure the surface is
free of moisture, dust,
grime, oil, etc., before
affixing the metal sheet.
Note: The metal sheet
contains a strong adhesive
which may leave a mark on
the surface if it is removed.
Clamps
Use clamps to secure the
lead where necessary inside
the vehicle.
Waterproof pad Clamp (5 pcs.) Metal sheet GPS aerial
