• When the ignition switch is turned on (ACC ON), a control signal is output through the
blue/white lead. Connect to an external power amp’s system remote control terminal
(max. 300 mA 12 V DC). The control signal is output through the blue/white lead, even
if the front panel is detached, or the audio source is switched off.
• When an external power amp is being used with this system, be sure not to connect the
blue lead to the amp’s power terminal. Likewise, do not connect the blue lead to the
power terminal of the auto aerial. Such connection could cause excessive current drain
and malfunction as well as damage to the auto aerial of the vehicle.

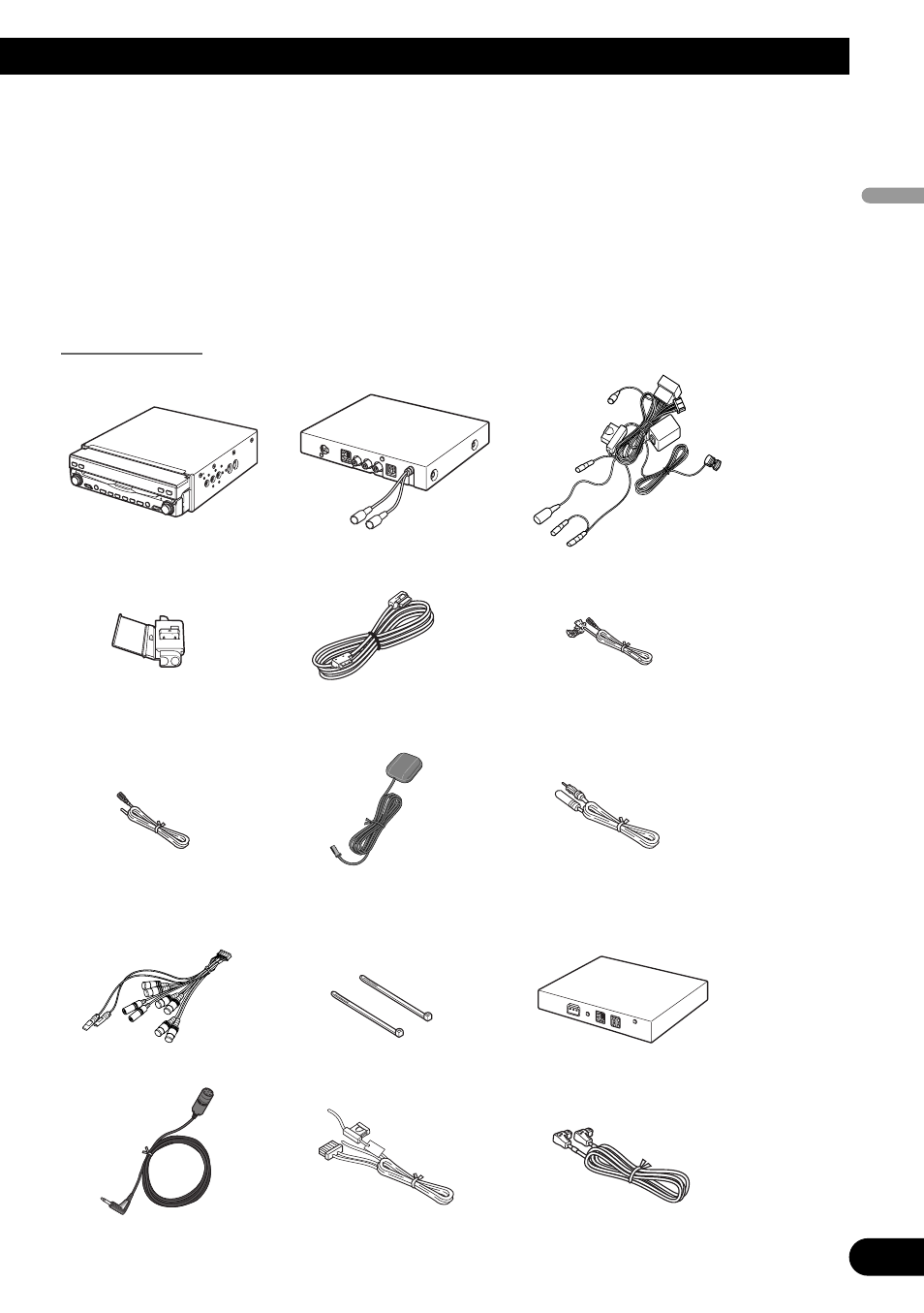

Parts supplied
IP-BUS cable Power cord Microphone
Bluetooth adapter Lock tie System extension connector
Extension aerial cable GPS aerial Extension lead
(for speed signal)
Extension lead
(for reverse signal)
30-pin cable Connector
Power cord Hide-away unit Display unit
