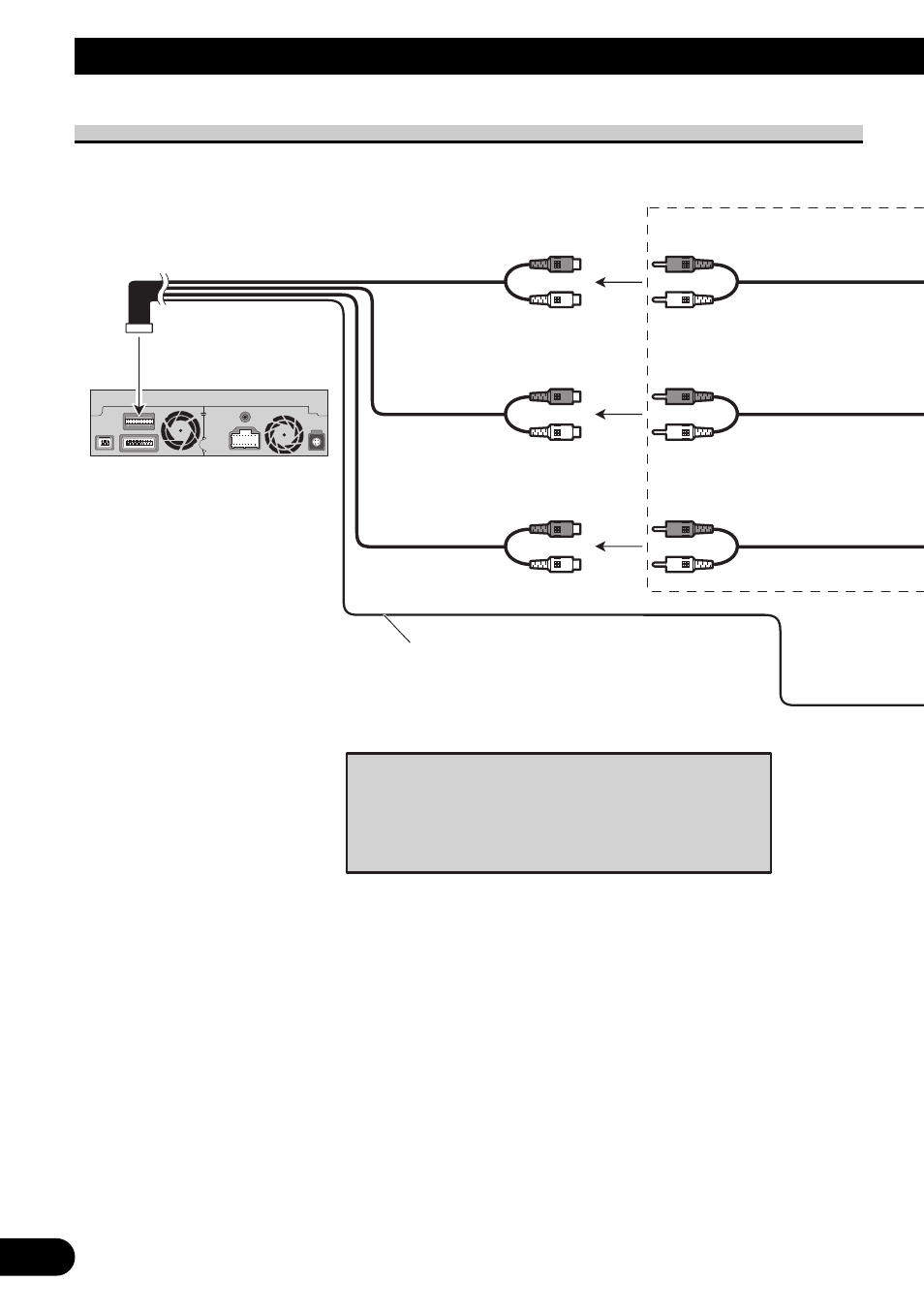

Connecting the System

Display unit

Front output
(FRONT OUTPUT)

Subwoofer output
or non-fading output
(SUBWOOFER OUTPUT or
NON-FADING OUTPUT)

Rear output
(REAR OUTPUT)

15 cm

20 cm

15 cm

Blue/white
To system control terminal of the power amp
(max. 300 mA 12 V DC).
Do not connect this lead to Auto-aerial control
terminal.

Note:
When a subwoofer is connected to this product instead
of a rear speaker, change the rear output setting in
the Initial Setting. (Refer to the Operation Manual.)
The subwoofer output of this product is monaural.

When connecting to separately sold power amp
