17
En
English
Published by Pioneer Corporation.
Copyright © 2008 Pioneer Corporation.
All rights reserved.

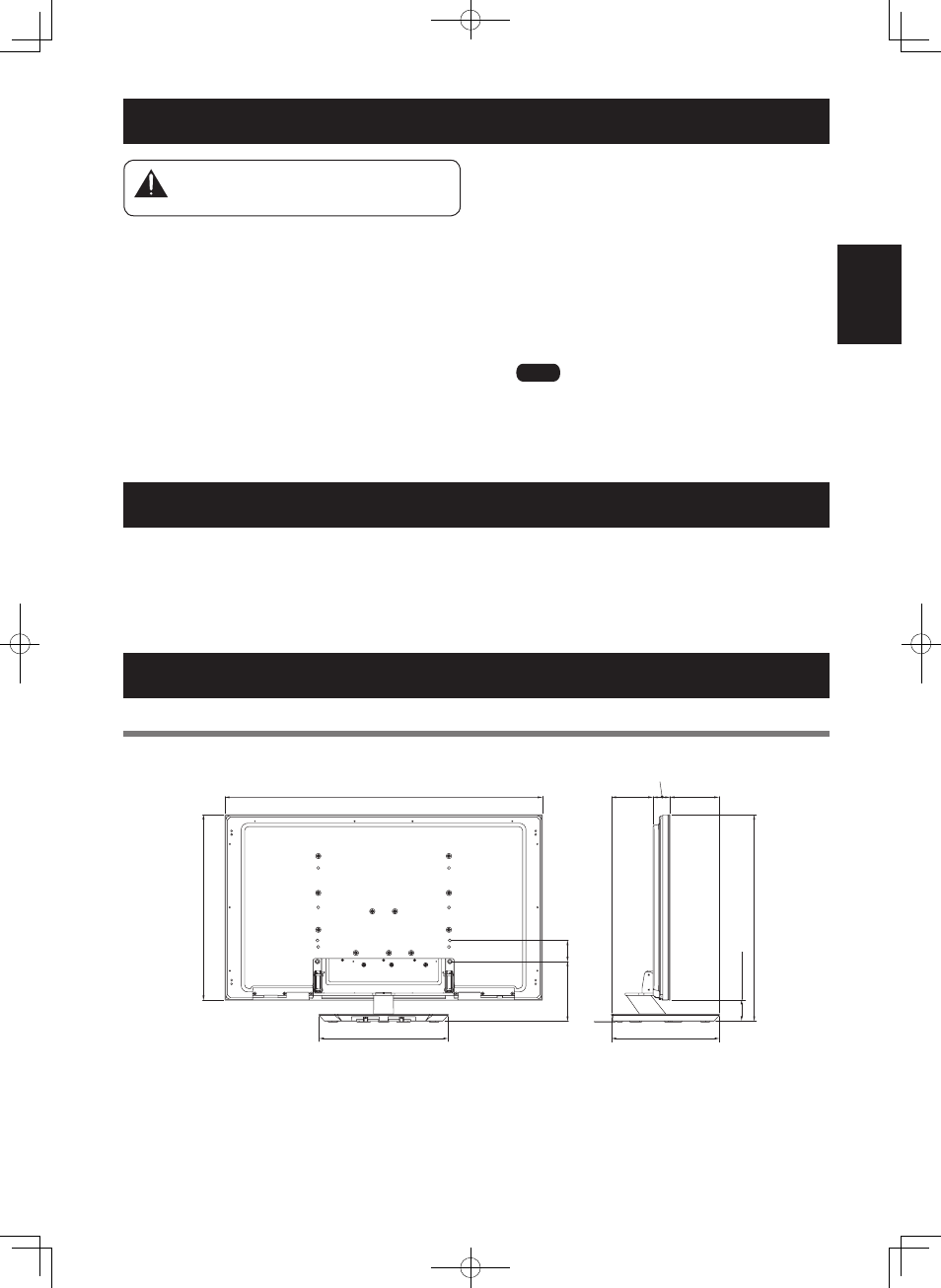

Dimensions Diagram
50 inch display model (PRO-101FD/KRP-500A/KRP-500M) (without speakers)
Unit: mm (inch)
159
(6-1/4)
187
(7-3/8)
225
(8-27/32)
80
(3-5/32)
64 (2-17/32)
1233 (48-17/32)
723 (28-15/32)
410 (16-5/32) 490 (19-9/32)
81（
3-3/16
）
804 (31-21/32)
Detaching the Pioneer Display and Television from the Stand
To remove the Pioneer display and television
from the stand, be sure to always follow the
procedure described below to prevent accidents.
1
Turn off the power and remove the power
plug from the power outlet and the cables
from the connectors.
2
Remove the fall-prevention straps and cords.
3
First, confirm that the forward/backward
inclination anchor bolt is securely tightened.
4
First clear a space on a flat floor etc. where you
can lay the Pioneer display and television flat,
then lay a sheet to protect it from scratches or
other damage.
5
Remove the speakers.
6
Referring to steps 3 and 4 in “Attaching the
Pioneer Display and Television” (Page 13),
remove the installation screws (4 screws).
7
Holding the Pioneer display and television by
its handles and from the top, slowly lift the
display vertically.
8
Place the Pioneer display and television slowly
onto the sheet laid out in step 4 with its screen
facing downwards.
œÌi
When reattaching the Pioneer display and television to the
stand, be certain that the left/right support columns are
set at the same angle.
Specifications
External dimensions 533 mm (W) × 339.4 mm (H) × 410 mm (D) (20-31/32 inch (W) x 13-3/8 inch (H) x 16-5/32 inch (D))
Weight 10.7 kg (23.6 lbs)
• The above specifications and exterior may be modified without prior notice to improve the product.
Caution
