13
En
English
2

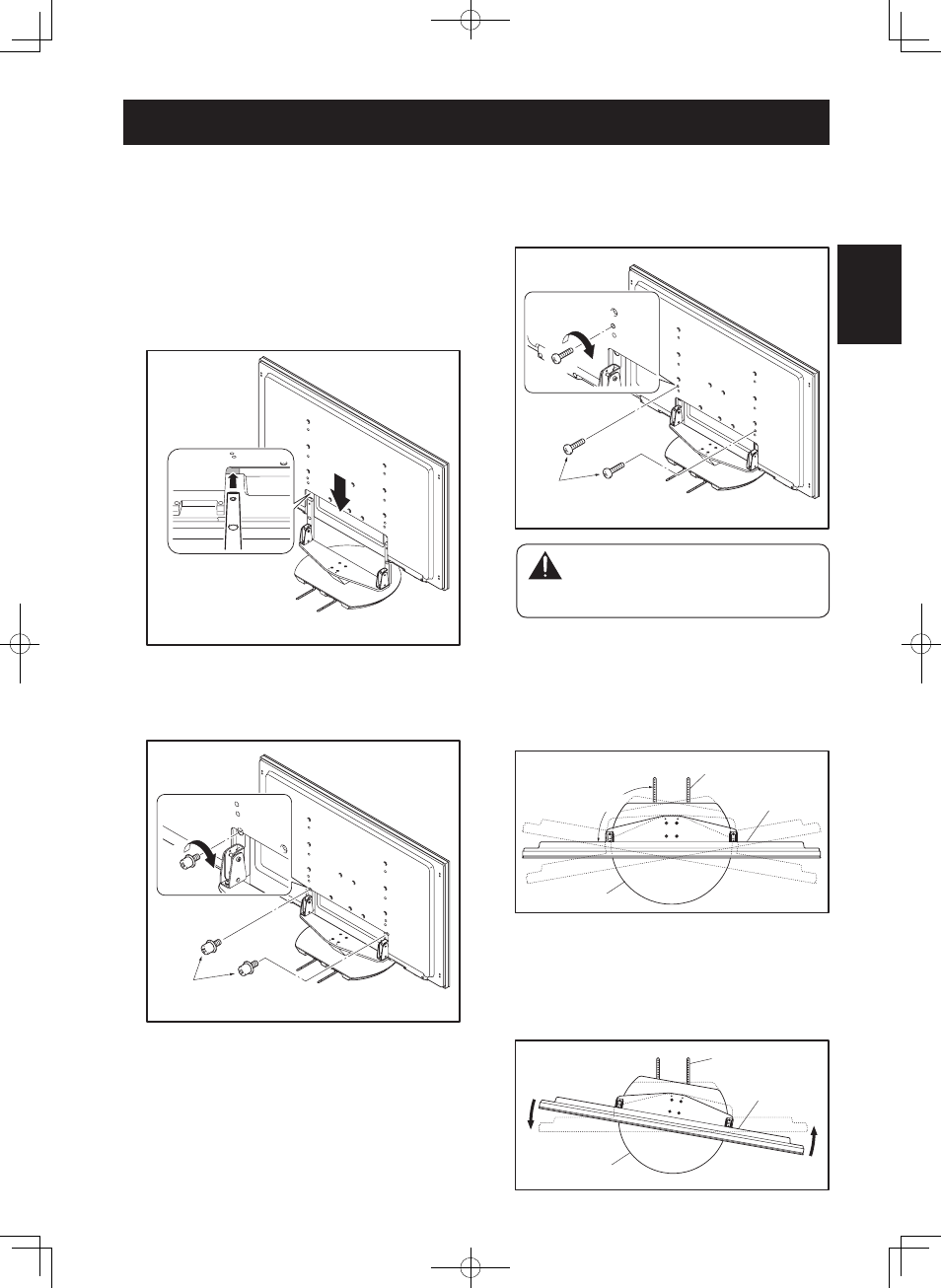

Attaching the Pioneer display and television to
the stand.
Fit the stand’s support columns to the bottom of the
Pioneer display and television as indicated by the arrows,
then slowly insert them vertically. Be extremely careful
not to insert the support columns of the stand into any
part of the Pioneer display and television other than the
stand insertion slots. Note that doing so might damage
the Pioneer display and television panel or its ports or
result in the warping of the stand.
Line up the column
supports with the bottom
of the Pioneer display and
television as indicated in
the accompanying
diagram.
3
Securing the Pioneer display and television
with Installation screws 2.
Fix the screws with a Phillips screwdriver.
Screws �
(M8 × 15 mm: black)
Attaching the Pioneer Display and Television
4
Securing the Pioneer display and television
with Installation screws 3.
Attach the Pioneer display and television at the points
marked with “T” using a Phillips screwdriver.
Screws �
(M8 × 23 mm: black)
Caution
There have been cases where unforeseen
accidents such as the equipment breaking or
falling over occurred because the stand was
installed with wrong screws.
5
Finding the center of the rotation range of the
stand.
The state in which the fall-prevention straps attached to
the stand are at a right angle in relation to the Pioneer
display and television is the center of the angle of
rotation of the stand.
Pioneer display
and television
Table top stand
Fall-prevention strap
90°
If the fall-prevention straps lean toward the left in relation
to the Pioneer display and television, the rotation angle
of the stand can be adjusted to the center by turning the
display toward the left so that the fall-prevention straps
form a right angle in relation to the Pioneer display and
television.
Pioneer display
and television
Table top stand
Fall-prevention strap
