Forward/Backward Angle of Inclination Adjustment Mechanism
On this stand, you can adjust the angle of inclination of the
Pioneer display and television within a range of approximately
2° forward or backward according to your preference.
œÌi
• Be sure to adjust the angle only after you have
attached the Pioneer display and television.
• Be sure to install it on a flat table or other flat
surface.
• Be sure to hold the top of the Pioneer display
and television with your hand while adjusting
the angle.

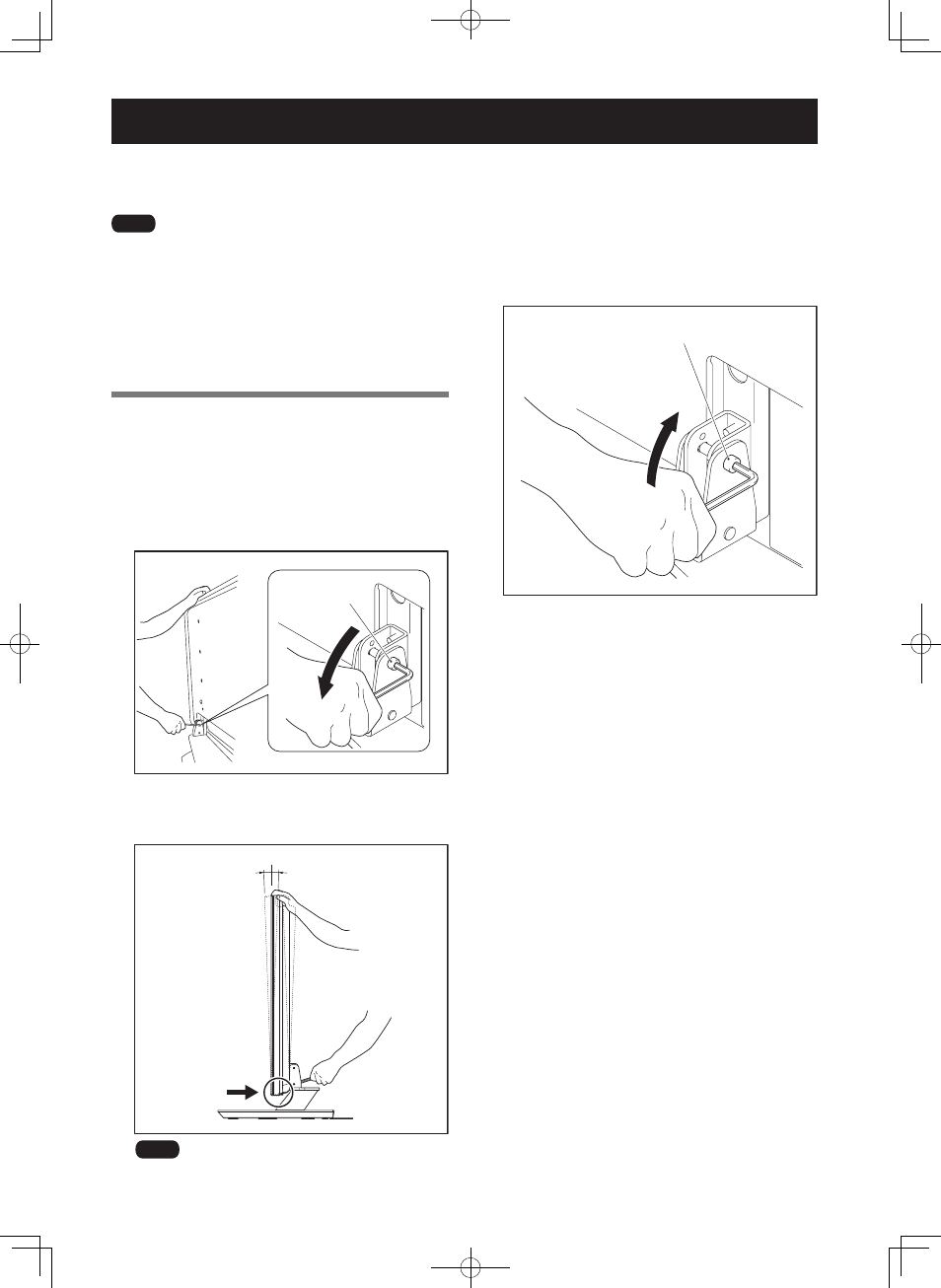

Adjustment Procedure
1
Loosen the forward/backward inclination
anchor bolts using the enclosed hexagonal
wrench (2 locations on the left and right).
While being sure to hold the top of the Pioneer display
and television with your hand, loosen the forward/
backward inclination anchor bolts
on the left and
right sides by rotating them counterclockwise using the
enclosed hexagonal wrench.
Forward/backward
inclination anchor bolt
Loosening
2
Set the angle you prefer.
Set the angle you prefer by slowly moving the Pioneer
display and television.
2° 2°
œÌi
While adjusting the angle, be very careful to keep your
hands out of the place indicated by the arrow on the
figure.
3
Tighten the forward/backward inclination
anchor bolts (2 locations on the left and right).
Firmly tighten the forward/backward inclination
anchor bolts
on the left and right sides by rotating them
clockwise using the enclosed hexagonal wrench.
Be sure to hold the top of the Pioneer display and
television with your hand until you have fully tightened
the bolts.
Forward/backward
inclination anchor bolt
Tightening
4
Check once more to make sure that the
forward/backward inclination anchor bolts are
fully tightened.
