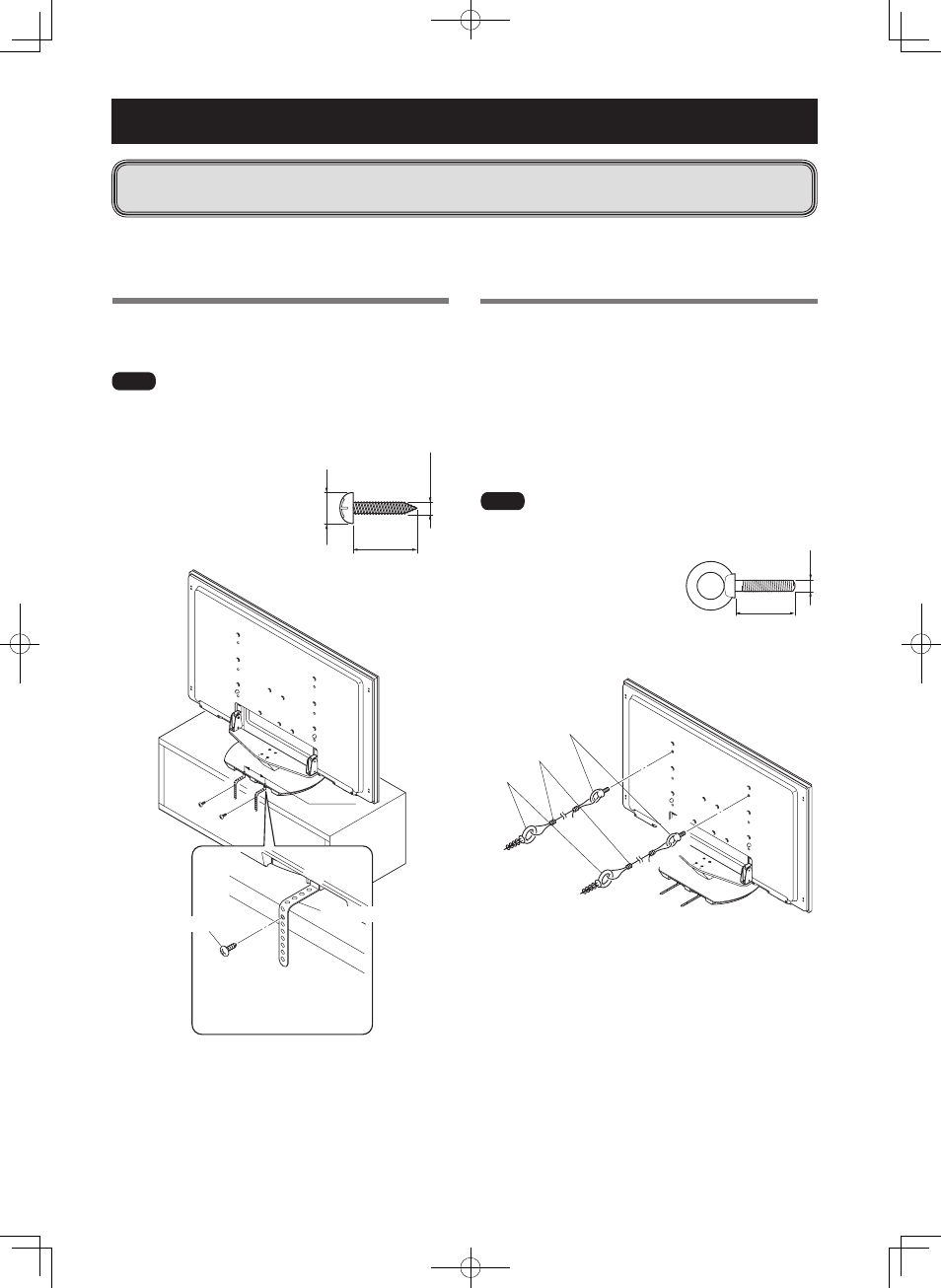

Preventing Equipment from Falling Over
Using a wall for stabilization
1
Attaching falling prevention bolts to the
Pioneer display and television.
2
Using strong cords to stabilize it appropriately
and firmly to a wall, pillar, or other sturdy
element.
• Perform this work in the same way on the left and
right sides.
• The length of the cords used must be long enough to
allow the stand to rotate freely.
œÌi
• Do not use bare metal wire for the cords. The wire ends may
cause electric shock and fire if they get inside the Pioneer
display and television through the
ventilation holes.
• Use falling prevention bolts, ropes
and fittings that are available on
the market.
Recommended bolts:
Nominal diameter M8
Length 12 mm to 15 mm (1/2 to 5/8 inch)
1
Falling prevention bolts
2
Cords
Fittings
Stabilizing on TV table or other location
Fix the Pioneer display and television to a TV table using the
fall-prevention straps as in the diagram.
Fix the racks etc. using screws for sale on the market.
œÌi
• The Pioneer display and television being quite heavy, a TV
table that is sturdy enough to support it, and with sufficient
width and depth to ensure that it does not fall over should
always be used.
• To stabilize the Pioneer display
and television on a TV table,
use screws that have a nominal
diameter of 6 mm (1/4 inch).
Select the appropriate screws
after consulting a professional
installer if necessary.
Make a pilot hole in the rack’s
top board (center of the board’s
thickness), and fix the strap
with a store-bought screw.
136 mm
Screw
(commercially available)
Fall-prevention strap
After installing the stand, be sure to take special care to ensure that the Pioneer display and
television will not fall over.
• Because of the Pioneer displays and televisions weight, if it could fall down, this can result in injury.
• For safety, be sure to take special care to ensure that the Pioneer display and television will not fall over.
Min. 20 mm
(13/16 inch)
6 mm (1/4 inch)
9 mm to 15 mm (3/8 to 5/8 inch)
12 mm to 15 mm
(1/2 to 5/8 inch)
M
8
