Connecting your TV with no HDMI input

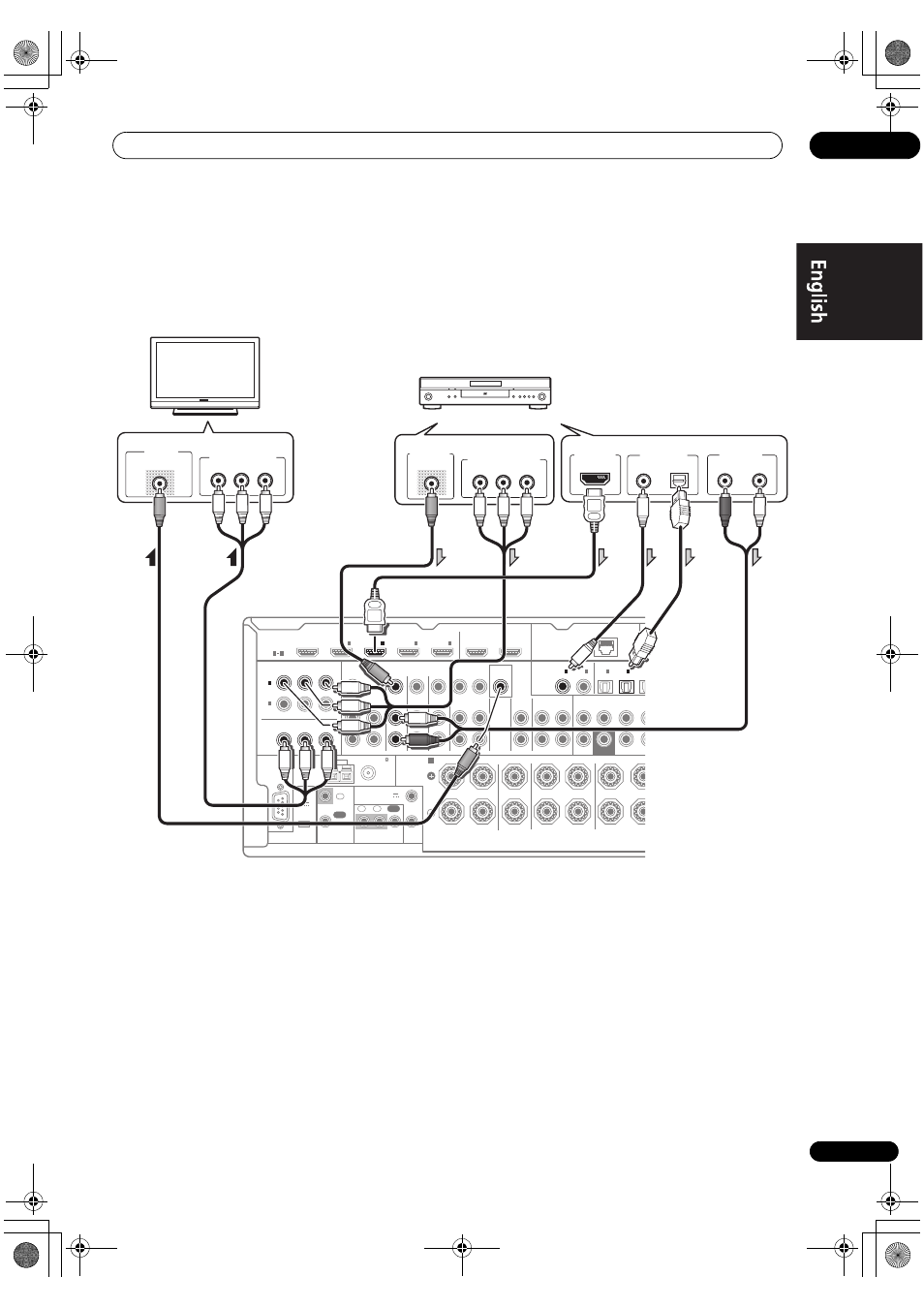

This diagram shows connections of a TV (with no HDMI input) and DVD player (or other playback component) to the
receiver.
• With these connections, the picture is not output to the TV even if the DVD player is connected with an HDMI cable.
Connect the DVD player’s video signals using a composite or component cord.
• Connect using an HDMI cable to listen to HD audio
on the receiver. Do not use an HDMI cable to input
video signals.
Depending on the video component, it may not be
possible to output signals connected by HDMI and
other methods simultaneously, and it may be
necessary to make output settings.
Please refer to the
operating instructions supplied with your component
for more information.
• If you want to listen to the sound of the TV over the
receiver, connect the receiver and TV with audio
cables (see page 15).
