Appendix
A
Transmission Result Notices and Indication Function 67

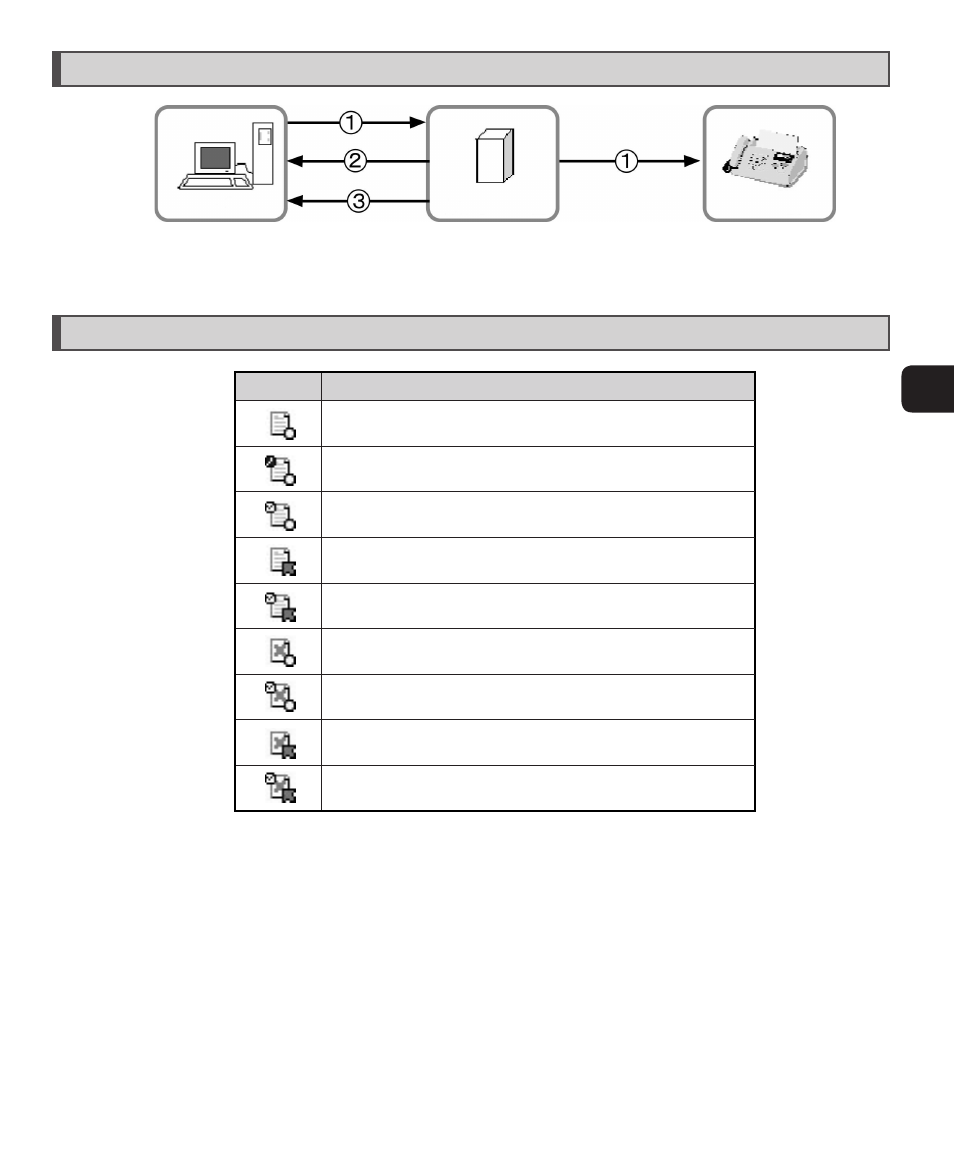

Flowchart of Transmission Result Notifi cation
Fax machine PC Network FAX
(1) Sends fax data.
(2) If transmission process from Network FAX to fax machine is successful, data will be stored in Sent folder.
(3) If transmission process from Network FAX to fax machine fails, data will be stored in Undelivered folder.
Icons for Data Handled in Transmission Result Notifi cation
Time indication document transmission result notification - not received
Icon Requirements
Time indication document transmission - waiting status
Transmission result notification - waiting status
Transmission result notification - transmission failed
Time indication document transmission result notification - transmission failed
Transmission result notification - not received
Time indication document transmission result notification - transmission
successful
Transmission result notification status/Transmission result notification -
transmission success
Time indication document transmission result notification - waiting status
* When there is a mark on the bottom right of an icon, it shows that there is data for the transmission result notifi cation.
A list of all the icons is printed on the next page.
