Norgren C/146200 LINTRA PLUS - Manual (Page 6)

C/146000, C/146100, C/146200
3/10 N/us 1.6.009.06 Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
External adjustable guide. C/146100/MD
Fy. Fz
Mx My. Mz (Nm) x=4" x=6" x=8" x=10" x=12" x=14" x=16" x=18" x=20"
Ø mm lbf (N) lbf in (Nm) x min.=E (100 mm) (150 mm) (200 mm) (250 mm) (300 mm) (350 mm) (400 mm) (450 mm) (500 mm)
lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm)
16 90 36 120 156 204 252 312 360 420 480 528 588
(400) (4) (14) (17) (23) (29) (35) (41) (48) (54) (60) (66)
20 211.33 1296 6768 – 8496 10512 1272 1236 1404 1572 1740 1920
(940) (12) (64) – (80) (99) (119) (139) (158) (178) (197) (217)
25 265.29 156 852 – 936 1164 1368 1596 1812 2040 2256 2472
(1180) (18) (96) – (106) (131) (155) (180) (205) (230) (255) (279)
32 350.72 300 1368 – – 1596 1884 2172 2460 2748 3036 3324
(1560) (34) (155) – – (181) (213) (246) (278) (310) (343) (375)
40 674.46 696 3480 – – – 3852 4392 4932 5472 6012 6552
(3000) (78) (393) – – – (435) (496) (557) (618) (679) (740)
50 899.28 1152 4044 – – – 4044 4584 5124 5652 6192 6732
(4000) (130) (457) – – – (457) (518) (579) (639) (700) (761)
63 1438.85 2124 11328 – – – – – 12036 13272 14424 15660
(6400) (240) (1280) – – – – – (1360) (1500) (1630) (1770)
80 1753.60 3192 16908 – – – – – – 17172 18672 20088
(7800) (360) (1910) – – – – – – (1940) (2110) (2270)

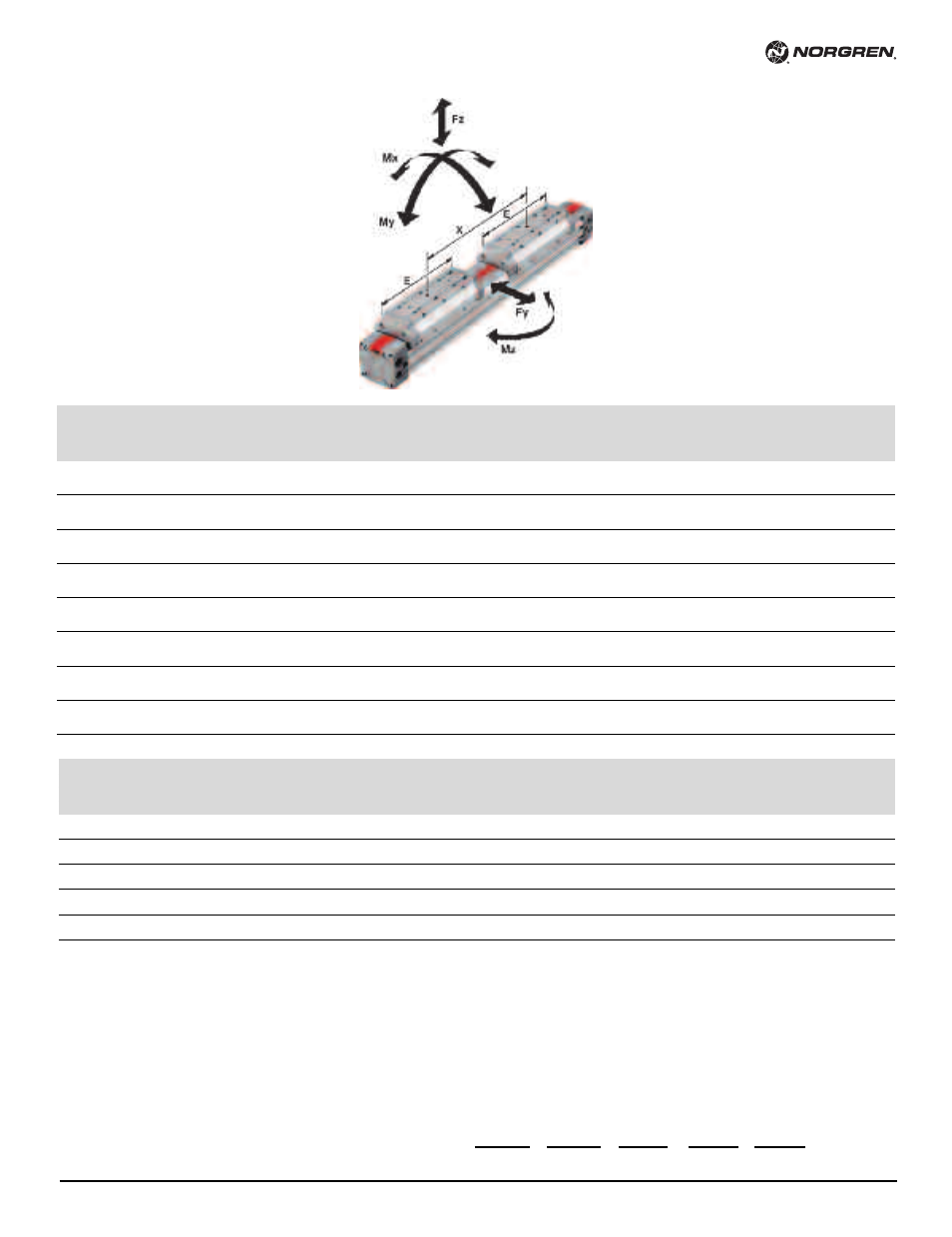

The values given in the table below show the single forces in the
directions Fy and Fz and the maximum moments Mx, My and Mz.
All values are applicable only for speeds of max. 0.2 m/s.
A requirement for using these values is a constant movement (no
jerking) of the mass over the whole stroke length of the cylinder.
The reference point from which the moments for all cylinders should
be calculated is the center line of the pistons. For speeds up to 2 m/s please use our calculation program
LINTRA
® PNEUCALC. It is available upon request.
When a LINTRA ® cylinder has to take several loads and moments. an
additional calculation is necessary using this formula:
C/146100/MD
Loading values for LINTRA ® cylinders
with double carriages
Mx
+
My
+
Mz
+
Fy
+
Fz
< _ 1
Mx max My max Mz max Fy max Fz max
Precision roller guide C/146200/MD
Fy. Fz
Mx My. Mz x=4" x=6" x=8" x=10" x=12" x=14" x=16" x=18" x=20"
Ø mm lbf (N) lbf in (Nm) x min.=E (100 mm) (150 mm) (200 mm) (250 mm) (300 mm) (350 mm) (400 mm) (450 mm) (500 mm)
lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm) lbf in (Nm)
25 265 228 1104 – 1224 1500 1788 2076 2364 2652 2940 3216
(1180) (26) (125) – (138) (170) (202) (234) (267) (299) (332) (363)
32 351 444 1788 – – 2076 2448 2832 3192 3564 3948 4320
(1560) (50) (202) – – (235) (277) (320) (361) (403) (446) (488)
40 674 1032 4524 – – – 5004 5712 6408 7104 7812 8520
(3000) (116) (511) – – – (566) (645) (724) (803) (883) (962)
50 899 1716 5256 – – – 5256 5952 6660 7356 8052 8748
(4000) (194) (594) – – – (594) (673) (753) (831) (910) (989)
63 1439 3192 14724 – – – – – 15648 16368 18756 20364
(6400) (360) (1664) – – – – – (1768) (1850) (2119) (2301)
Loading values applicable to a speed of √0.2 m/s. Maximum working life is normally reached below a speed of 1 m/s.
* The forces and moments refers to the center of the guide. They must not be exceeded in dynamic applications.
