Norgren C/146200 LINTRA PLUS - Manual (Page 3)

N/us 1.6.009.03
C/146000, C/146100, C/146200
3/10 Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.

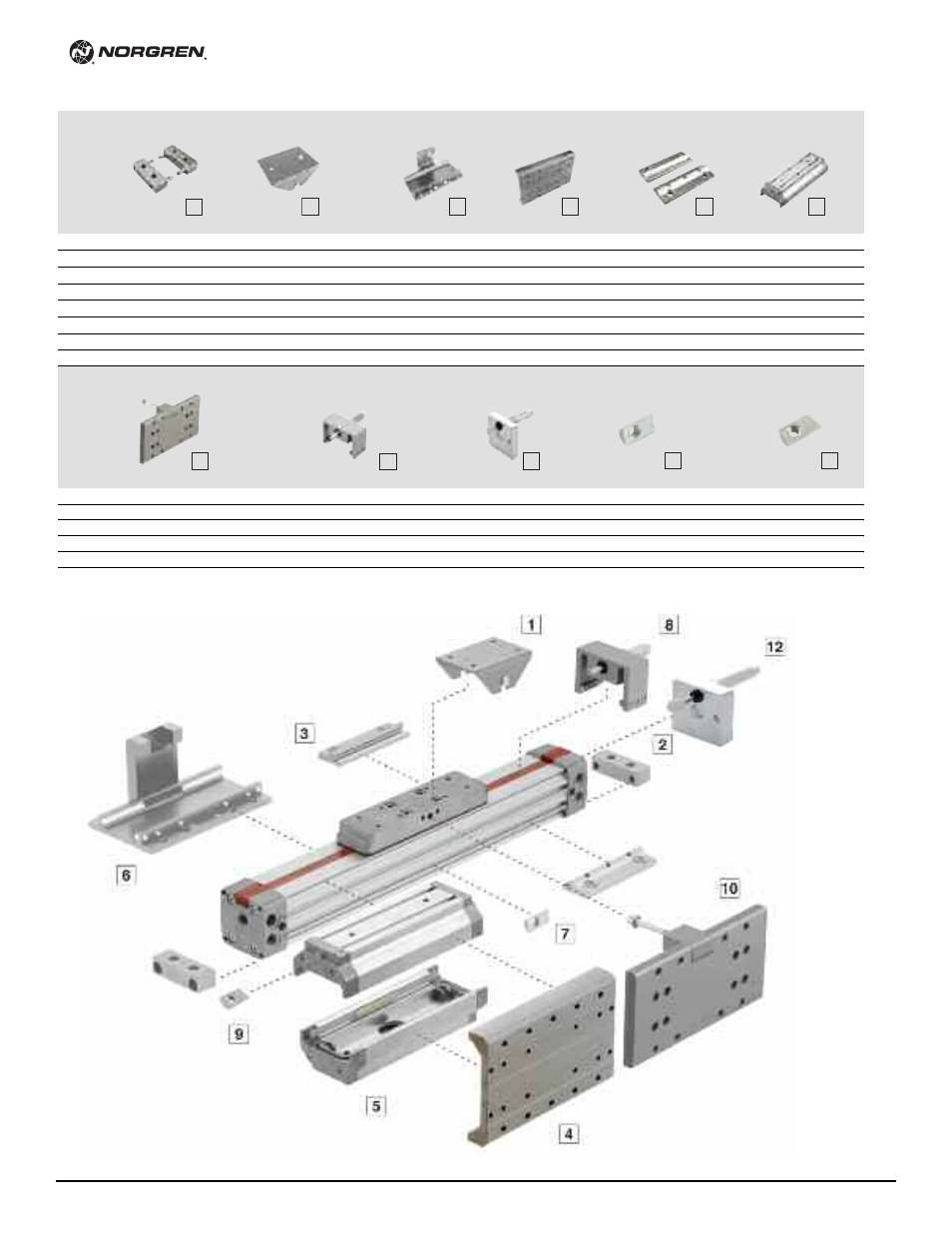

Mountings
Type C Type S Type UV Type UW Type V Type W
Foot Mount Swinging Bridge Carriage Bracket Side Mounting Center Support Secondary
Plate Carriage
Ø mm Page 21 Page 23 Page 22 Page 24 Page 21 Page 24
16 QM/146016/21 QM/146016/37 QM/146016/34 - QM/146016/32 QM/146116/35
20 QM/146020/21 QM/146020/37 QM/146020/34 QM/146120/36 QM/146020/32 QM/146120/35
25 QM/146025/21 QM/146025/37 QM/146025/34 QM/146125/36 QM/146025/32 QM/146125/35
32 QM/146032/21 QM/146032/37 QM/146032/34 QM/146132/36 QM/146032/32 QM/146132/35
40 QM/146040/21 QM/146032/37 QM/146040/34 QM/146140/36 QM/146040/32 QM/146140/35
50 QM/146050/21 QM/146050/37 QM/146050/34 QM/146150/36 QM/146050/32 QM/146150/35
63 QM/146063/21 QM/146050/37 QM/146063/34 QM/146163/36 QM/146063/32 QM/146163/35
80 QM/146080/21 QM/146080/37 QM/146080/34 - QM/146080/32 QM/146180/35
Assembly kit for caged ball Adjustable stop Assembly kit for Groove key for Groove key for
linear motion guide shock absorbers profile barrel guiding bridge
Ø mm Page 16 Page 24 Page 25 Page 22 Page 22
25 QM/146225/P/70 QM/146125/75 QM/146125/67 M/P74065 M/P74065
32 QM/146232/P/70 QM/146132/75 QM/146132/67 M/P74065 M/P74065
40 QM/146240/P/70 QM/146140/75 QM/146140/67 M/P74065 M/P74066
50 QM/146250/P/70 – QM/146150/67 M/P74065 M/P41858
63 QM/146263/P/70 – QM/146163/67 M/P74065 M/P41858
5
10 9 7 8
2 1 6 4 3
12
