Norgren C/146200 LINTRA PLUS - Manual (Page 29)

N/us 1.6.009.029
M/146000, M/146100, M/146200
3/10 Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.

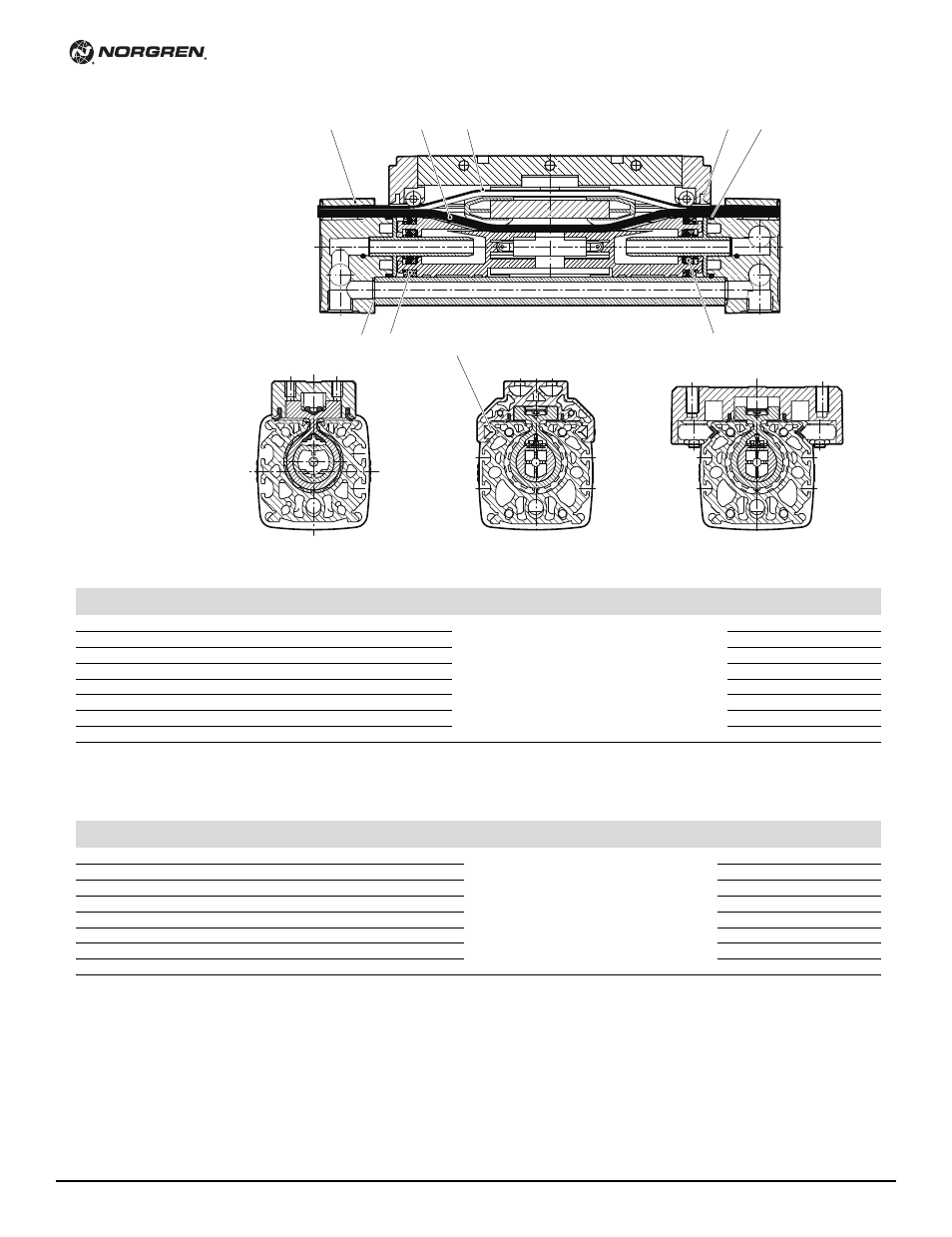

Spares Kits for cylinders
with Metric ports and stroke
in millimeters
1 2
5 6 8
3 4
7 & 9
10
For M/146000. .../M. M/146200. .../M Internally and Roller guided models
Ø Type Metric Spares kit w/seal Comprising Seal strip Cover strip
spares kit and cover strip Item Description Quantity Item 2 Item 3
16 M/146016..../M QM/146016/00 QM/146016/88/* M/P 40262/* M/P 74223/*
20 M/146020..../M QM/146020/00 QM/146020/88/* M/P 40262/* M/P 74223/*
25 M/146025..../M. M/146225..../M QM/146025/00 QM/146025/88/* M/P 40262/* M/P 74131/*
32 M/146032..../M. M/146232..../M QM/146032/00 QM/146032/88/* M/P 40344/* M/P73936/*
40 M/146040..../M. M/146240..../M QM/146040/00 QM/146040/88/* M/P 40263/* M/P73945/*
50 M/146050..../M. M/146250..../M QM/146050/00 QM/146050/88/* M/P 40626/* M/P73946/*
63 M/146063..../M. M/146263..../M QM/146063/00 QM/146063/88/* M/P 40626/* M/P73946/*
80 M/146080..../M QM/146080/00 QM/146080/88/* M/P 40715/* M/P 74232/*
1 Clamping lever (ø 25 ... 63) 2
2 + 3 Seal-/cover strip 1
4 + 5 O-ring 2
6 Seal 2
8 Seal 2
10 Wiper 1
Grease 1
* Insert stroke length in millimeters
Note: Please quote the cylinder type number when ordering spare parts
For M/146100. .../M Externally guided models
Ø Type Metric Spares kit w/seal Comprising Seal strip Mover strip
spares kit and mover strip Item Desmription Quantity Item 2 Item 3
16 M/146116..../M QM/146116/00 QM/146120/88/* M/P 40270/* M/P 74216/*
20 M/146120..../M QM/146120/00 QM/146120/88/* M/P 40262/* M/P 74223/*
25 M/146125..../M QM1/46125/00 QM/146125/88/* M/P 40262/* M/P 74131/*
32 M/146132..../M QM/146132/00 QM/146132/88/* M/P 40344/* M/P73936/*
40 M/146140..../M QM/146140/00 QM/146140/88/* M/P 40263/* M/P73945/*
50 M/146150..../M QM/146150/00 QM/146150/88/* M/P 40626/* M/P73946/*
63 M/146163..../M. QM/146163/00 QM/146163/88/* M/P 40626/* M/P 73946/*
80 M/146180..../M QM/146180/00 QM/146180/88/* M/P 40715/* M/P 74232/*
1 Clamping lever (ø 25 ... 63) 2
2 + 3 Seal-/cover strip 1
4 + 5 O-ring 2
6 Seal 2
7 Guide bar 4
8 Seal 2
9 Felt 2
10 Wiper 1
Grease 1
* Insert stroke length in millimeters
Note: Please quote the cylinder type number when ordering spare parts
Internal External Roller
