C/146000, C/146100, C/146200
3/10 N/us 1.6.009.014 Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.

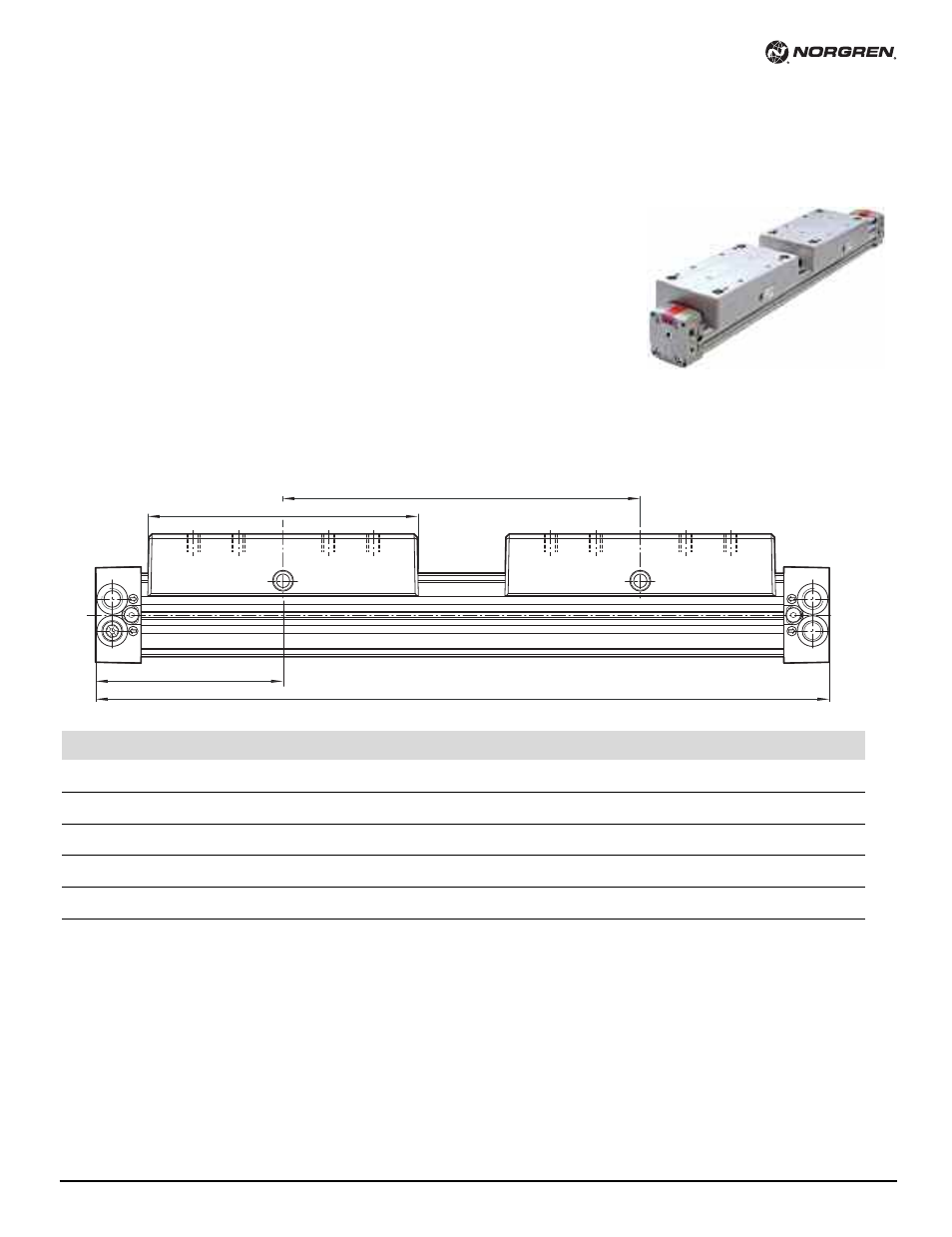

C/146200/MD – cylinder with precision roller guide and double carriages
Type Ø A E X min. X max. Weight Weight
at 0 mm per 100 mm
C/146225/MD/... 25 3.94 5.91 5.91 19.69 5.7 lbs. 0.44 lbs.
(100) (150) (150) (500) 2.60 kg 0.20 kg
C/146232/MD/... 32 4.72 7.09 7.09 19.69 9.3 lbs. 0.88 lbs.
(120) (180) (180) (500) 4.20 kg 0.40 kg
C/146240/MD/... 40 5.91 8.46 8.46 19.69 15 lbs. 1 lbs.
(150) (215) (215) (500) 7.00 kg 0.45 kg
C/146250/MD/... 50 7.09 9.84 9.84 19.69 24 lbs. 2 lbs.
(180) (250) (250) (500) 11.1 kg 0.90 kg
C/146263/MD/... 63 8.46 12.60 12.60 19.69 45 lbs. 2.2 lbs.
(215) (320) (320) (500) 20.6 kg 1.00 kg
E
X
A
2 x A + X + Stroke
Cylinder with precision roller guide
and double carriages
C/146200/MD
ø 25 to 63 mm
