Norgren C/146200 LINTRA PLUS - Manual (Page 23)

N/us 1.6.009.023
M/146000, M/146100, M/146200
3/10 Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
Type Ø GA GB GC Ø GE Ø GF GG Weight
QM/146225/P/70 25 4.37 0.71 0.20 0.13 0.26 1.38 0.62 lbs.
(111) (18) (5) (3.4) (6.5) (35) 0.28 kg.
QM/146232/P/70 32 5.31 1.02 0.18 0.18 0.31 2.09 1.04 lbs.
(135) (26) (4.5) (4.5) (8) (53) 0.47 kg.
QM/146240/P/70 40 6.97 1.02 0.18 0.18 0.31 2.09 1.04 lbs.
(177) (26) (4.5) (4.5) (8) (53) 0.47 kg.
QM/146250/P/70 50 8.46 1.57 0.26 0.26 0.43 2.76 2.91 lbs.
(215) (40) (6.5) (6.6) (11) (70) 1.32 kg.
QM/146263/P/70 63 11.22 1.57 0.26 0.26 0.43 2.76 3.97 lbs.
(285) (40) (6.5) (6.6) (11) (70) 1.80 kg.
ø
G
E
ø
G
F G
G
GC GB
GA
10 11 12
8 A
A
B
A
B
Kit consists of:
Adapter plate
Driver and
mounting hardware
12
11 Standard cylinder C/146000
Assembly kit for caged ball
linear motion guide
8
10
Center bore Ø 6 H7 . 4 deep
Not included: Recommended
supplier/series
for caged ball linear motion guide
Cylinder Ø 25
THK/SHW12CAM
Cylinder Ø 32 and 40
IKO/LWFF33
NSK/LW17ELZ
THK/SHW17CAM
Cylinder Ø 50 & 63
IKO/LWFF42
NSK/LW27ELZ
THK/SHW27CA

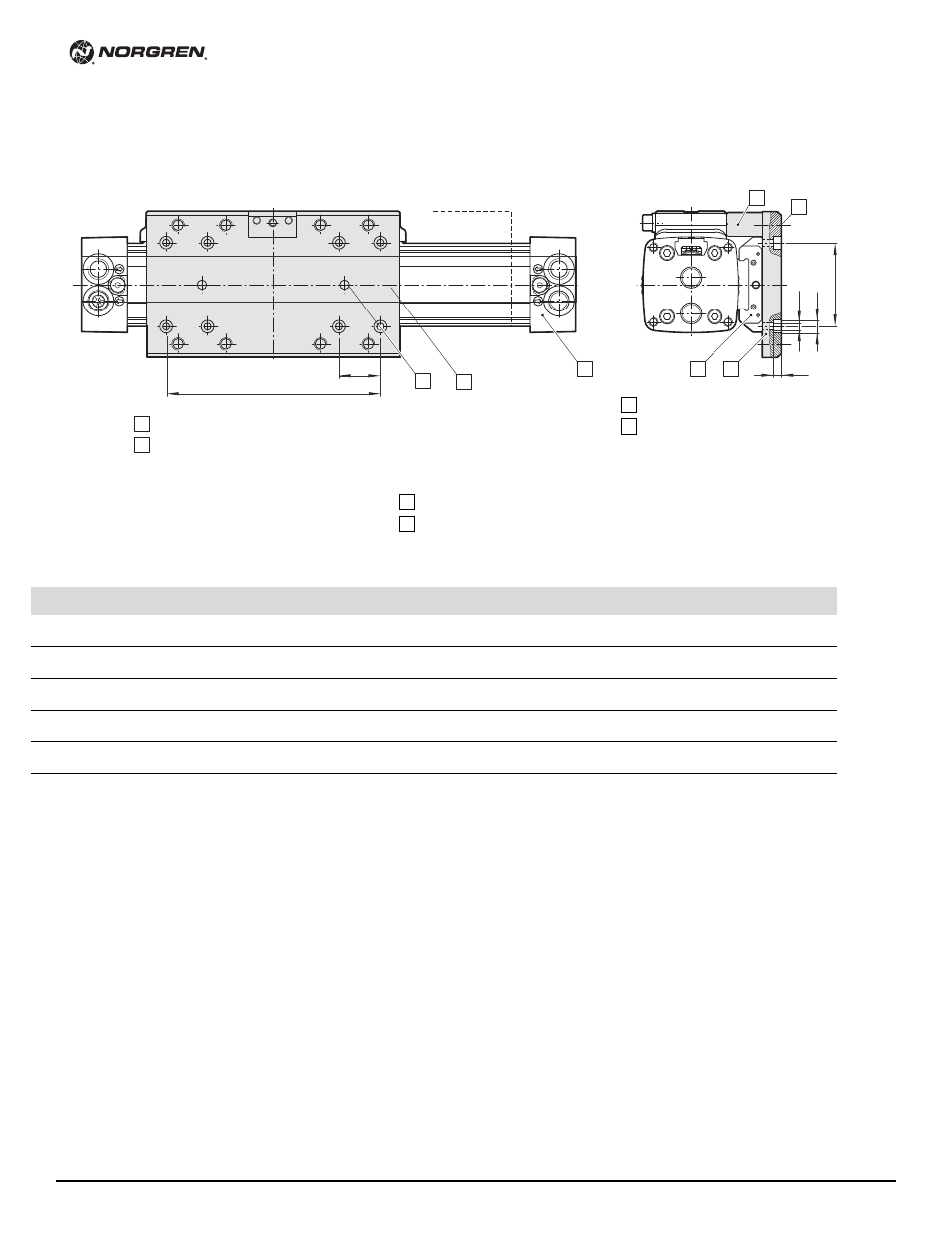

QC/146200/PM/70 – assembly kit for caged ball linear motion guide (ø 25 ... 63 mm)
