Norgren C/146200 LINTRA PLUS User Manual
Page 11
N/us 1.6.009.011
C/146000, C/146100, C/146200
3/10
Our policy is one of continued research and development. We therefore reserve the right to amend,
without notice, the specifications given in this document.
Type
Ø
A
E
X min.
X max.
Weight at 0 mm
Weight per 100 mm
M/146116/D
16
2.46
3.15
3.15
19.69
0.44 lbs.
0.22 lbs.
(62.5)
(80)
(80)
(500)
0.20 kg
0.10 kg
C/146120/D
20
3.35
4.33
4.33
19.69
1.75 lbs.
0.33 lbs.
(85)
(110)
(110)
(500)
0.80 kg
0.15kg
A
X
2 x A + X + Stroke
E
* For 32 mm bore X min = E + (2 x E1)

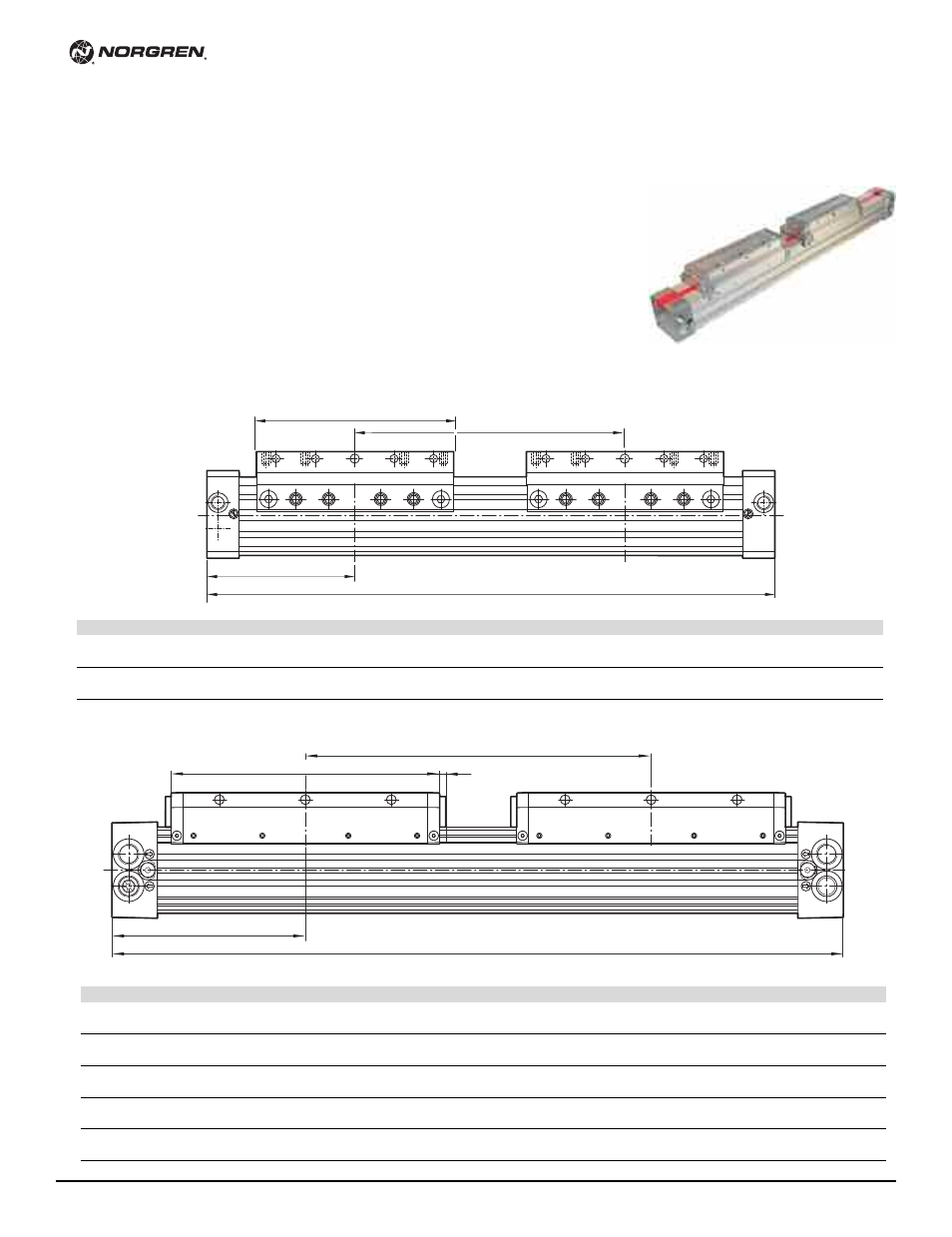

C/146100/MD – cylinder with external adjustable guide and double carriages (ø 25 ... 63 mm)
E
A
2 x A + X + Stroke
X
E1
Type
Ø
A
E
E1
X min.=E*
X max.
Weight at 0 mm
Weight per 100 mm
C/146125/MD
25
3.94
5.12
–
5.12
19.69
3.3 lbs.
0.44 lbs.
(100)
(130)
–
(130)
(500)
1.50 kg
0.20 kg
C/146132/MD
32
4.72
6.30
0.16
6.61
19.69
4.4 lbs.
0.66 lbs.
(120)
(160)
(4)
(168)
(500)
2.00 kg
0.30 kg
C/146140/MD
40
5.91
8.46
–
8.46
19.69
7 lbs.
0.93 lbs.
(150)
(215)
–
(215)
(500)
3.20 kg
0.42 kg
C/146150/MD
50
7.09
9.84
–
9.84
19.69
12 lbs.
1.4 lbs.
(180)
(250)
–
(250)
(500)
5.40 kg
0.62 kg
C/146163/MD
63
8.46
12.60
–
12.60
19.69
18.5 lbs.
2.2 lbs.
(215)
(320)
–
(320)
(500)
8.40 kg
1.00 kg
Cylinder with external adjustable guide
and double carriages
C/146100 cylinder ø 20 to 80 mm
M/146100 cylinder ø 16 to 80 mm
C/146100/MD – cylinder with external adjustable guide and double carriages(ø 20 mm)
M/146100/MD – cylinder with external adjustable guide and double carriages(ø 16 and 20 mm)
