Operating the VP-8x8TP Remotely via your Web Browser
28
9.2.2 Setting the AFV Mode
Audio channel In 1 is currently switched to Out 4.
To set the AFV mode:
1. Click the AFV button.
The following warning appears.

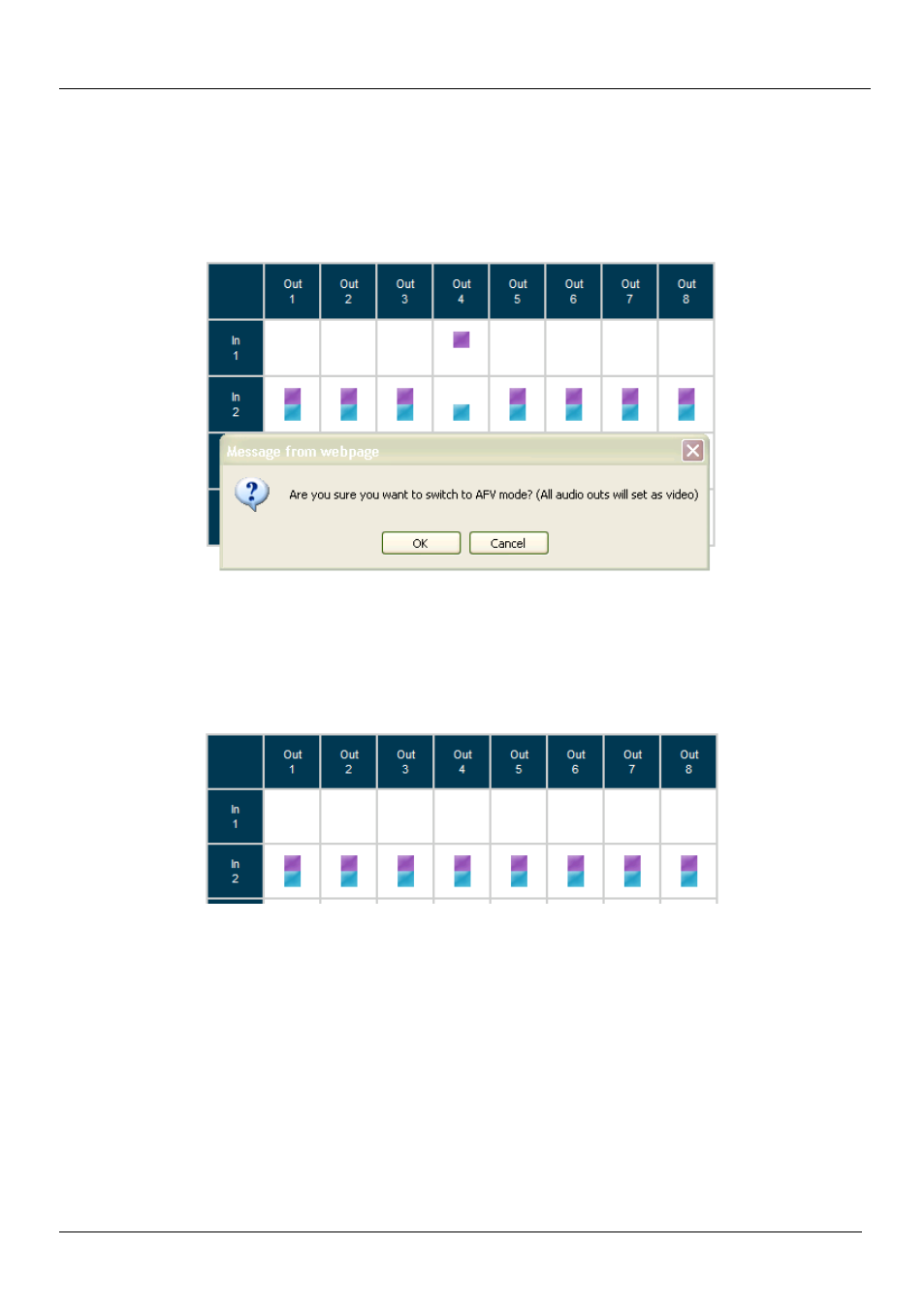

Figure 22: AFV Mode Warning
2. Click OK.
The AFV button outline becomes dark.
All audio channels are switched according to the corresponding video
channels. In this example, audio channel In 2 is now switched to Out 4.
Figure 23: AFV Mode Audio Channels Switched
All configuration changes now switch audio and video simultaneously.
9.2.3 Operating in the Offline Mode
By default, the unit operates in the At-Once mode, meaning that any switching
changes take effect immediately. In the Offline mode, changes only take effect
when you press the Take button.
To operate in the Offline mode:
1. Click the red Offline button.
The button outline becomes dark.
