Operating the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher
18
7.1.4 Disconnecting all Inputs from Outputs
To disconnect all inputs from outputs:
1. Press the ALL button.
The 7-segment display flashes.
2. Press the OFF button.
All inputs are disconnected from the outputs and display 0 on the 7-segment
display.
7.2 The 7-Segment Status Display Modes
This section includes:
• Status Display Immediately After Power is Turned On (see
Section 7.2.1 )
• Status Display During Normal Operation (see
Section 7.2.2 )
• Status Display During Audio Level Setting (see
Section 7.2.3 )

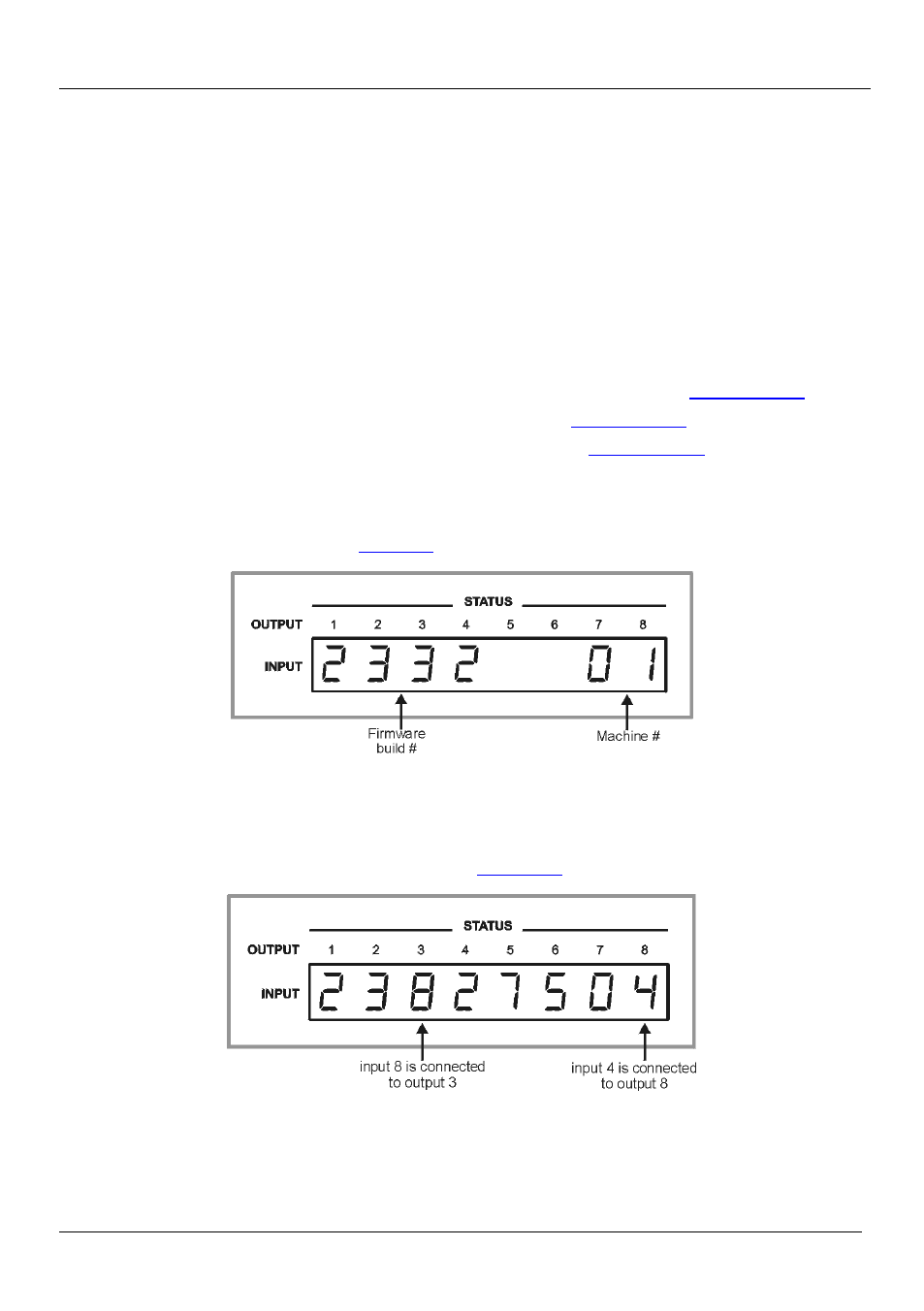

7.2.1 Status Display Immediately After Power is Turned On
Immediately after the unit is turned on, the status display shows the firmware build
and machine number (see
Figure 9 ).
Figure 9: Status Display Five Seconds After Turn On
7.2.2 Status Display During Normal Operation
During normal operation, the STATUS display shows which inputs are switched to
which outputs (an example is shown in
Figure 10 ).
Figure 10: Status Display During Normal Operation
In the VIDEO mode, the display shows the video signal configuration. In the
AUDIO mode, the display shows the audio signal configuration. In the AFV mode
