Kramer Electronics VP-8x8TP - Manual (Page 19)

Connecting and Configuring the VP-8x8TP 8x8 UXGA/Audio Matrix Switcher
15
15

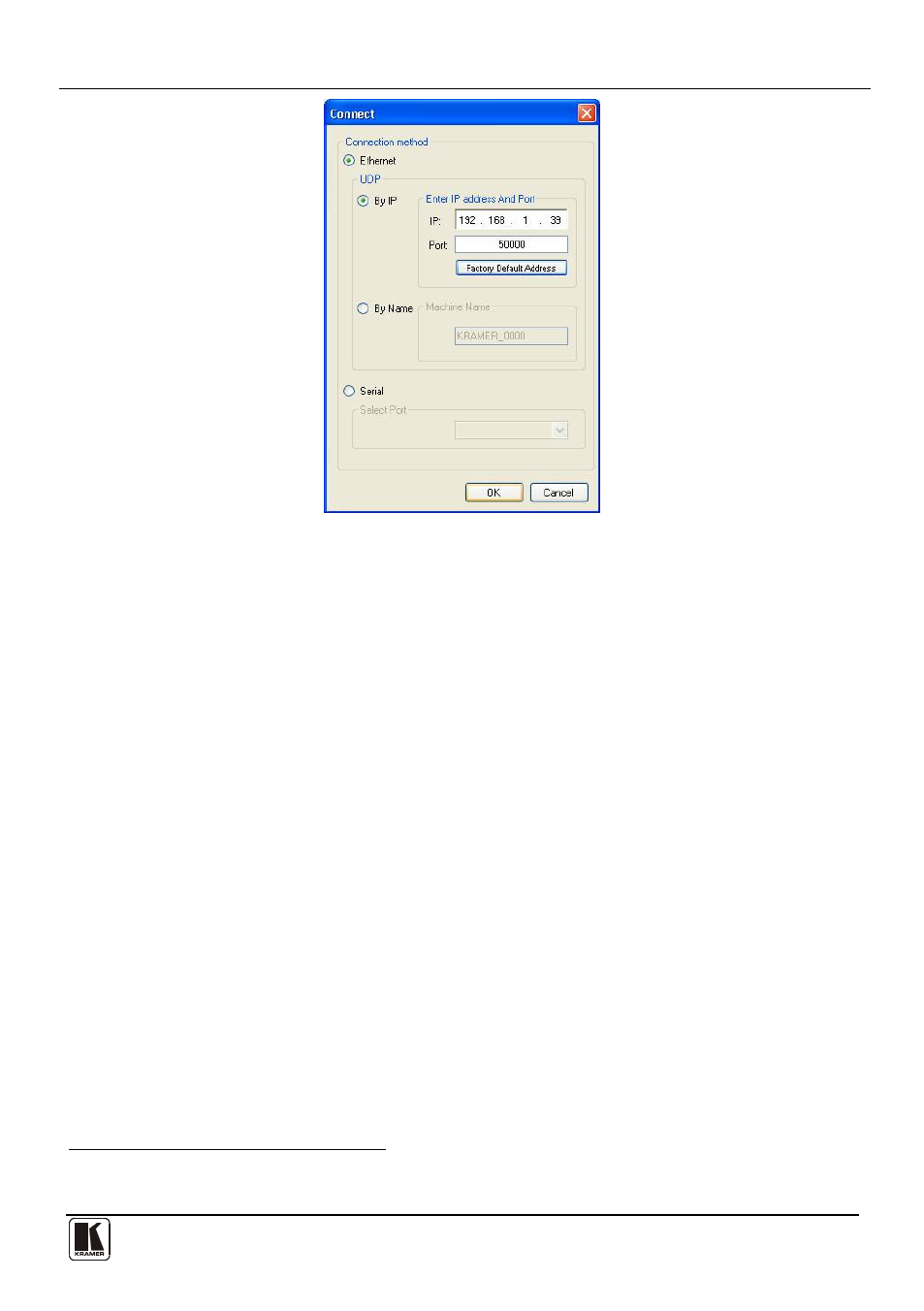

Figure 7: Connect Window
3. Select one of the following methods to connect to the Ethernet port of the
VP-8x8TP:
 Ethernet, if you are connected via an Ethernet cable. Enter the IP address 1
or the machine name
The default IP address is 192.168.1.39 and the default name for the unit is
KRAMER_XXXX
2
 Serial, if you are connected via a serial port. Select the COM port from the
Select Port drop-down list
4. Click OK.
The Device Properties window appears.
1 The default IP address is 192.168.1.39
2 The four digits are the last four digits of the machine’s serial number
