IOM Manual

HBH SERIES

Heat Controller, Inc.

39

WARNING! When the disconnect switch is closed, high

voltage is present in some areas of the electrical panel.
Exercise caution when working with energized equipment.

CAUTION! Verify that ALL water control valves are open and

allow water flow prior to engaging the compressor. Freezing

of the coax or water lines can permanently damage the heat

pump.

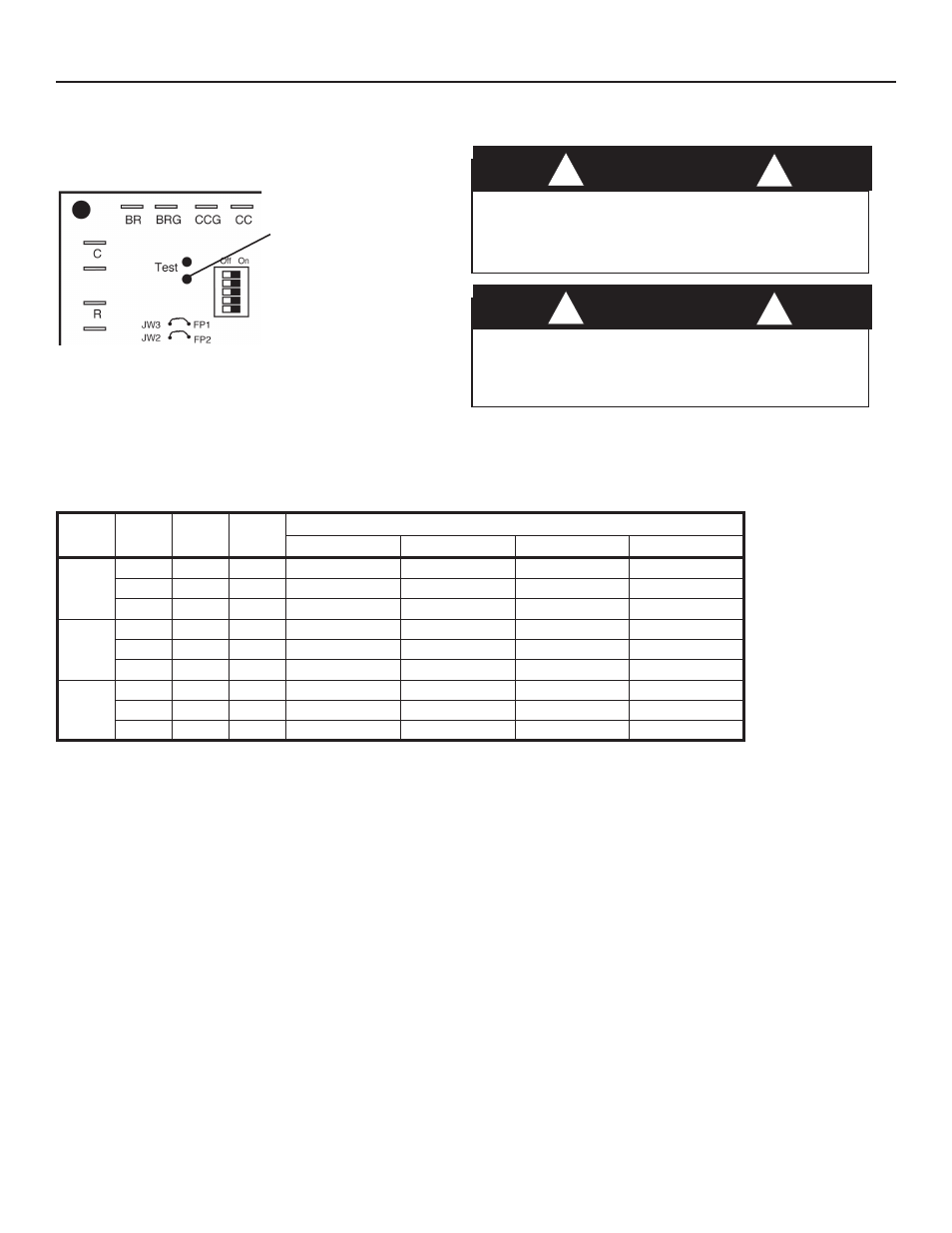

Figure 28: Test Mode Pins

WARNING!

CAUTION!

Table 10a: HB Coax Water Pressure Drop

UNIT OPERATING CONDITIONS

Model

U.S.

GPM

l/s

l/m

Pressure Drop, psi [kPa]*

30°F [-1°C]

50°F [10°C]

70°F [21°C]

90°F [32°C]

072

10

0.631

37.85

1.2 [8.3]

0.9 [6.2]

0.5 [3.4]

0.3 [2.1]

15

0.946

56.781

3.3 [22.8]

2.8 [19.08]

2.1 [14.5]

1.8 [12.4]

20

1.262

75.708

6.2 [42.7]

5.3 [36.5]

4.2 [29.0]

3.8 [26.2]

096

12

0.757

45.425

2.1 [14.5]

1.7 [11.7]

1.3 [9.0]

1.1 [7.6]

18

1.136

68.137

5.3 [36.5]

4.5 [31.0]

3.6 [24.8]

3.3 [22.8]

24

1.514

90.85

9.3 [64/1]

7.9 [54.5]

6.6 [45.5]

6.1 [42.1]

120

15

0.946

56.781

4 [27.6]

3.2 [22.1]

2.2 [15.2]

2 [13.8]

22.5

1.42

85.172

8.6 [59.3]

7.2 [49.6]

5.5 [37.9]

5.1 [35.2]

30

1.893

113.562

14.5 [100]

12.2 [83.4]

9.8 [67.6]

9.2 [63.4]

*Note: To convert kPa to millibars, multiply by 10.

Short test pins

together to enter Test

Mode and speed-up

timing and delays for

20 minutes.

Unit Start-Up Procedure

CAUTION!

!

!

WARNING!

!

!
