Heat Controller, Inc. HBH SERIES IOM Manual
2

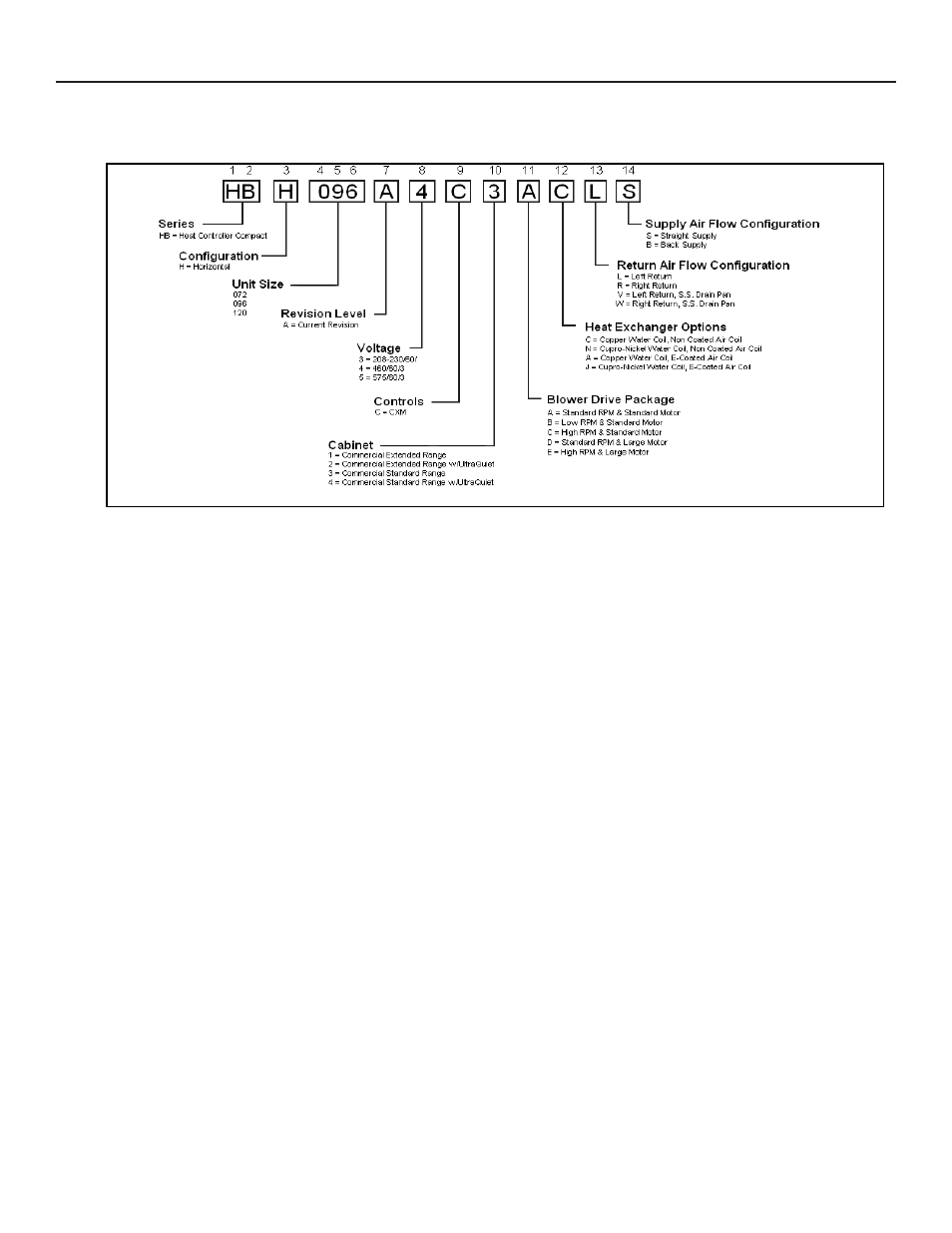

Model Nomenclature
Heat Controller OEM Price List
HBH Large Compact Horizontal Units
Entering Water Temperature Range: 20 - 120° F (-6. 7 - 48.9° C)
Horizontal Sizes 072 - 120
HBH Large Model Structure
Basic Unit Description:
The basic unit price includes sealed heat pump refrigerant circuit and • Reversing Valve - 4-way, pilot operated, solenoid activated in
air handler within cabinetry, filter, and a factory installed hanger kit on cooling.
horizontal units.
• Water to Refrigerant Coil - Tube-in-tube, convoluted copper inner
• Cabinetry - Compact design - galvanized steel construction - water tube.
FPT water connections, high and low voltage knockouts - filter
and filter brackets. All horizontal units have field convertible discharge • Refrigerant to Air Coil - Lanced aluminum fins on rifled copper
air patterns, no extra parts required. tubes.
• Standard Controls - CXM Controller, loss of charge switch, high • Blower Motor - Belt drive with adjustable sheave, single blower and
pressure switch, water coil low temperature cutout, lockout safety single blower motor.
circuit reset at thermostat or disconnect, LED fault indication,
five minute anti-short cycle, random start, high and low voltage • Application - Units can be applied in WLHP, GWHP or GLHP
protection, condensate overflow protection, dry contact for alarm. applications.
• Compressor - High efficiency scroll compressor - overload • Field Connections - For supply, return and condensate can be made
protected. on either side (plug opposite side). Condensate connection on end
opposite compressor end.
• Refrigerant Circuit - Dual refrigerant circuit. Thermostatic
expansion valve’s for refrigerant metering, copper tubing
interconnecting all components - sealed & tested non-ozone
depleting, HFC-410A refrigerant circuit with high and low-side
Schrader ports.
Page 15
3
R-410A refrigerant circuit with high and low-side
