Page 86 | AlliedWare™ OS How To Note: IGMP

Stopping snoopers from snooping non-IGMP messages > Example

Stopping snoopers from snooping non-IGMP
messages

Some networks include routers that have no interest in IGMP, but still generate multicast
messages by running protocols like OSPF. When a Snooper receives multicast messages from
such a router, the Snooper adds the router’s port to its All Groups port list. This means the
router is unnecessarily sent IGMP and multicast traffic. Using IGMP features to prevent the
excess traffic is particularly helpful when you cannot or do not want to control the traffic at
the router.

This example describes how to use AlliedWare’s advanced IGMP features to prevent this
behaviour, by limiting the ports that the Snooper adds to the All Groups list, or by stopping
particular types of traffic from adding ports to the All Groups list.

Example

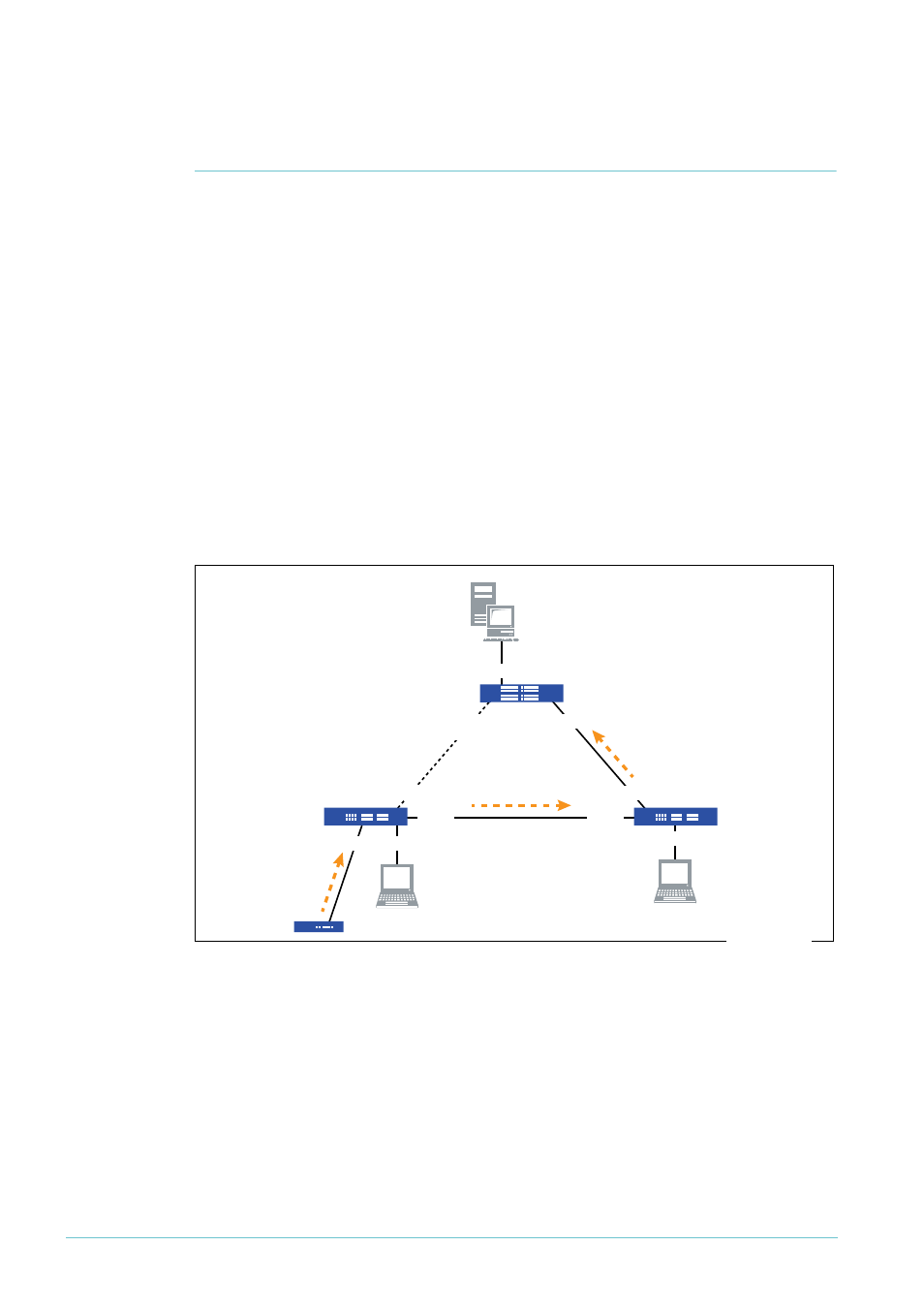

The example is based around a network that has a router running OSPF. The router is
connected to a LAN through a switch. The LAN is a single subnet with no OSPF routers
inside it. The network for this example uses the same loop as for

"IGMP snooping" on page 9

,

with a router attached to switch 2. The network is shown in the following figure.

We used an AR410 router, but the router configuration works on any AR400 or AR700
series router.

Each example in this section modifies the following base configuration.

Multicast Server

AT-8948

Switch 1:
Querier

Rapier 24i

Switch 2:

Snooper

Client 1

Rapier 24i

Switch 3:
Snooper

Client 2

port 1

port 2

port 3

port 25

port 25

port 26

port 26

port 50

(blocked by STP)

port 49

port 24

Router

OSPF

OSPF

OSPF

igmp-all-groups.eps
