Page 40 | AlliedWare™ OS How To Note: IGMP

IGMP throttling (limiting the number of streams for each subscriber) > Example

IGMP throttling (limiting the number of streams
for each subscriber)

IGMP throttling allows you to limit the number of streams that subscribers may access at a
given time, for example, to protect from bandwidth oversubscription. When the number of
multicast group memberships associated with a switch port reaches the configured limit, the
port can either deny further Membership Reports, or replace an existing membership with
the new group.

IGMP filtering and throttling can be applied separately or together. The switch applies the
filters first, then subjects any multicast group memberships passed by the filter to the limits
imposed by throttling.

IGMP Throttling is available in Software Version 2.7.5 or later.

Example

This example builds on

"IGMP filtering (controlling multicast distribution)" on page 35

and

uses the same network configuration as

"IGMP snooping" on page 9

. For convenience, the

diagram is reproduced below.

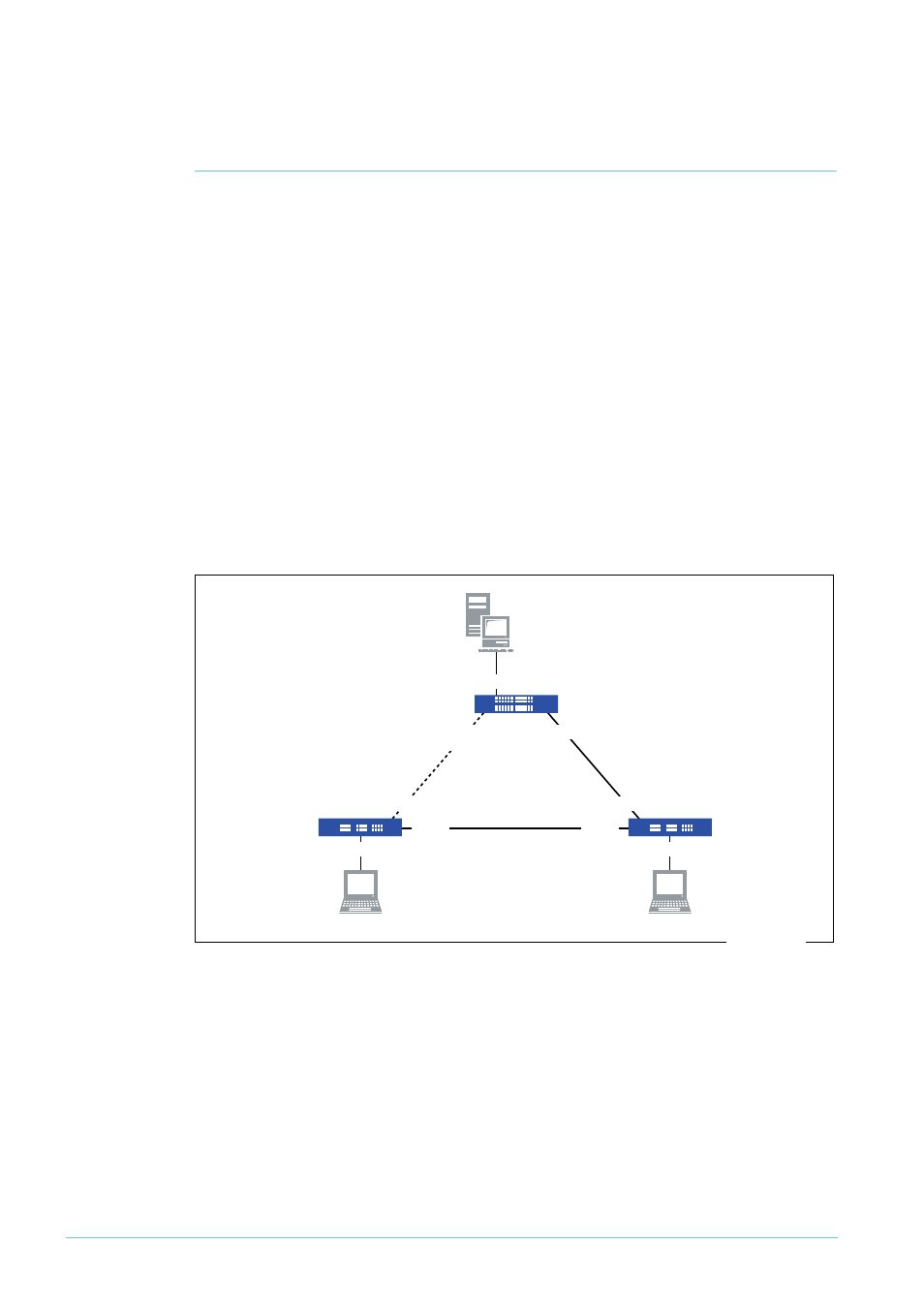

Multicast Server

AT-8948

Switch 1:
Querier

Rapier 24i

Switch 2:

Snooper

Client 1

Rapier 24i

Switch 3:
Snooper

Client 2

port 1

port 2

port 3

port 25

port 25

port 26

port 26

port 50

(blocked by STP)

port 49

igmp-snooper.eps
